AZ-AZK-Thrust Roller Bearing

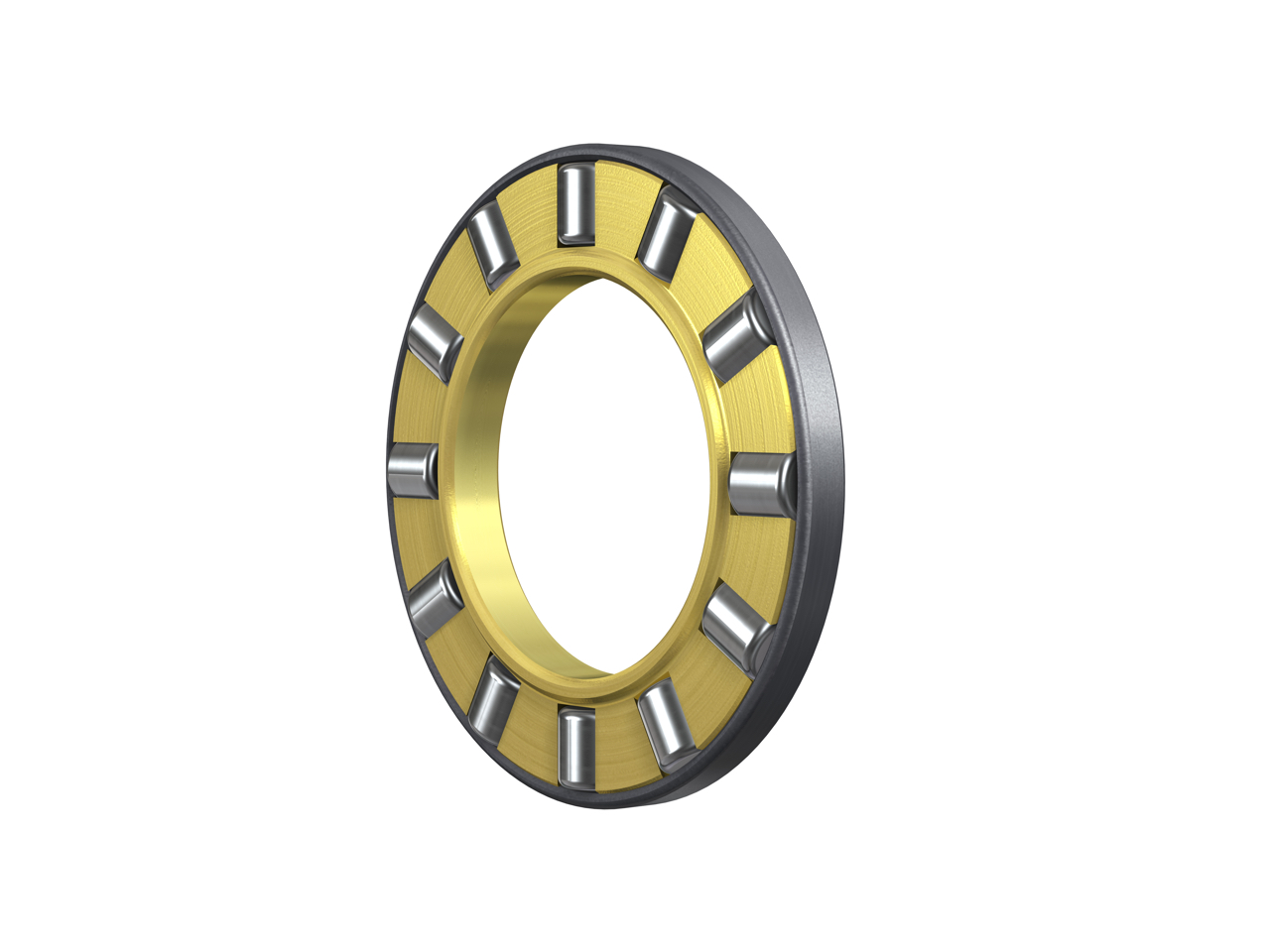

IKO Thrust Bearings are engineered with precisely made cages and rollers, resulting in products with high rigidity and exceptional load capacities that can be utilized effectively even in small spaces. The AZK series consists of the caged cylindrical rollers alone, while the complete AZ bearings combine the AZK cage and rollers with an inner ring (WS) and an outer ring (GS).

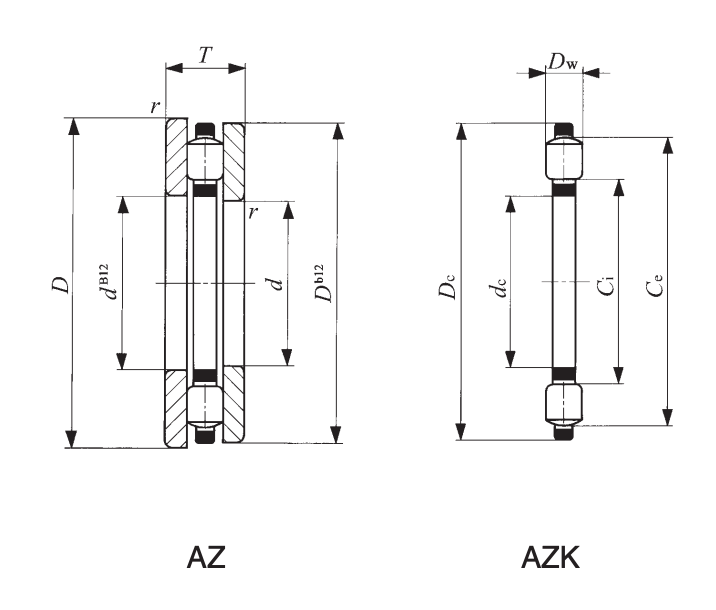

Description of the dimensions 2

Dimensions

Select Shaft dia. (mm) AZ Bearing No. Mass (g) AZK Bearing No. Mass (g) d (mm) D (mm) T (mm) dc (mm) Dc (mm) Dw (mm) B (mm) rs min (mm) C (N) C₀ (N) Speed (min⁻¹)
10 AZ 10249 24.6 AZK 10243.5 8.6 10 24 9 10.04 23.6 3.5 2.75 0.3 8 990 19 100 18 000
12 AZ 12269 26.5 AZK 12263.5 8.7 12 26 9 12.04 25.6 3.5 2.75 0.3 10 400 23 900 16 000
15 AZ 15289 28 AZK 15283.5 9.4 15 28 9 15.04 27.6 3.5 2.75 0.3 10 200 23 000 14 000
17 AZ 17309 30.5 AZK 17303.5 10.1 17 30 9 17.04 29.6 3.5 2.75 0.3 11 400 28 600 13 000
20 AZ 203510 45.5 AZK 20354.5 17.9 20 35 10 20.04 34.6 4.5 2.75 0.3 19 000 48 700 11 000
25 AZ 254211 70 AZK 25425 28 25 42 11 25.05 41.6 5 3 0.6 22 700 60 700 9 000
30 AZ 304711 79 AZK 30475 31 30 47 11 30.05 46.5 5 3 0.6 27 400 81 000 8 000
30 AZ 305216 160 AZK 30527.5 70 30 52 16 30.05 51.5 7.5 4.25 0.6 38 400 95 700 7 500
35 AZ 355212 99 AZK 35525 36 35 52 12 35.05 51.5 5 3.5 0.6 29 100 91 100 7 000
35 AZ 356218 260 AZK 35627.5 98 35 62 18 35.05 61.5 7.5 5.25 1 47 900 135 000 6 500
40 AZ 406013 139 AZK 40606 54 40 60 13 40.05 59.5 6 3.5 0.6 41 700 133 000 6 000
40 AZ 406819 310 AZK 40689 132 40 68 19 40.05 67.5 6 5 1 68 700 195 000 5 500
45 AZ 456514 169 AZK 45656 62 45 65 14 45.05 64.5 6 4 0.6 40 800 133 000 5 500
45 AZ 457320 360 AZK 45739 144 45 73 20 45.05 72.5 6 5.5 1 75 700 227 000 5 000
50 AZ 507014 185 AZK 50706 68 50 70 14 50.05 69.5 6 4 0.6 43 300 148 000 5 000
50 AZ 507822 430 AZK 507811 194 50 78 22 50.05 77.5 6 5.5 1 84 300 232 000 4 500
55 AZ 557816 275 AZK 55786 89 55 78 16 55.05 77.5 6 5 1 51 700 192 000 4 500
55 AZ 559025 725 AZK 559011 275 55 90 25 55.05 89.5 6 7 1 108 000 300 000 4 000
60 AZ 608517 345 AZK 60857.5 135 60 85 17 60.05 84.5 7.5 4.75 1 64 600 224 000 4 000
60 AZ 609526 770 AZK 609511 290 60 95 26 60.05 94.5 11 7.5 1 106 000 332 000 4 000
60 AZ 6013026 2 090 AZK 6013010 790 60 130 26 60.05 129.5 10 8 1.5 158 000 634 000 3 000
65 AZ 659018 380 AZK 65907.5 132 65 90 17 65.05 89.5 7.5 5.25 1 68 300 247 000 4 000
65 AZ 6510027 860 AZK 6510011 310 65 100 27 65.05 99.5 11 8 1 116 000 379 000 3 500
70 AZ 709518 420 AZK 70957.5 156 70 95 18 70.05 94.5 7.5 5.25 1 72 000 269 000 3 500
70 AZ 7010527 905 AZK 7010511 325 70 105 27 70.05 104.5 11 8 1 114 000 379 000 3 000
70 AZ 7014026 2 250 AZK 7014010 890 70 140 26 70.05 139.5 10 8 1.1 169 000 713 000 3 000
75 AZ 7510019 465 AZK 751007.5 159 75 100 19 75.05 99.5 7.5 5.75 1 71 100 263 000 3 500
75 AZ 7511027 960 AZK 7511011 340 75 110 27 75.05 109.5 11 8 1 123 000 427 000 3 000
80 AZ 8010519 495 AZK 801057.5 171 80 105 19 80.05 104.5 7.5 5.75 1 74 500 292 000 3 000
80 AZ 8011528 1 060 AZK 8011511 370 80 115 28 80.05 114.5 11 8.5 1 122 000 427 000 2 500
80 AZ 8015026 2 500 AZK 8015010 920 80 150 26 80.05 149.5 10 8 1.5 180 000 792 000 2 500
85 AZ 8511019 530 AZK 851107.5 190 85 110 19 85.05 109.5 7.5 5.75 1 77 800 314 000 3 000
85 AZ 8512531 1 460 AZK 8512512 510 85 125 31 85.05 124.5 12 9.5 1 145 000 513 000 3 000
90 AZ 9012022 790 AZK 901209 290 90 120 22 90.05 119.5 9 6.5 1 99 700 390 000 3 000
90 AZ 9013535 2 040 AZK 9013514 750 90 135 35 90.05 134.5 14 10.5 1.1 181 000 626 000 2 500
90 AZ 9016026 2 710 AZK 9016010 1 000 90 160 26 90.05 159.5 10 8 1.5 189 000 871 000 2 500
100 AZ 10013525 1 290 AZK 10013511 490 100 135 25 100.05 134.5 11 7 1 136 000 522 000 2 500
100 AZ 10015038 2 720 AZK 10015015 980 100 150 38 100.05 149.5 15 11.5 1.1 219 000 796 000 2 500
100 AZ 10019039 5 960 AZK 10019015 2 120 100 190 39 100.1 189.3 15 12 1.5 333 000 1 420 000 2 000
110 AZ 11014525 1 350 AZK 11014511 590 110 145 25 110.1 144.5 11 7 1 142 000 569 000 2 500
110 AZ 11016040 3 220 AZK 11016017 1 320 110 160 40 110.1 159.5 17 11.5 1.1 282 000 1 030 000 2 000
110 AZ 11020039 6 400 AZK 11020015 2 280 110 200 39 110.1 199.3 15 12 2 388 000 1 770 000 2 000
120 AZ 12015525 1 450 AZK 12015511 630 120 155 25 120.1 154.5 11 7 1 149 000 613 000 2 000
120 AZ 12017542 4 020 AZK 12017518 1 640 120 175 42 120.1 174.5 18 12 1.1 313 000 1 160 000 2 000
120 AZ 12022039 7 730 AZK 12022015 2 730 120 220 39 120.1 219.5 12 12 2.1 415 000 1 980 000 1 800
130 AZ 13017030 2 180 AZK 13017012 860 130 170 30 130.1 169.5 12 9 1.1 176 000 741 000 2 000
130 AZ 13018542 4 300 AZK 13018518 1 760 130 185 42 130.1 184.5 18 12 1.5 333 000 1 290 000 1 900
130 AZ 13023039 8 240 AZK 13023015 2 940 130 230 39 130.1 229 15 12 2.1 440 000 2 180 000 1 700
140 AZ 14018031 2410 AZK 14018012 920 140 180 31 140.1 179.5 12 9.5 1 184000 798000 1900
140 AZ 14019542 4560 AZK 14019518 1860 140 195 42 140.1 194.5 18 12 1.5 353000 1420000 1800
140 AZ 14024039 8680 AZK 14024015 3100 140 240 39 140.1 239 15 12 2.1 435000 2180000 1600
150 AZ 15019031 2560 AZK 15019012 980 150 190 31 150.1 189.5 12 9.5 1 181000 798000 1800
150 AZ 15020542 4840 AZK 15020518 1980 150 205 42 150.1 204.5 18 12 1.5 349000 1420000 1700
150 AZ 15025039 9140 AZK 15025015 3260 150 250 39 150.1 249 15 12 2.1 459000 2380000 1500
160 AZ 16020031 2710 AZK 16020012 1030 160 200 31 160.1 199.5 12 9.5 1 188000 855000 1700
160 AZ 16027039 10800 AZK 16027015 3840 160 270 39 160.1 269 15 12 3 519000 2850000 1400
170 AZ 17023045 6220 AZK 17023019 2420 170 230 45 170.1 229 19 13 1.5 403000 1730000 1500
170 AZ 17028039 11300 AZK 17028015 4020 170 280 39 170.1 279 15 12 3 543000 3070000 1300
180 AZ 18024039 6540 AZK 18024019 2540 180 240 39 180.1 239 19 13 1.5 426000 1870000 1400
180 AZ 18031039 12000 AZK 18031015 5200 180 310 39 180.1 308 15 12 3 619000 3710000 1200
190 AZ 19025548 8060 AZK 19025520 3100 190 255 48 190.1 254 20 14 2 470000 2080000 1300
190 AZ 19032039 15000 AZK 19032015 5280 190 320 39 190.1 318 15 12 4 647000 3980000 1200
200 AZ 20026548 8430 AZK 20026520 3250 200 265 48 200.15 264 20 14 2 465000 2080000 1300
200 AZ 20034039 10200 AZK 20034015 6120 200 340 39 200.15 338 15 12 4 710000 4580000 1100
220 AZ 22029050 10400 AZK 22029022 4280 220 290 50 220.15 289 22 14 2 557000 2530000 1300
220 AZ 22036039 22300 AZK 22036020 8000 220 360 39 220.15 358 20 16 4 943000 5520000 1000
240 AZ 24031554 13600 AZK 24031524 5520 240 315 54 240.15 314 24 15 2 695000 3250000 1100
240 AZ 24038052 26500 AZK 24038020 9440 240 380 52 240.15 378 20 16 4 977000 5910000 1000
260 AZ 26034055 15400 AZK 26034025 6600 260 340 55 260.15 339 25 15 2.1 739000 3510000 1000
260 AZ 26042039 51600 AZK 26042030 18200 260 420 39 260.15 418 30 25 5 1430000 7490000 900
280 AZ 28044080 54600 AZK 28044030 19200 280 440 80 280.15 438 30 25 5 1420000 7490000 800
