LM L Linear Bush

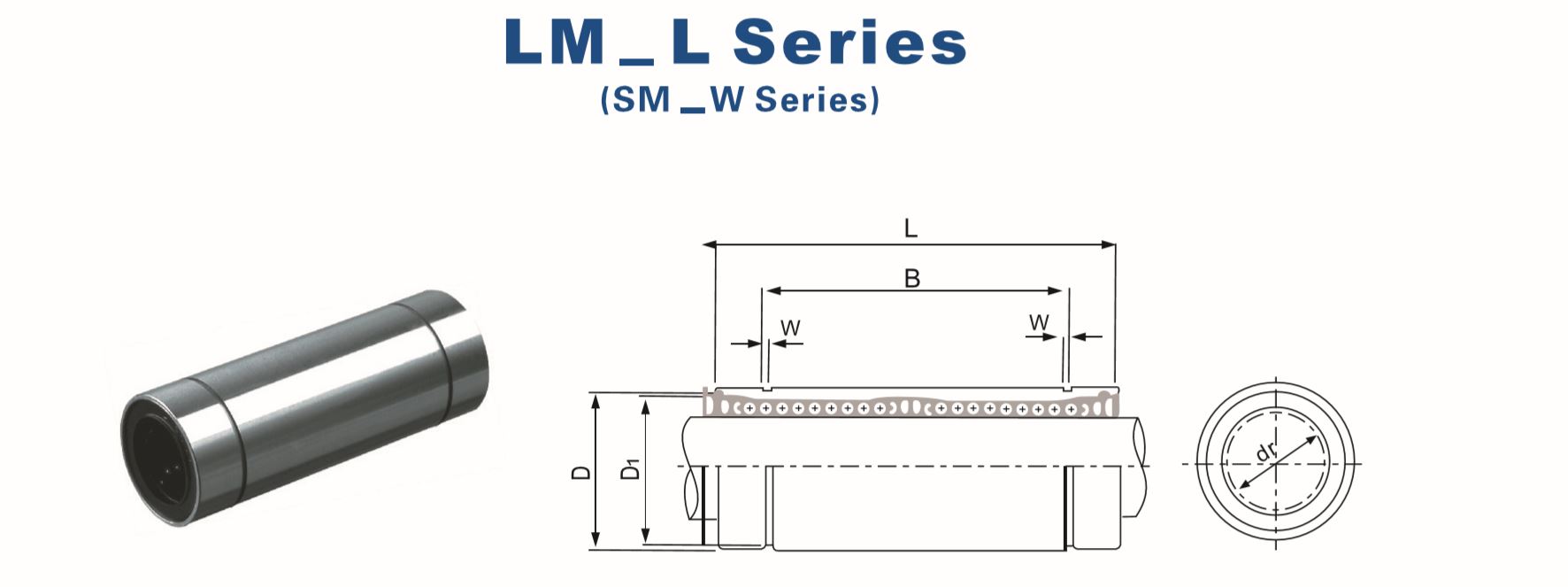

Description of the dimensions 1

Seal Type	dr (mm)	D (mm)	L (mm)	B (mm)	W (mm)	DI (mm)	Basic Load Rating C N	Basic Load Rating Co N	Weight (g)
LM6LUU	6	12	35	27	1.1	11.5	323	530	16
LM8 LUU	8	15	45	35	1.1	14.3	431	784	31
LM10LUU	10	19	55	44	1.3	18	588	1100	62
LM12LUU	12	21	57	46	1.3	20	813	1570	80
LM13LUU	13	23	61	46	1.3	22	813	1570	90
LM16LUU	16	28	70	53	1.6	27	1230	2350	145
LM20LUU	20	32	80	61	1.6	30.5	1400	2740	180
LM25LUU	25	40	112	82	1.85	38	1560	3140	440
LM30LUU	30	45	123	89	1.85	43	2490	5490	580
LM35LUU	35	52	135	99	2.1	49	2650	6270	795
LM40LUU	40	60	151	121	2.1	57	3430	8040	1170
LM5OLUU	50	80	192	148	2.6	76.5	6080	15900	3100
LM60LUU	60	90	209	170	3.15	86.5	7550	20000	3500
