LMF-KC

The KOLMB LMF-KC Series Linear Motion Ball Bearing is a high-performance bearing element designed for translating motion, providing precision and reliability in linear guidance systems. As an essential component in modern machinery, the LMF-KC series enables unlimited backward and forward linear movement with minimal frictional resistance.

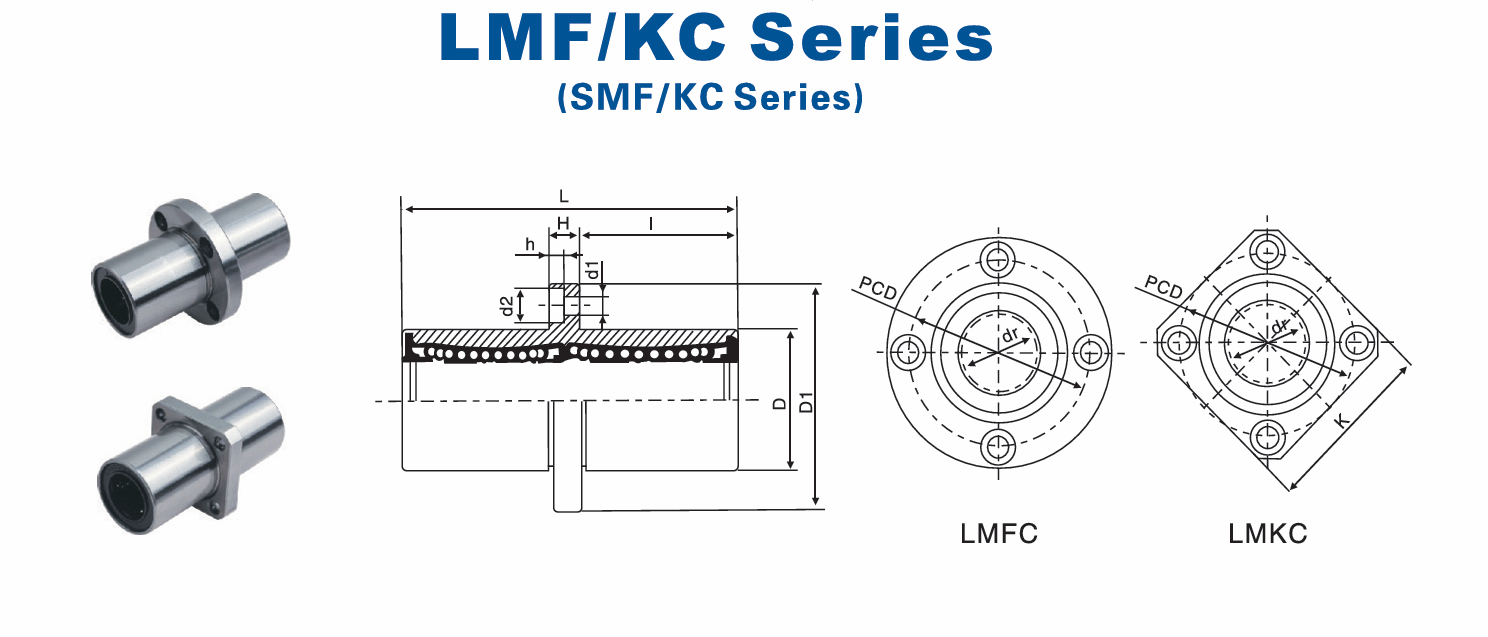

Description of the dimensions 1

Dimensions

Select Part No. Seal Type Ball Circuit dr (mm) D (mm) L (mm) I (mm) D1 (mm) K (mm) H (mm) PCD (mm) d_1 x d_2 x h (mm) Eccentricity Basic Load Rating C N Basic Load Rating Co N Weight (g)
LMFC6UU LMKC6UU 4 6 12 35 15 28 22 5 20 3.5x6x3.1 15 323 529 31
LMFC8UU LMKC8UU 4 8 15 45 20 32 25 5 24 3.5x6x3.1 431 784 51
*LMFC10UU *LMKC10UU 4 10 19 55 24.5 40 30 6 29 4.5x7.5x4.1 588 1100 98
*LMFC12UU *LMKC12UU 4 12 21 57 25.5 42 32 6 32 4.5x7.5x4.1 813 1570 110
LMFC13UU LMKC13UU 4 13 23 61 27.5 43 34 6 33 4.5x7.5x4.1 813 1570 130
LMFC16UU LMKC16UU 5 16 28 70 32 48 37 6 38 4.5x7.5x4.1 1230 2350 190
*LMFC20UU *LMKC20UU 5 20 32 80 36 54 42 8 43 5.5x9x5.1 20 1400 2740 260
*LMFC25UU *LMKC25UU 6 25 40 112 52 62 50 8 51 5.5x9x5.1 1560 3140 540
*LMFC30UU *LMKC30UU 6 30 45 123 56.5 74 58 10 60 6.6x11x6.1 2490 5490 680
LMFC35UU LMKC35UU 6 35 52 135 62.5 82 64 10 67 6.6x11x6.1 25 2650 6270 1020
*LMFC40UU *LMKC40UU 6 40 60 151 69 96 75 13 78 9x14x8.1 3430 8040 1570
LMFC50UU LMKC50UU 6 50 80 192 89.5 116 92 13 98 9x14x8.1 6080 15900 3600
LMFC60UU LMKC60UU 6 60 90 209 95.5 134 106 18 112 11x17x11.1 30 7550 20000 4500
