LMF-L LMK-L LMH-L Flanged Linear Motion Ball Bearing

LMF-L, LMK-L, LMH-L Series Flanged Linear Motion Ball Bearings

The KOLMB LMF-L, LMK-L, and LMH-L Series Flanged Linear Motion Ball Bearings are high-precision components designed to achieve smooth, friction-free linear movement along cylindrical shafts. As an Authorised Distributor for KOLMB, V.M Traders offers the full long-type flanged series, engineered for demanding industrial and automation applications across India.

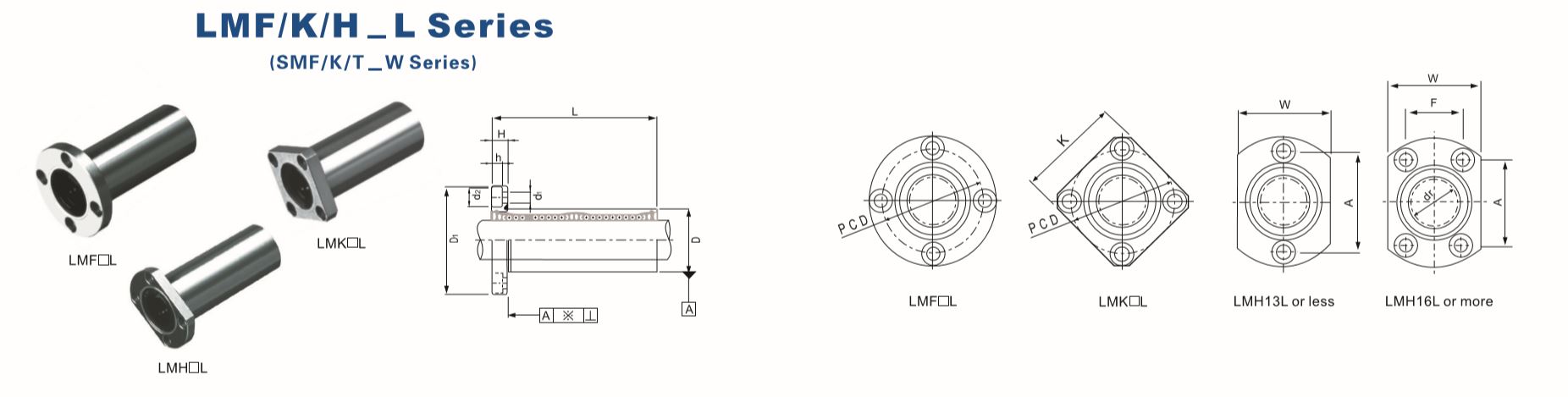

Description of the dimensions 1

Dimensions

Select Seal Type dr (mm) D (mm) L (mm) D1 (mm) H (mm) PCD (mm) K (mm) W (mm) A (mm) F (mm) dlxd2xh (mm) Basic Load Rating C Co N N Basic Load Rating C Co N N Weight (g)
LMF6LUU LMK6LUU LMH6LUU 6 12 35 28 5 20 22 18 20 - 3.5x6x3.1 323 529 31
LMF8LUU LMK8LUU LMH8LUU 8 15 45 32 5 24 25 21 24 - 3.5x6x3.1 431 784 51
LMF1OLUU LMK10LUU LMH10LUU 10 19 55 40 6 29 30 25 29 - 4.5x7.5x4.1 588 1100 98
LMF12LUU LMK12LUU LMH12LUU 12 21 57 42 6 32 32 27 32 - 4.5x7.5x4.1 813 1570 110
LMF13LUU LMK13LUU LMH13LUU 13 23 61 43 6 33 34 29 33 - 4.5x7.5x4.1 813 1570 130
LMF16LUU LMK16LUU LMH16LUU 16 28 70 48 6 38 37 34 31 22 4.5x7.5x4.1 1230 2350 190
LMF20LUU LMK20LUU LMH20LUU 20 32 80 54 8 43 42 38 36 24 5.5x9x5.1 1400 2740 260
LMF25LUU LMK25LUU LMH25LUU 25 40 112 62 8 51 50 46 40 32 5.5x9x5.1 1560 3140 540
LMF30LUU LMK3OLUU LMH30LUU 30 45 123 74 10 60 58 51 49 35 6.6x11x6.1 2490 5490 680
LMF35LUU LMK35LUU LMH35LUU 35 52 135 82 10 67 64 60 55 38 6.6x11x6.1 2650 6270 1020
LMF40LUU LMK40LUU - 40 60 151 96 13 78 75 - - - 9x14x8.1 3430 8040 1570
LMF50LUU LMK50LUU - 50 80 192 116 13 98 92 - - - 9x14x8.1 6080 15900 3600
LMF60LUU LMK60LUU - 60 90 209 134 18 112 106 - - - 11x17x11.1 7550 20000 4500
