LMFP-LMKP Flanged Linear Motion Ball Bearing

The KOLMB LMFP/LMKP Flanged Linear Motion Ball Bearings are highly efficient linear motion systems engineered to provide smooth, low-friction, and precise movement along cylindrical shafts. These bearings are a low-cost, high-performance solution for unlimited linear travel.

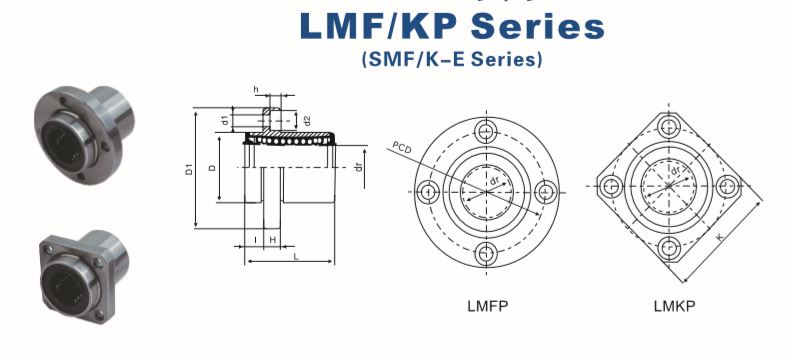

Description of the dimensions 1

Dimensions

Select Seal Type Ball Circuit dr (mm) D (mm) L (mm) I (mm) DI (mm) K (mm) H (mm) PCD (mm) dlxd2x h (mm) Basic Load Rating C N Basic Load Rating Co N Weight (g)
LMFP6UU LMKP6UU 4 6 12 19 5 28 22 5 20 3.5x6x3.1 206 265 24
LMFP8UU LMKP8UU 4 8 15 24 5 32 25 5 24 3.5x6x3.1 274 392 37
LMFP10UU LMKP10UU 4 10 19 29 6 40 30 6 29 4.5x7.5x4.1 372 549 72
LMFP12UU LMKP12UU 4 12 21 30 6 42 32 6 32 4.5x7.5x4.1 510 784 76
LMFP13UU LMKP13UU 4 13 23 32 6 43 34 6 33 4.5x7.5x4.1 510 784 88
LMFP16UU LMKP16UU 5 16 28 37 6 48 37 6 38 4.5x7.5x4.1 774 1180 120
LMFP20UU LMKP20UU 5 20 32 42 8 54 42 8 43 5.5x9x5.1 882 1370 180
LMFP25UU LMKP25UU 6 25 40 59 8 62 50 8 51 5.5x9x5.1 980 1570 340
LMFP30UU LMKP30UU 6 30 45 64 10 74 58 10 60 6.6x11x6.1 1570 2740 470
LMFP35UU LMKP35UU 6 35 52 70 10 82 64 10 67 6.6x11x6.1 1670 3140 650
LMFP40UU LMKP40UU 6 40 60 80 13 96 75 13 78 9x14x8.1 2160 4020 1060
LMFP50UU LMKP50UU 6 50 80 100 13 116 92 13 98 9x14x8.1 3820 7940 2200
LMFP60UU LMKP60UU 6 60 90 110 18 134 106 18 122 11x17x11.1 4700 10000 3000
