LMHC

The LMHC is a Linear Motion Ball Bearing series featuring an intermediate elliptical flange on the outer ring. This design is engineered for precise mounting and rigidity, often used in applications requiring a smaller radial space than square flange types.

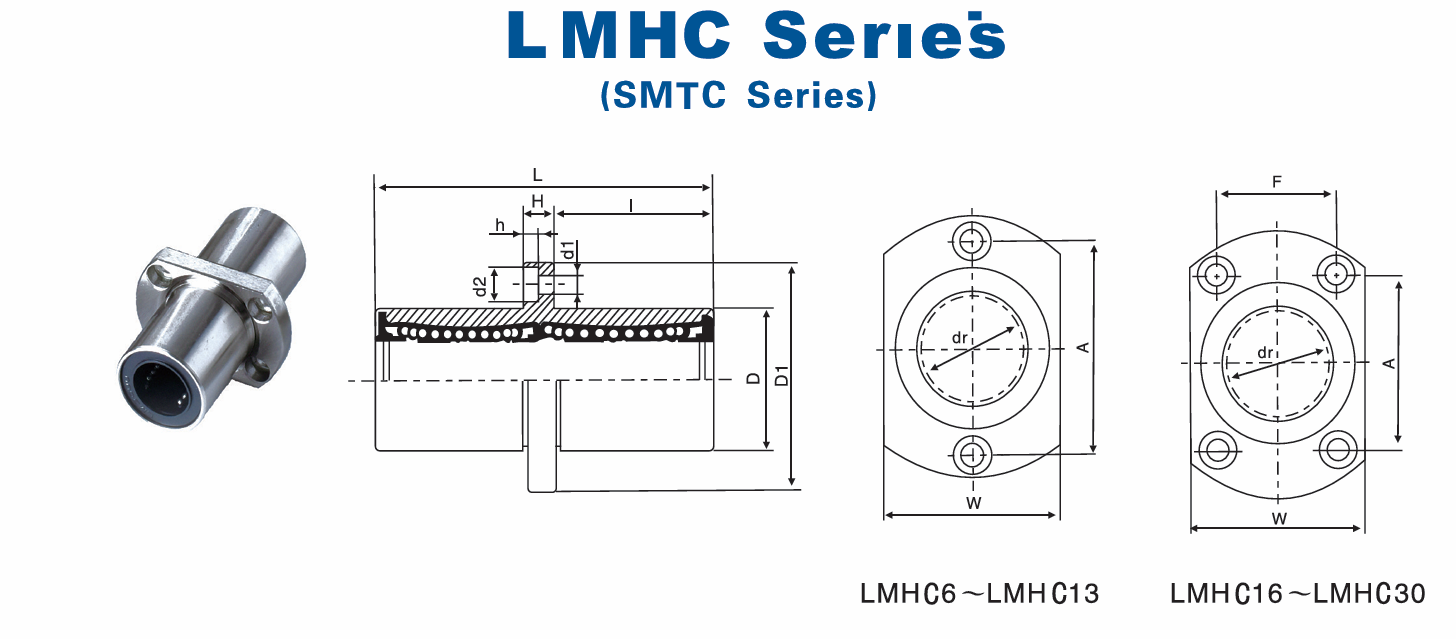

Description of the dimensions 1

Dimensions

Select Part No. Ball Circuit dr (mm) D (mm) L (mm) I (mm) D1 (mm) W (mm) H (mm) A (mm) F (mm) d1xd2xh (mm) Eccentricity Basic Load Rating C N Basic Load Rating Co N Weight (g)
LMHC6UU 4 6 12 35 15 28 18 5 20 - 3.5x6x3.1 15 323 529 28
LMHC8UU 4 8 15 45 20 32 21 5 24 - 3.5x6x3.1 431 784 47
LMHC10UU 4 10 19 55 24.5 40 25 6 29 - 4.5x7.5x4.1 588 1100 90
LMHC12UU 4 12 21 58 25.5 42 27 6 32 - 4.5x7.5x4.1 813 1570 102
LMHC13UU 4 13 23 61 27.5 43 29 6 33 - 4.5x7.5x4.1 813 1570 123
LMHC16UU 5 16 28 70 32 48 34 6 31 22 4.5x7.5x4.1 1230 2350 182
LMHC20UU 5 20 32 80 36 54 38 8 36 24 5.5x9x5.1 20 1400 2740 247
LMHC25UU 6 25 40 112 52 62 46 8 40 32 5.5x9x5.1 1560 3140 525
LMHC30UU 6 30 45 123 56.5 74 51 10 49 35 6.6x11x6.1 2490 5490 645
