LMHP Flanged Linear Motion Ball Bearing

The KOLMB LMHP Series Flanged Linear Motion Ball Bearing is a precision linear bushing designed to provide high-accuracy, low-friction linear movement when paired with a cylindrical shaft. It is characterized by its Pilot Flange (typically an oval or elliptical shape) which allows for easy, direct mounting to the machine housing, ensuring high positional accuracy and rigidity.

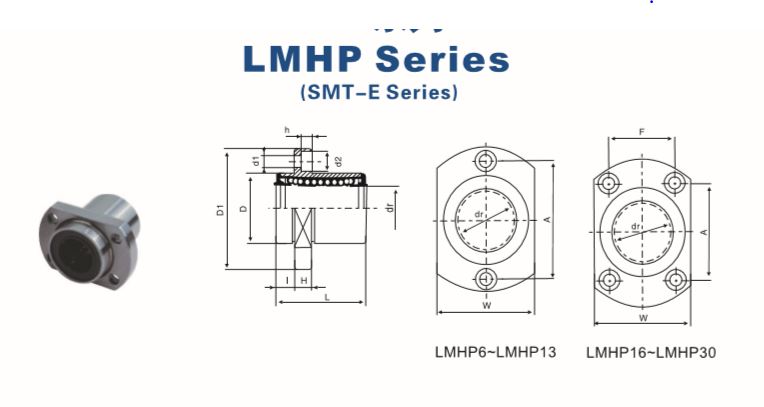

Description of the dimensions 1

Dimensions

Select Seal Type dr (mm) D (mm) L (mm) I (mm) DI (mm) W (mm) H (mm) A (mm) F (mm) Dlxd2xh (mm) Basic Load Rating C N Basic Load Rating Co N Weight (g)
LMHP6UU 6 12 19 5 28 18 5 20 - 3.5x6x3.1 206 265 21
LMHP8UU 8 15 24 5 32 21 5 24 - 3.5x6x3.1 274 392 33
*LMHP10UU 10 19 29 6 40 25 6 29 - 4.5x7.5x4.1 372 549 64
*LMHP12UU 12 21 30 6 42 27 6 32 - 4.5x7.5x4.1 510 784 68
LMHP13UU 13 23 32 6 43 29 6 33 - 4.5x7.5x4.1 510 784 81
*LMHP16UU 16 28 37 6 48 34 6 31 22 4.5x7.5x4.1 774 1180 112
*LMHP20UU 20 32 42 8 54 38 8 36 24 5.5x9x5.1 882 1370 167
*LMHP25UU 25 40 59 8 62 46 8 40 32 5.5x9x5.1 980 1570 325
*LMHP30UU 30 45 64 10 74 51 10 49 35 6.6x11x6.1 1570 2740 388
