SC SLIDE UNIT

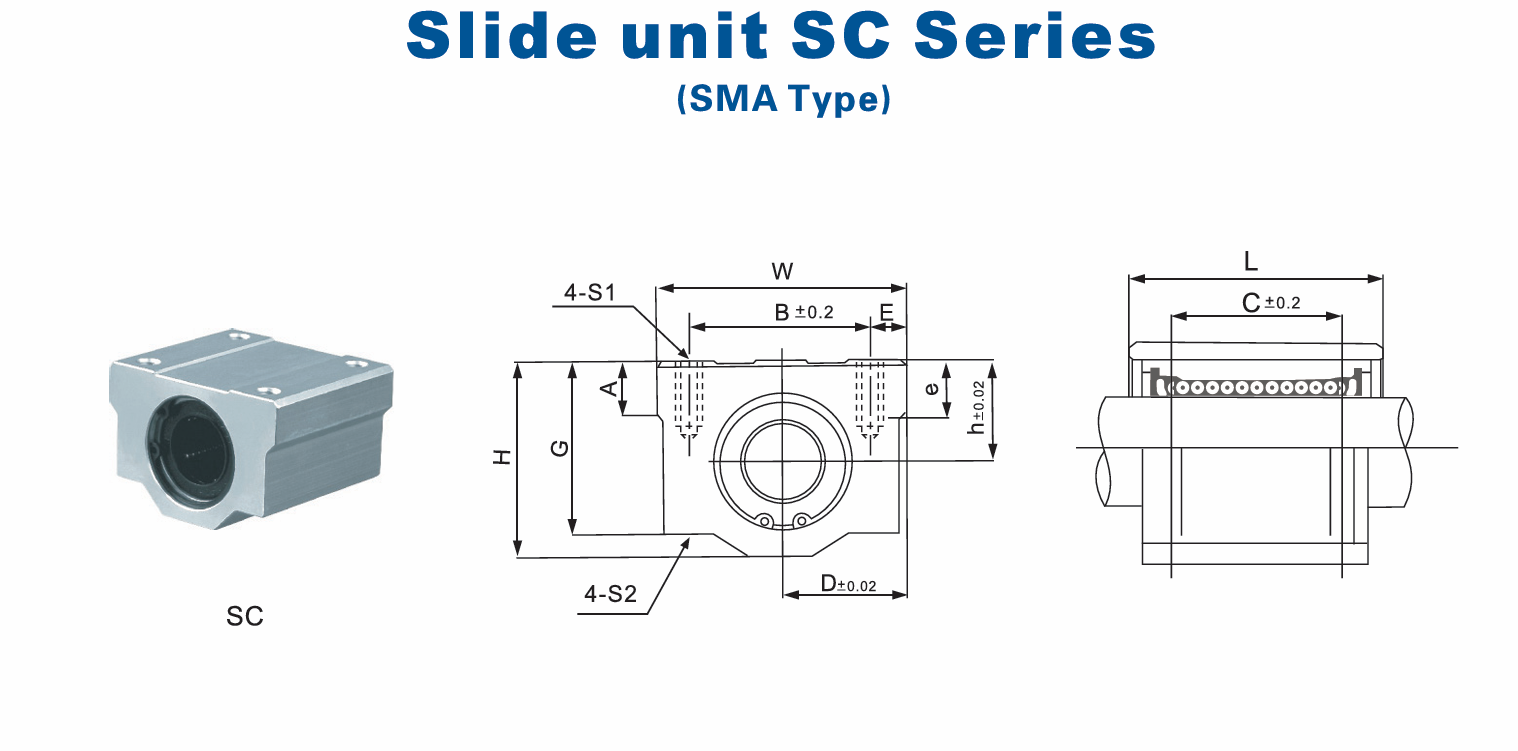

Description of the dimensions 1

Seal type	Weight (g)	h	D	W	H	G	A	B	E	S1xe	S2	C	L	Basic Load Rating C kgf	Basic Load Rating Co kgf
SC6UU	34	9	15	30	18	15	6	20	5	M4x8	M3	15	25	20	27
SC8UU	56	11	17	34	22	18	6	24	5	M4x8	M3	18	30	27	41
SC10UU	90	13	20	40	26	21	8	28	6	M5x12	M4	21	35	38	55
SC12UU	112	15	21	42	29	25	8	30.5	5.75	M5x12	M4	26	36	42	60
SC13UU	123	15	22	44	30	26	8	33	5.5	M5x12	M4	26	39	51	78
SC16UU	189	19	25	50	38.5	35	9	36	7	M5x12	M4	34	44	78	119
SC20UU	237	21	27	54	42	36	11	40	7	M6x12	M5	40	50	88	140
SC25UU	555	26	38	76	51.5	41	12	54	11	M8x18	M6	50	67	100	159
SC30UU	685	30	39	78	59.5	49	15	58	10	M8x18	M6	58	72	159	279
SC35UU	1100	34	45	90	68	54	18	70	10	M8x18	M6	60	80	169	319
SC40UU	1600	40	51	102	78	62	20	80	11	M10x25	M8	60	90	219	409
SC50UU	3350	52	61	122	102	80	25	100	11	M10x25	M8	80	110	389	808
