SC_L SLIDE UNIT

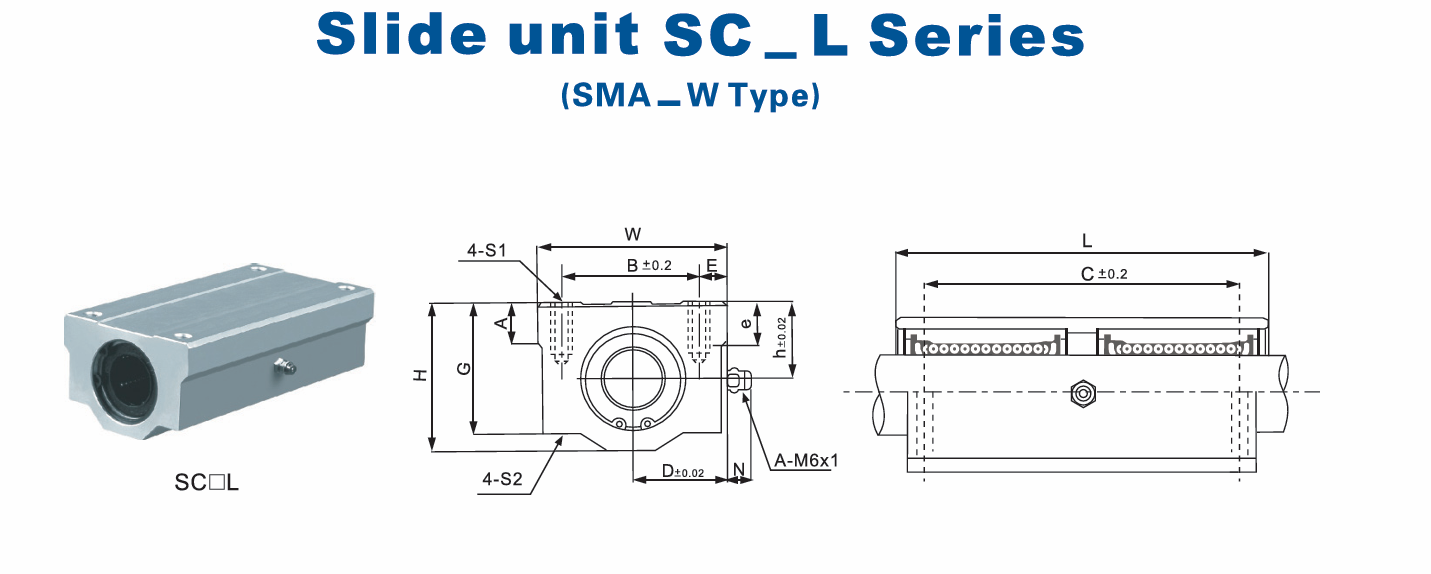

Description of the dimensions 1

SEAL TYPE	Weight (g)	h	D	W	H	G	A	B	E	S1xe	S2	C	L	Basic Load Rating C kgf	Basic Load Rating Co kgf
SC8LUU	94	11	17	34	22	18	6	24	5	M4x8	M3	42	58	42	82
SC10LUU	147	13	20	40	26	21	8	28	6	M5x12	M4	46	68	60	110
SC12LUU	220	15	21	42	29	25	8	30.5	5.75	M5x12	M4	50	70	66	110
SC13LUU	245	15	22	44	30	26	8	33	5.5	M5x12	M4	50	75	82	157
SC16LUU	376	19	25	50	38.5	35	9	36	7	M5x12	M4	60	85	125	238
SC20LUU	476	21	27	54	42	36	11	40	7	M6x12	M5	70	96	140	280
SC25LUU	1115	26	38	76	51.5	41	12	54	11	M8x18	M6	100	130	159	318
SC30LUU	1375	30	39	78	59.5	49	15	58	10	M8x18	M6	110	140	254	559
SC35LUU	2200	34	45	90	68	54	18	70	10	M8x18	M6	120	155	270	638
SC40LUU	3200	40	51	102	78	62	20	80	11	M10x25	M8	140	175	350	818
SC50LUU	6720	52	61	122	102	80	25	100	11	M10x25	M8	160	215	623	1618
