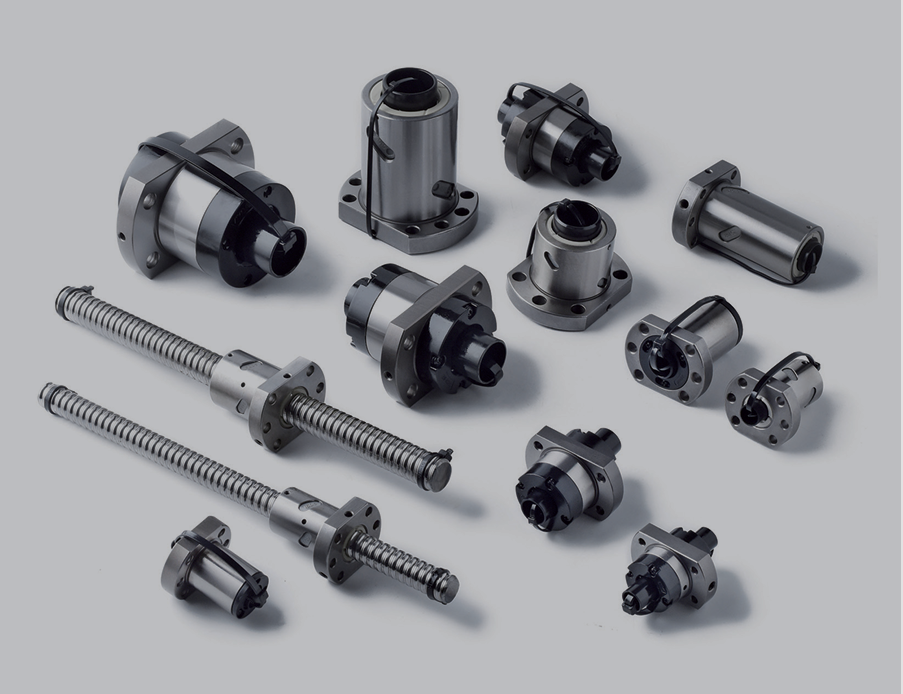

  4. SHF BALL NUT

SHF BALL NUT

These units are essential for providing rigidity, support, and precise alignment for the ends of a ball screw. They are often sold as a set, with different types for each end of the screw shaft.

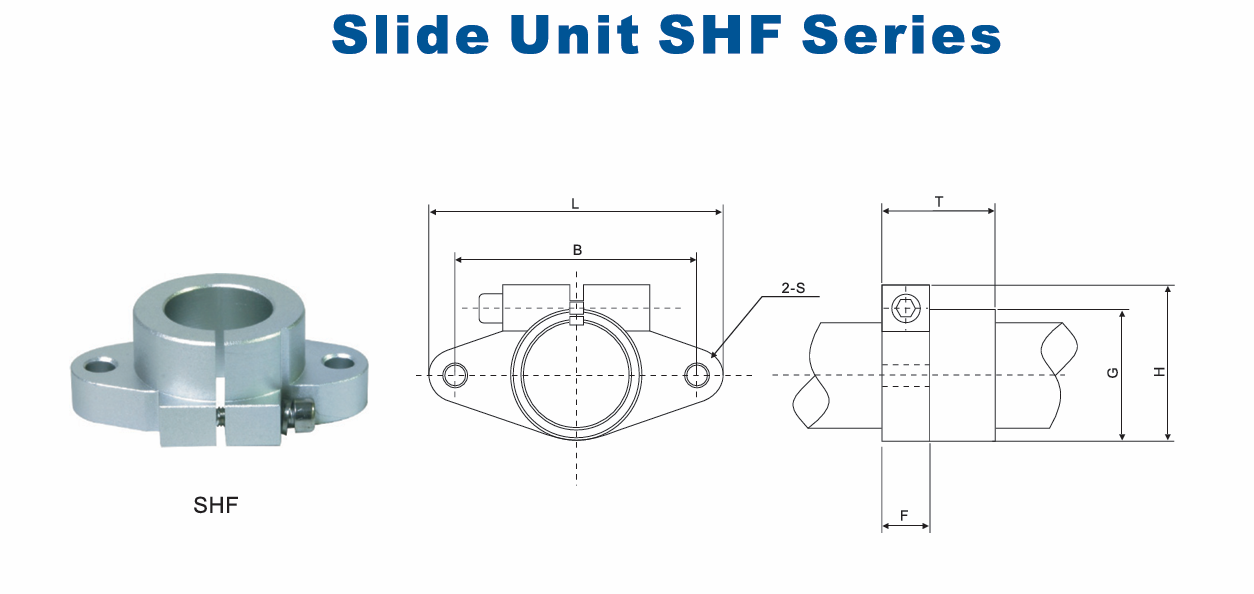

Description of the dimensions 1

Dimensions

Select Part No. Shaft diameter L T F B G H S Clamping bolt designation Mounting bolt designation Weight
SHF-10 10 43 10 5 32 20 24 5.5 M5 M4 13
SHF-12 12 47 13 7 36 28 5.5 M5 M4 20
SHF-13 13 47 13 7 36 25 28 5.5 M5 M4 20
SHF-16 16 50 16 8 40 28 31 5 M5 M4 27
SHF-20 20 60 20 8 48 34 37 7 M6 M5 40
SHF-25 25 70 25 10 56 40 42 7 M6 M5 60
SHF-30 30 80 30 12 64 46 50 9 M8 M6 110
SHF-35 35 92 35 14 72 50 58 12 MIO M8 380
SHF-40 40 105 40 16 80 56 (>/ 12 M10 M10 510
SHF-50 50 122 50 19 96 70 83 14 M12 M12 890
