  4. SK SHAFT SUPPORT

SK SHAFT SUPPORT

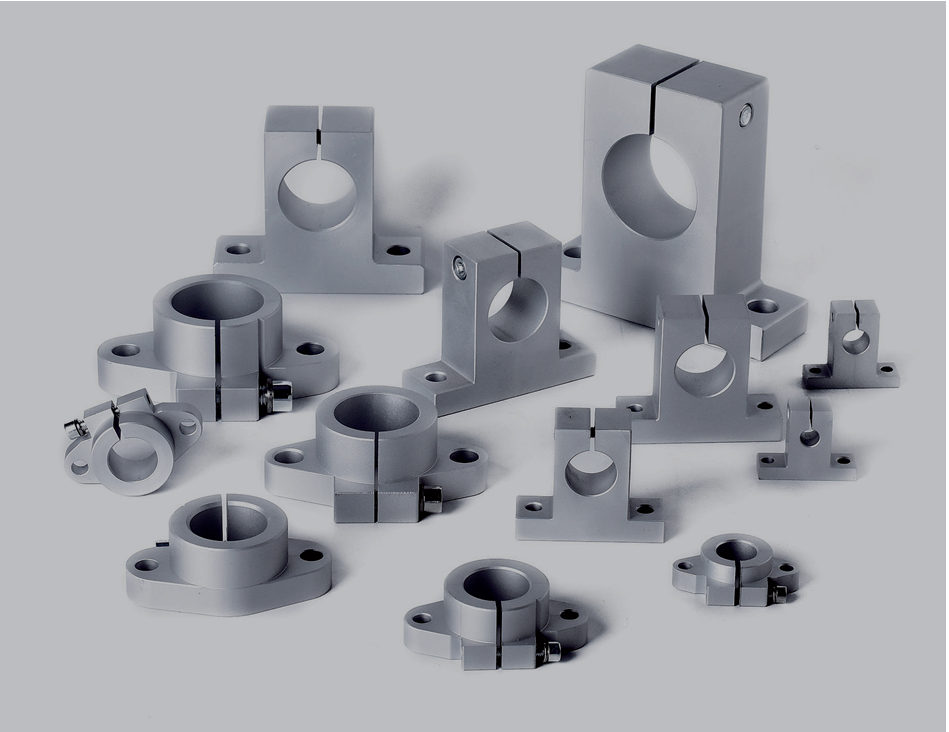

The Kolmb SK Shaft Support series is a line of aluminum brackets designed to provide rigid, lightweight, and easy-to-mount support for linear motion shafts

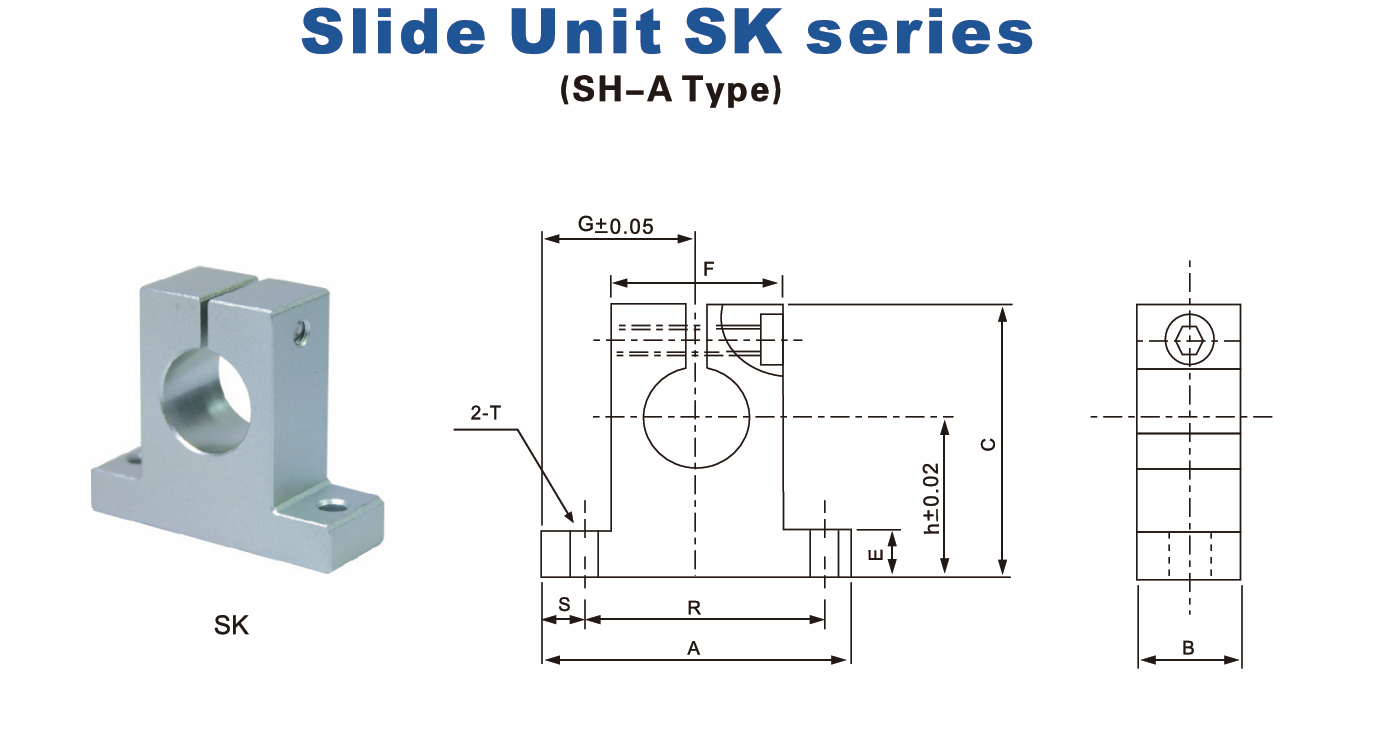

Description of the dimensions 1

Dimensions

Select Part No. Shaft diameter h G A B C E F R S T Clamping bolt designation Mounting bolt designation Weight (g)
SK-8 8 20 21 42 14 32.8 6 18 32 5 5.5 M4 M5 24
SK-10 10 20 21 42 14 32.8 6 18 32 5 5.5 M4 M5 24
SK-12 12 23 21 42 14 37.5 6 20 32 5 5.5 M4 M5 30
SK-13 13 23 21 42 14 37.5 6 20 32 5 5.5 M4 M5 30
SK-16 16 27 24 48 16 44 8 25 38 5 5.5 M4 M5 40
SK-20 20 31 30 60 20 51 10 30 45 7.5 6.6 M5 M6 70
SK-25 25 35 35 70 24 60 12 38 56 7 6.6 M6 M6 130
SK-30 30 42 42 84 28 70 12 44 64 10 9 M6 M8 180
SK-35 35 50 49 98 32 82 15 50 74 12 11 M8 M10 270
SK-40 40 60 57 114 36 96 15 60 90 12 11 M8 M10 420
SK-50 50 70 63 126 40 120 18 74 100 13 14 M12 M12 750
