SME SLIDE UNIT

The KOLMB SME SLIDE unit series refers to linear bearings manufactured by the KOLMB brand. The SME SLIDE units are a metric dimensioned, open-type linear bearing housed in an aluminum block. They are used to create smooth, low-friction linear motion in a variety of mechanical and industrial applications.

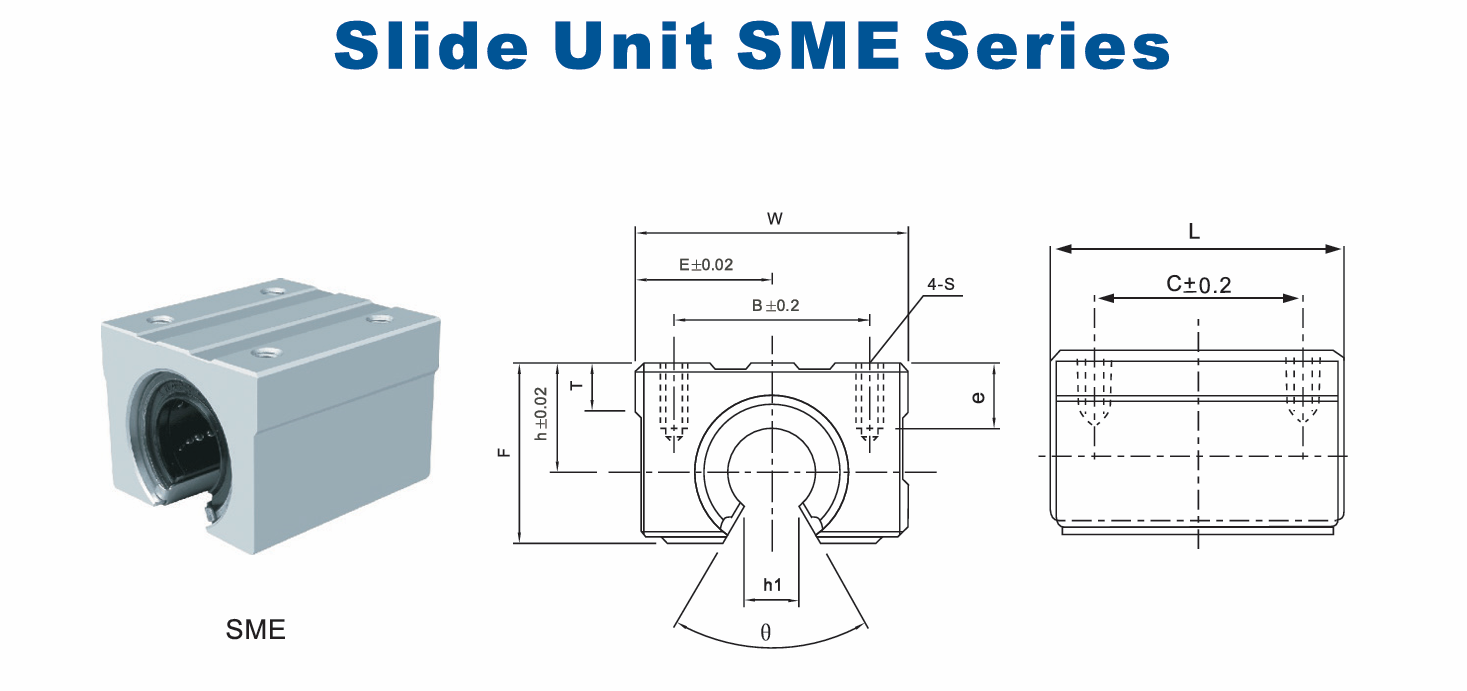

Description of the dimensions 1

Dimensions

Select Part No. h D W L F T H1 θ B C Sxe Slide Bush Basic Load Rating C N Basic Load Rating Co N Weight (g)
SME16UU 20 22.5 45 45 33 9 10 80° 32 30 M5x12 LM16UU-OP 774 1180 150
SME20UU 23 24 48 50 39 11 10 60° 35 35 M6x12 LM20UU-OP 882 1370 200
SME25UU 27 30 60 65 47 14 11.5 50° 40 40 M6x12 LM25UU-OP 980 1570 450
SME30UU 33 35 70 70 56 15 14 50° 50 50 M8x18 LM30UU-OP 1570 2740 630
SME35UU 37 40 80 80 63 18 16 50° 55 55 M8x18 LM35UU-OP 1670 3140 925
SME40UU 42 45 90 90 72 20 19 50° 65 65 M10x20 LM40UU-OP 2160 4020 1330
SME50UU 53 60 120 110 92 25 23 50° 94 80 M10x20 LM50UU-OP 3820 7940 3000
