  4. Ball Guide Type RSD-Cross Roller Guide Type RSD

Ball Guide Type RSD-Cross Roller Guide Type RSD

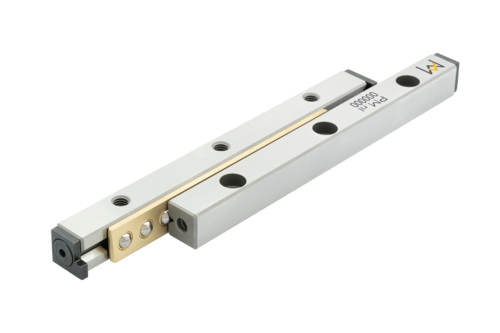

With over 50 years of experience, RSD cross-roller guides are the worldwide standard in high-tech applications for short to medium travel. They are used for precise linear motion providing zero play, high accuracy, almost zero friction, and outstanding reliability. Depending on the requirements the anti-friction guides can be fitted with either ball cages (ball guides) or crossed roller cages (cross-roller guides). Ball guides are used in light load applications, providing smooth running and low rolling friction. Cross-roller guides are used for applications requiring medium-high loads, high stiffness, and precision. Features 1.Available in sizes 1.5 - 15 mm 2.For ball and cross-roller cage 3.Maximum rail length (one piece) 1400 mm 4.Rails are through hardened for extended lifetime 5.Precision grinding is used to finish the V-groove 6.Various ball and crossed roller cage designs available

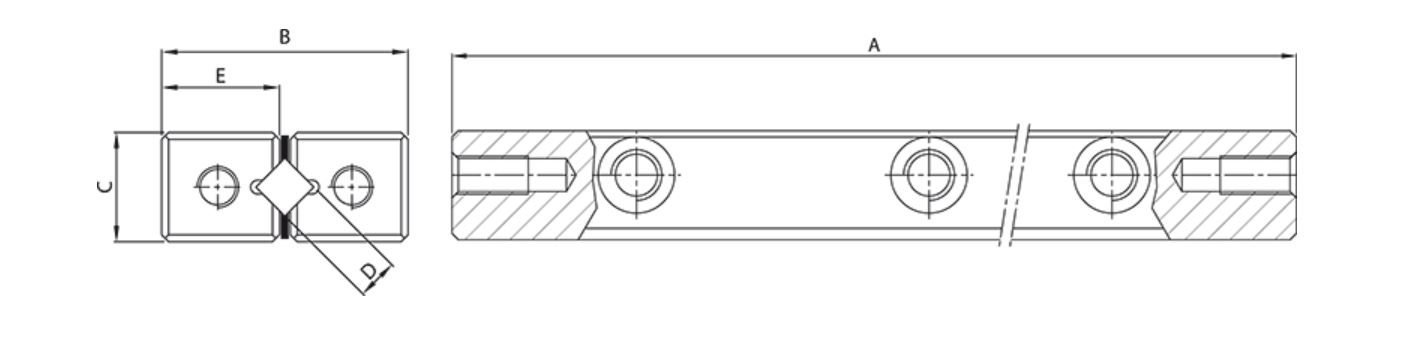

Description of the dimensions 1

Dimensions

Select Type Weight (Kg) A (mm) B (mm) C (mm) D (mm) E (mm)
RSD-1520 0.003 20 8.5 4 1.5 3.9
RSD-1530 0.004 30 8.5 4 1.5 3.9
RSD-1540 0.005 40 8.5 4 1.5 3.9
RSD-1550 0.006 50 8.5 4 1.5 3.9
RSD-1560 0.007 60 8.5 4 1.5 3.9
RSD-1570 0.008 70 8.5 4 1.5 3.9
RSD-1580 0.009 80 8.5 4 1.5 3.9
RSD-1590 0.01 90 8.5 4 1.5 3.9
RSD-15100 0.012 100 8.5 4 1.5 3.9
RSD-15120 0.014 120 8.5 4 1.5 3.9
RSD-15140 0.016 140 8.5 4 1.5 3.9
RSD-2030 0.008 30 12 6 2 5.5
RSD-2045 0.01 45 12 6 2 5.5
RSD-2060 0.014 60 12 6 2 5.5
RSD-2075 0.017 75 12 6 2 5.5
RSD-2090 0.02 90 12 6 2 5.5
RSD-2105 0.023 105 12 6 2 5.5
RSD-2120 0.026 120 12 6 2 5.5
RSD-2135 0.03 135 12 6 2 5.5
RSD-2150 0.034 150 12 6 2 5.5
RSD-2165 0.037 165 12 6 2 5.5
RSD-2180 0.04 180 12 6 2 5.5
RSD-3050 0.022 50 18 8 3 8.25
RSD-3075 0.033 75 18 8 3 8.25
RSD-3100 0.044 100 18 8 3 8.25
RSD-3125 0.055 125 18 8 3 8.25
RSD-3150 0.066 150 18 8 3 8.25
RSD-3175 0.077 175 18 8 3 8.25
RSD-3200 0.088 200 18 8 3 8.25
RSD-3225 0.099 225 18 8 3 8.25
RSD-3250 0.11 250 18 8 3 8.25
RSD-3275 0.121 275 18 8 3 8.25
RSD-3300 0.132 300 18 8 3 8.25
RSD-3350 0.15 350 18 8 3 8.25
RSD-4080 0.064 80 22 11 4 10
RSD-4120 0.096 120 22 11 4 10
RSD-4160 0.12 160 22 11 4 10
RSD-4200 0.16 200 22 11 4 10
RSD-4240 0.192 240 22 11 4 10
RSD-4280 0.224 280 22 11 4 10
RSD-4320 0.256 320 22 11 4 10
RSD-4360 0.288 360 22 11 4 10
RSD-4400 0.32 400 22 11 4 10
RSD-4440 0.352 440 22 11 4 10
RSD-4480 0.384 480 22 11 4 10
RSD-6100 0.142 100 31 15 6 14
RSD-6150 0.213 150 31 15 6 14
RSD-6200 0.288 200 31 15 6 14
RSD-6250 0.36 250 31 15 6 14
RSD-6300 0.432 300 31 15 6 14
RSD-6350 0.504 350 31 15 6 14
RSD-6400 0.576 400 31 15 6 14
RSD-6450 0.648 450 31 15 6 14
RSD-6500 0.72 500 31 15 6 14
RSD-6600 0.864 600 31 15 6 14
RSD-6700 1.008 700 31 15 6 14
RSD-6800 1.152 800 31 15 6 14
RSD-6900 1.296 900 31 15 6 14
RSD-61000 1.44 1000 31 15 6 14
RSD-61100 1.584 100 31 15 6 14
RSD-61200 1.728 1200 31 15 6 14
RSD-9100 0.306 100 44 22 9 19.8
RSD-9200 0.616 200 44 22 9 19.8
RSD-9300 0.926 300 44 22 9 19.8
RSD-9400 1.236 400 44 22 9 19.8
RSD-9500 1.546 500 44 22 9 19.8
RSD-9600 1.856 600 44 22 9 19.8
RSD-9700 2.166 700 44 22 9 19.8
RSD-9800 2.476 800 44 22 9 19.8
RSD-9900 2.786 900 44 22 9 19.8
RSD-91000 3.096 1000 44 22 9 19.8
RSD-91100 3.406 1100 44 22 9 19.8
RSD-91200 3.716 1200 44 22 9 19.8
RSD-12200 1.011 200 58 28 12 25.9
RSD-12300 1.525 300 58 28 12 25.9
RSD-12400 2.039 400 58 28 12 25.9
RSD-12500 2.553 500 58 28 12 25.9
RSD-12600 3.067 600 58 28 12 25.9
RSD-12700 3.581 700 58 28 12 25.9
RSD-12800 4.095 800 58 28 12 25.9
RSD-12900 4.609 900 58 28 12 25.9
RSD-121000 5.123 1000 58 28 12 25.9
RSD-121100 5.637 1100 58 28 12 25.9
RSD-121200 6.151 1200 58 28 12 25.9
RSD-121400 7.693 1400 58 28 12 25.9
RSD-15300 2.426 300 71 36 15 31.9
RSD-15400 3.221 400 71 36 15 31.9
RSD-15500 4.027 500 71 36 15 31.9
RSD-15600 4.833 600 71 36 15 31.9
RSD-15700 5.639 700 71 36 15 31.9
RSD-15800 6.445 800 71 36 15 31.9
RSD-15900 7.251 900 71 36 15 31.9
RSD-151000 8.057 1000 71 36 15 31.9
RSD-151100 8.863 1100 71 36 15 31.9
RSD-151200 9.669 1200 71 36 15 31.9
RSD-151400 10.475 1400 71 36 15 31.9
