  4. BRC-BRD BLOCK-RO-LR

BRC-BRD BLOCK-RO-LR

The ABBA BRC/BRD-RO/LR Linear Blocks are part of the innovative BR-Regular Series of self-lubricating linear guideways, designed for high-performance and maintenance-free operation in various industrial applications.

These blocks and rails utilize ABBA's patented technology to deliver superior motion control and extended service life.

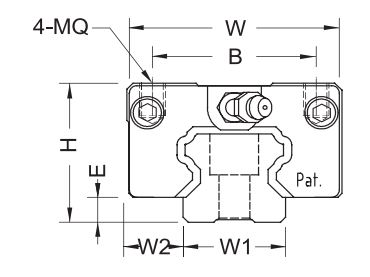

Description of the dimensions 1

Dimensions

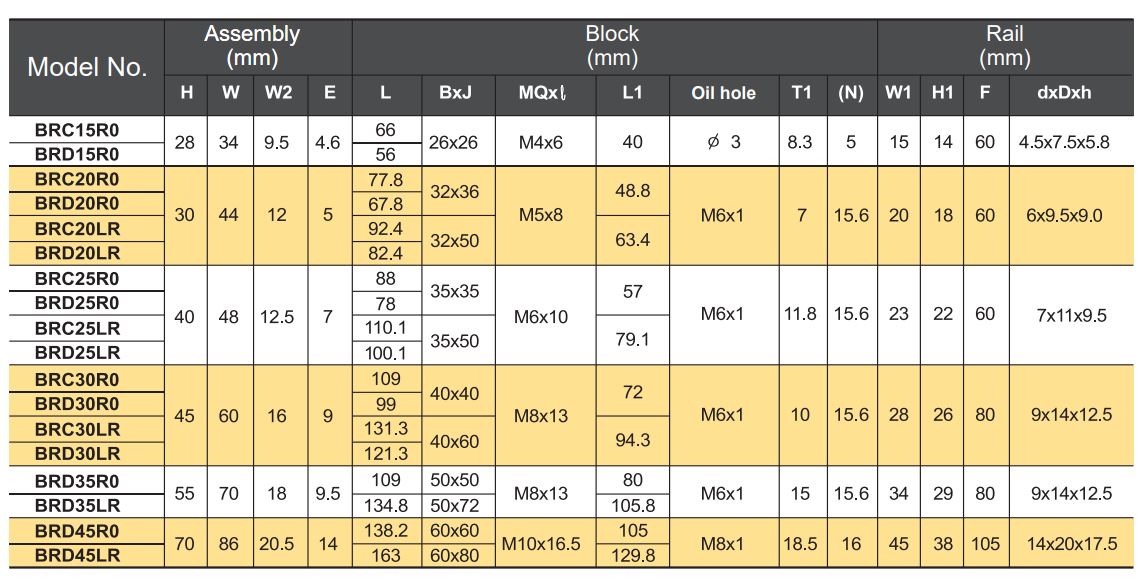

Select Model No. Assembly (mm) H Assembly (mm) W Assembly (mm) W2 Assembly (mm) E Block (mm) L Block (mm) BxJ Block (mm) MQxt Block (mm) L1 Block (mm) Oil hole Block (mm) T1 Block (mm) (N) Rail (mm) W1 Rail (mm) H1 Rail (mm) F Rail (mm) dxDxh
BRC15R0 (BRH15B) 28 34 9.5 4.6 66 26x26 M4x6 40 0 3 8.3 5 15 14 60 4.5x7.5x5.8
BRD15R0 (BRH15B-S) 28 34 9.5 4.6 56 26x26 M4x6 40 0 3 8.3 5 15 14 60 4.5x7.5x5.8
BRC20R0 (BRH20B) 30 44 12 5 77.8 32x36 M5x8 48.8 M6x1 7 15.6 20 18 60 6x9.5x9.0
BRD20R0 (BRH20B-S) 30 44 12 5 67.8 32x36 M5x8 48.8 M6x1 7 15.6 20 18 60 6x9.5x9.0
BRC20LR (BRH20BL) 30 44 12 5 92.4 32x50 M5x8 63.4 M6x1 7 15.6 20 18 60 6x9.5x9.0
BRD20LR (BRH20BL-S) 30 44 12 5 82.4 32x50 M5x8 63.4 M6x1 7 15.6 20 18 60 6x9.5x9.0
BRC25R0 (BRH25B) 40 48 12.5 7 88 35x35 M6x10 57 M6x1 11.8 15.6 23 22 60 7x11x9.5
BRD25R0 (BRH25B-S) 40 48 12.5 7 78 35x35 M6x10 57 M6x1 11.8 15.6 23 22 60 7x11x9.5
BRC25LR (BRH25BL) 40 48 12.5 7 110.1 35x50 M6x10 79.1 M6x1 11.8 15.6 23 22 60 7x11x9.5
BRD25LR (BRH25BL-S) 40 48 12.5 7 100.1 35x50 M6x10 79.1 M6x1 11.8 15.6 23 22 60 7x11x9.5
BRC30R0 (BRH30B) 45 60 16 9 109 40x40 M8x13 72 M6x1 10 15.6 28 26 80 9x14x12.5
BRD30R0 (BRH30B-S) 45 60 16 9 99 40x40 M8x13 72 M6x1 10 15.6 28 26 80 9x14x12.5
BRC30LR (BRH30BL) 45 60 16 9 131.3 40x60 M8x13 94.3 M6x1 10 15.6 28 26 80 9x14x12.5
BRD30LR (BRH30BL-S) 45 60 16 9 121.3 40x60 M8x13 94.3 M6x1 10 15.6 28 26 80 9x14x12.5
BRD35R0 (BRH35B-S) 55 70 18 9.5 109 50x50 M8x13 80 M6x1 15 15.6 34 29 80 9x14x12.5
BRD35LR (BRH35BL-S) 55 70 18 9.5 134.8 50x72 M8x13 105.8 M6x1 15 15.6 34 29 80 9x14x12.5
BRD45R0 (BRH45B-S) 70 86 20.5 14 138.2 60x60 M10x16.5 105 M8x1 18.5 16 45 38 105 14x20x17.5
BRD45LR (BRH45BL-S) 70 86 20.5 14 163 60x80 M10x16.5 129.8 M8x1 18.5 16 45 38 105 14x20x17.5
