  4. BRC-BRD BLOCK-UO-SU

BRC-BRD BLOCK-UO-SU

The ABBA BR-Regular series linear guideways, including the BRC-BRD U0/SU blocks, are engineered for superior performance and long-term reliability. ABBA Linear Tech was the first manufacturer in Taiwan to put the patented Self-Lubricant and Four-Row Linear Guide systems into mass production.

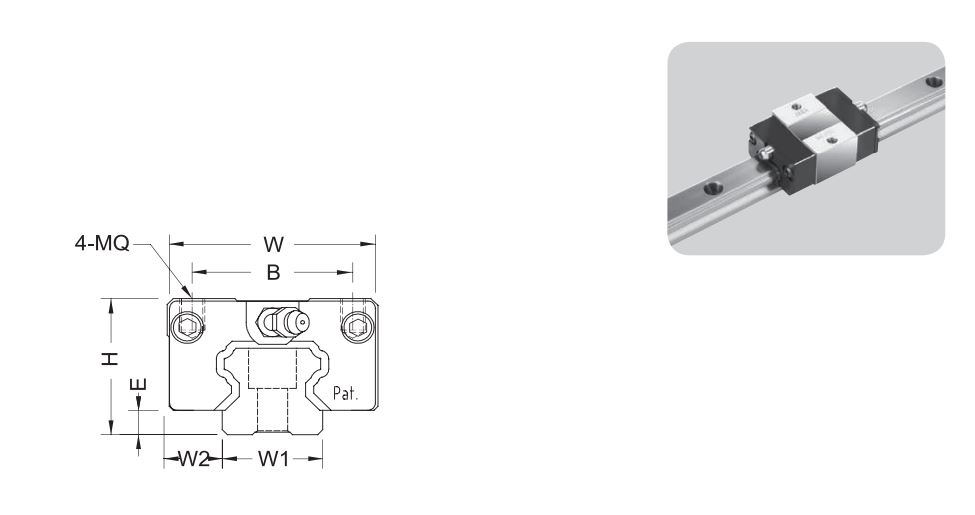

Description of the dimensions 5

Dimensions

Select Model No. H Assembly (mm) W W2 E L BxJ E ( MQxl Mock mm) L1 Oil hole T1 (N) W1 H1 Rail (mm) F Rail (mm) dxDxh
BRC15U0 (BRS15B) 24 34 9.5 4.6 66 26x26 M4x5.6 40 03 4.3 5 15 14 60 4.5x7.5x5.8
BRD15U0 (BRS15B-S) 24 34 9.5 4.6 56 26x26 M4x5.6 40 03 4.3 5 15 14 60 4.5x7.5x5.8
BRC15SU (BRS15BS) 24 34 9.5 4.6 47.6 26x- M4x5.6 21.6 03 4.3 5 15 14 60 4.5x7.5x5.8
BRD15SU (BRS15BS-S) 24 34 9.5 4.6 37.6 26x- M4x5.6 21.6 03 4.3 5 15 14 60 4.5x7.5x5.8
BRC20U0 (BRS20B) 28 42 11 5 77.8 32x32 M5x6.4 48.8 M6x1 5 15.6 20 18 60 6x9.5x9.0
BRD20U0 (BRS20B-S) 28 42 11 5 67.8 32x32 M5x6.4 48.8 M6x1 5 15.6 20 18 60 6x9.5x9.0
BRC20SU (BRS20BS) 28 42 11 5 57 32x- M5x6.4 28 M6x1 5 15.6 20 18 60 6x9.5x9.0
BRD20SU (BRS20BS-S) 28 42 11 5 47 32x- M5x6.4 28 M6x1 5 15.6 20 18 60 6x9.5x9.0
BRC25U0 (BRS25B) 33 48 12.5 7 88 35x35 M6x8 57 M6x1 4.8 15.6 23 22 60 7x11x9.5
BRD25U0 (BRS25B-S) 33 48 12.5 7 78 35x35 M6x8 57 M6x1 4.8 15.6 23 22 60 7x11x9.5
BRC25SU (BRS25BS) 33 48 12.5 7 62.5 35x- M6x8 31.5 M6x1 4.8 15.6 23 22 60 7x11x9.5
BRD25SU (BRS25BS-S) 33 48 12.5 7 52.5 35x- M6x8 31.5 M6x1 4.8 15.6 23 22 60 7x11x9.5
BRC30U0 (BRS30B) 42 60 16 9 109 40x40 M8x11.5 72 M6x1 7 15.6 28 26 80 9x14x12.5
BRD30U0 (BRS30B-S) 42 60 16 9 99 40x40 M8x11.5 72 M6x1 7 15.6 28 26 80 9x14x12.5
BRC30SU (BRS30BS) 42 60 16 9 75.6 40x- M8x11.5 38.6 M6x1 7 15.6 28 26 80 9x14x12.5
BRD30SU (BRS30BS-S) 42 60 16 9 65.6 40x- M8x11.5 38.6 M6x1 7 15.6 28 26 80 9x14x12.5
BRD35U0 (BRS35B-S) 48 70 18 9.5 109 50x50 M8x11.2 80 M6x1 8 15.6 34 29 80 9x14x12.5
BRD35SU (BRS35BS) 48 70 18 9.5 74.7 50x- M8x11.2 45.7 M6x1 8 15.6 34 29 80 9x14x12.5
BRD45U0 (BRS45B-S) 60 86 20.5 14 138.2 60x60 M10x13 105 M8x1 8.5 16 45 38 105 14x20x17.5
