  4. BRC-BRD RAIL-AO-LA

BRC-BRD RAIL-AO-LA

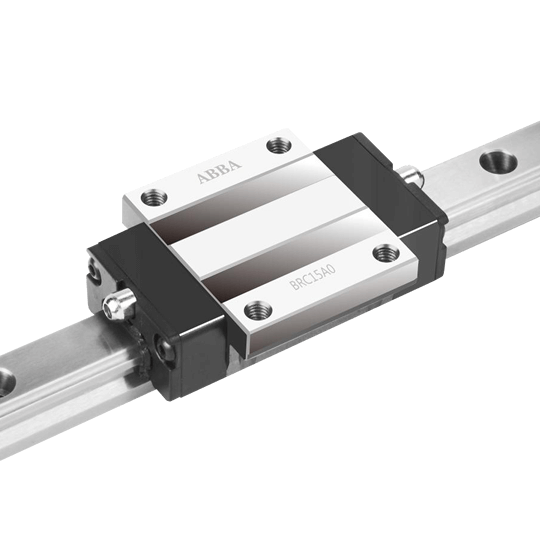

The ABBA BRC-BRD (BR Series) Linear Guideways are part of ABBA Linear Tech's flagship line of linear motion products, known for their patented self-lubricating system and robust design. This series ensures precision, durability, and reduced maintenance for a wide range of industrial machinery.

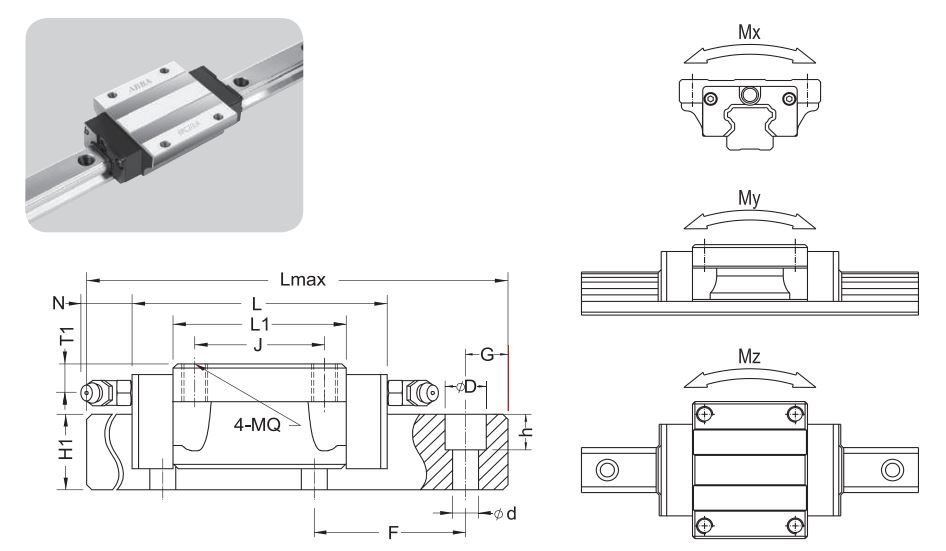

Description of the dimensions 4

Dimensions

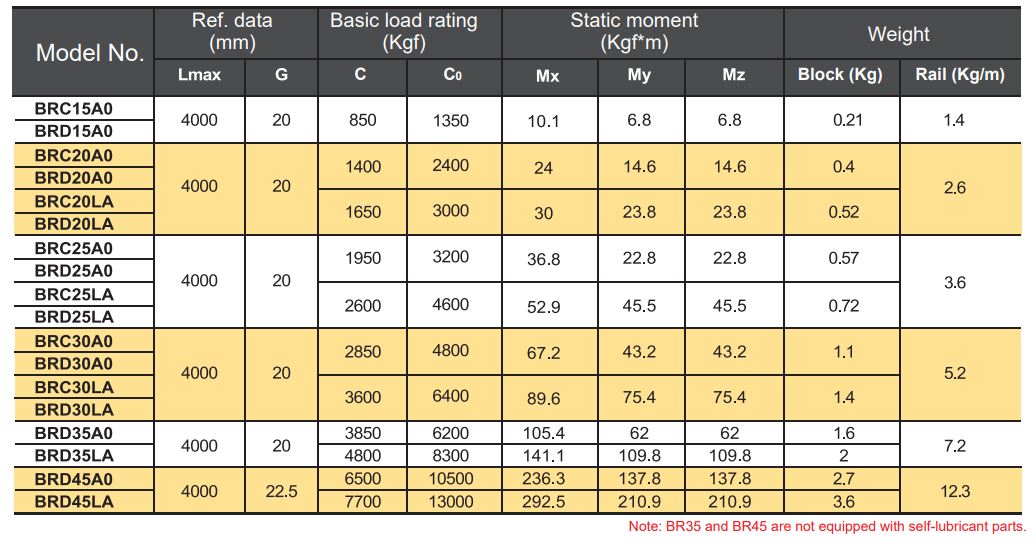

Select Model No Ref. data (mm) Lmax Ref. data (mm) G Basic load rating (Kgf) c Basic load rating (Kgf) Co Static moment (Kgf*m) Mx Static moment (Kgf*m) My Static moment (Kgf*m) Mz Block Weight (Kg) Rail Weight (Kg/m)
BRC15A0 (BRH15A) 4000 20 850 1350 10.1 6.8 6.8 0.21 1.4
BRD15A0 (BRH15A-S) 4000 20 850 1350 10.1 6.8 6.8 0.21 1.4
BRC20A0 (BRH20A) 4000 20 1400 2400 24 14.6 14.6 0.4 2.6
BRD20A0 (BRH20A-S) 4000 20 1400 2400 24 14.6 14.6 0.4 2.6
BRC20LA (BRH20AL) 4000 20 1650 3000 30 23.8 23.8 0.52 2.6
BRD20LA (BRH20AL-S) 4000 20 1650 3000 30 23.8 23.8 0.52 2.6
BRC25A0 (BRH25A) 4000 20 1950 3200 36.8 22.8 22.8 0.57 3.6
BRD25AO (BRH25A-S) 4000 20 1950 3200 36.8 22.8 22.8 0.57 3.6
BRC25LA (BRH25AL) 4000 20 1950 3200 36.8 22.8 22.8 0.57 3.6
BRD25LA (BRH25AL-S) 4000 20 2600 4600 52.9 45.5 45.5 0.72 3.6
BRC30A0 (BRH30A) 4000 20 2850 4800 67.2 43.2 43.2 1.1 5.2
BRD30AO (BRH30A-S) 4000 20 2850 4800 67.2 43.2 43.2 1.1 5.2
BRC30LA (BRH30AL) 4000 20 2850 4800 67.2 43.2 43.2 1.1 5.2
BRD30LA (BRH30AL-S) 4000 20 3600 6400 89.6 75.4 75.4 1.4 5.2
BRD35A0 (BRH35AL-S) 4000 20 3850 6200 105.4 62 62 1.6 7.2
BRD35LA (BRH35AL-S) 4000 20 4800 8300 141.1 109.8 109.8 2 7.2
BRD45A0 (BRH45A-S) 4000 22.5 6500 10500 236.3 137.8 137.8 2.7 12.3
BRD45LA (BRH45AL-S) 4000 22.5 7700 13000 292.5 210.9 210.9 3.6 12.3
