BRC-BRD RAIL-RO-LR

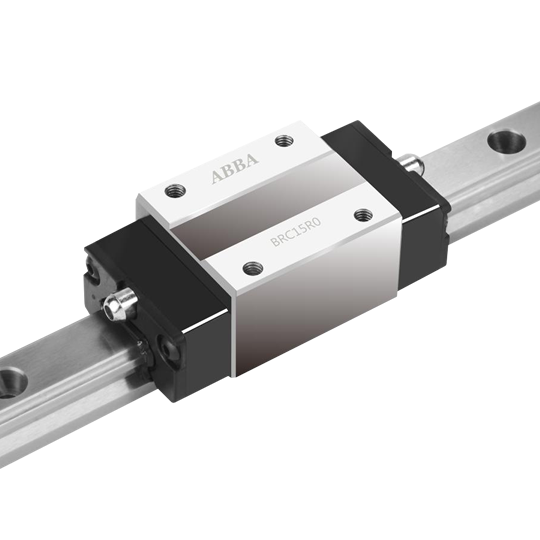

The ABBA BRC-BRD RAIL-R0/LR Linear Guideway is a part of the high-performance BR-Regular series, designed for diverse automation and machinery applications. It is renowned as Taiwan's first patented self-lubricating and four-row linear guide system, ensuring maximum performance and minimal maintenance.

The RO/LR designation features a Slim-line Carriage with Extended Height, providing a lower profile than the standard flanged type while maintaining robust load capacity and high rigidity.

Description of the dimensions 2

Dimensions

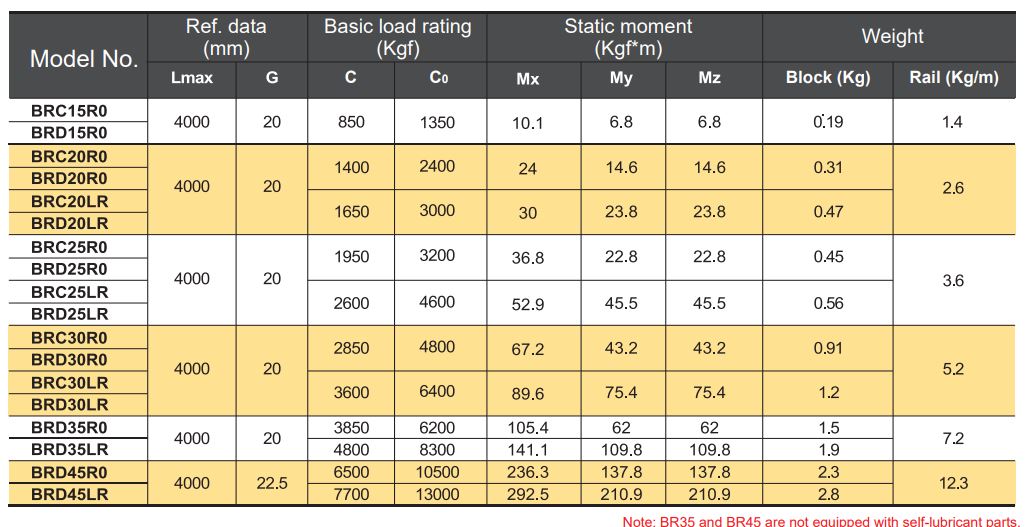

Model No.	Ref. data (mm) Lmax	Ref. data (mm) G	Basic load rating (Kgf) c	Basic load rating (Kgf) Co	Static moment (Kgf*m) Mx	Static moment (Kgf*m) My	Static moment (Kgf*m) Mz	Block Weight (Kg)	Rail Weight (Kg/m)
BRC15R0 (BRH15B)	4000	20	850	1350	10.1	6.8	6.8	0119	1.4
BRD15R0 (BRH15B-S)	4000	20	850	1350	10.1	6.8	6.8	0119	1.4
BRC20R0 (BRH20B)	4000	20	1400	2400	24	14.6	14.6	0.31	2.6
BRD20R0 (BRH20B-S)	4000	20	1400	2400	24	14.6	14.6	0.31	2.6
BRC20LR (BRH20BL)	4000	20	1650	3000	30	23.8	23.8	0.47	2.6
BRD20LR (BRH20BL-S)	4000	20	1650	3000	30	23.8	23.8	0.47	2.6
BRC25R0 (BRH25B)	4000	20	1950	3200	36.8	22.8	22.8	0.45	3.6
BRD25R0 (BRH25B-S)	4000	20	1950	3200	36.8	22.8	22.8	0.45	3.6
BRC25LR (BRH25BL)	4000	20	2600	4600	52.9	45.5	45.5	0.56	3.6
BRD25LR (BRH25BL-S)	4000	20	2600	4600	52.9	45.5	45.5	0.56	3.6
BRC30R0 (BRH30B)	4000	20	2850	4800	67.2	43.2	43.2	0.91	5.2
BRD30R0 (BRH30B-S)	4000	20	2850	4800	67.2	43.2	43.2	0.91	5.2
BRC30LR (BRH30BL)	4000	20	3600	6400	89.6	75.4	75.4	1.2	5.2
BRD30LR (BRH30BL-S)	4000	20	3600	6400	89.6	75.4	75.4	1.2	5.2
BRD35R0 (BRH35B-S)	4000	20	3850	6200	105.4	62	62	1.5	7.2
BRD35LR (BRH35BL-S)	4000	20	4800	8300	141.1	109.8	109.8	1.9	7.2
BRD45R0 (BRH45B-S)	4000	22.5	6500	10500	236.3	137.8	137.8	2.3	12.3
BRD45LR (BRH45BL-S)	4000	22.5	7700	13000	292.5	210.9	210.9	2.8	12.3
