BRC-BRD RAIL-UO-SU

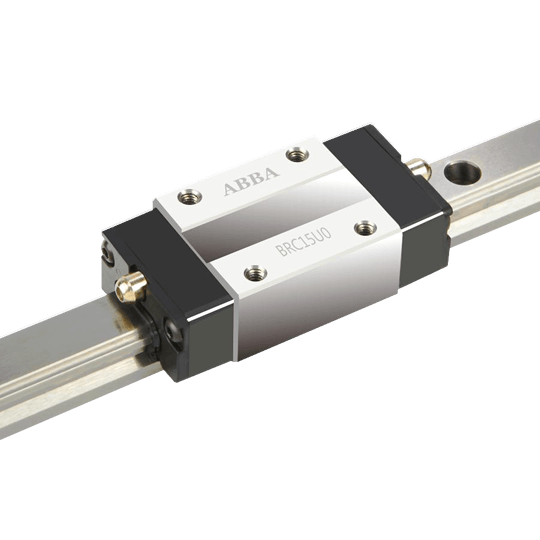

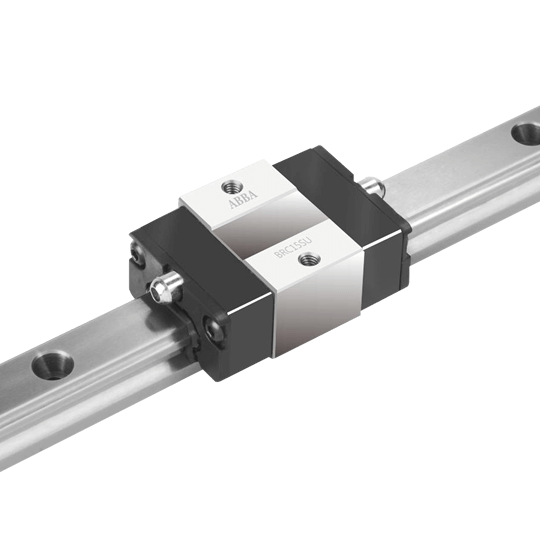

Description of the product 6

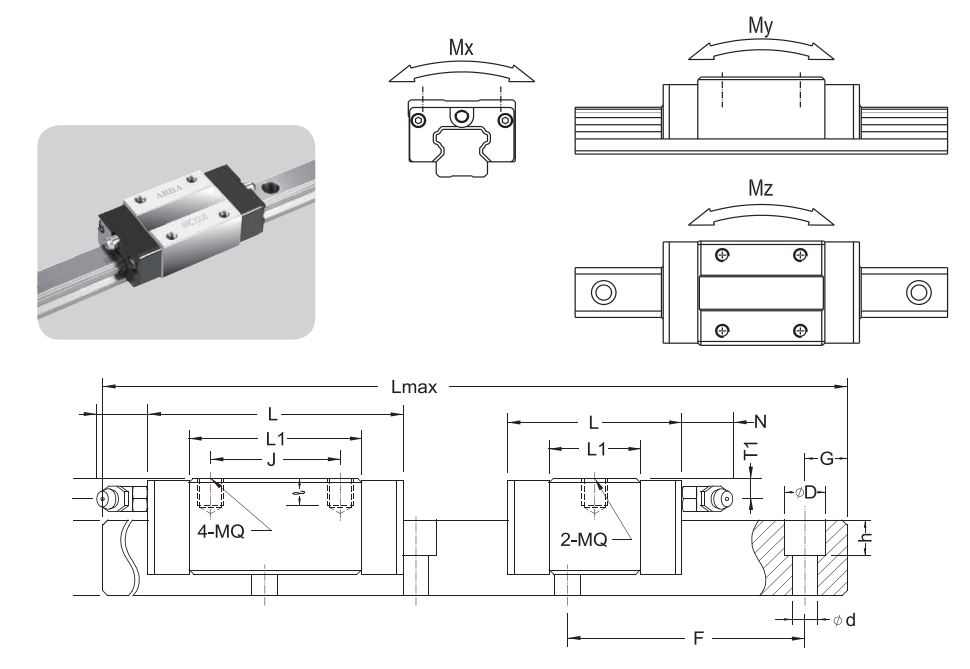

Description of the dimensions 6

Model No.	Ref. data (mm) Lmax	Ref. data (mm) G	Basic load rating (Kgf) C	Basic load rating (Kgf) Co	Static moment (Kgf*m) Mx	Static moment (Kgf*m) My	Static moment (Kgf*m) Mz	Weight Block (Kg)	Weight Rail (Kg/m)
BRC15U0(BRS15B)	4000	20	850	1350	10.1	6.8	6.8	0.17	1.4
BRD15U0(BRS15B)	4000	20	850	1350	10.1	6.8	6.8	0.17	1.4
BRC15SU(BRS15BS)	4000	20	850	1350	10.1	6.8	6.8	0.17	1.4
BRD15SU(BRS15BS)	4000	20	520	680	5.1	1.8	1.8	0.1	1.4
BRC20U0(BRS20B)	4000	20	1400	2400	24	14.6	14.6	0.26	2.6
BRD20U0(BRS20B)	4000	20	1400	2400	24	14.6	14.6	0.26	2.6
BRC20SU(BRS20BS)	4000	20	1400	2400	24	14.6	14.6	0.26	2.6
BRD20SU(BRS20BS)	4000	20	950	1400	7	4.9	4.9	0.17	2.6
BRC25U0(BRS25B)	4000	20	1950	3200	36.8	22.8	22.8	0.38	3.6
BRD25U0(BRS25B)	4000	20	1950	3200	36.8	22.8	22.8	0.38	3.6
BRC25SU(BRS25BS)	4000	20	1950	3200	36.8	22.8	22.8	0.38	3.6
BRD25SU(BRS25BS)	4000	20	1250	1750	17.5	6.9	6.9	0.21	3.6
BRC30U0(BRS30B)	4000	20	2850	4800	67.2	43.2	43.2	0.81	5.2
BRD30U0(BRS30B)	4000	20	2850	4800	67.2	43.2	43.2	0.81	5.2
BRC30SU(BRS30BS)	4000	20	2850	4800	67.2	43.2	43.2	0.81	5.2
BRD30SU(BRS30BS)	4000	20	1750	2400	33.6	11.6	11.6	0.48	5.2
BRD35U0(BRS35B)	4000	20	3850	6200	105.4	62	62	1.2	7.2
BRD35SU(BRS35BS)	4000	20	2500	3650	62.1	20.9	20.9	0.8	7.2
BRD45U0(BRS35B)	4000	22.5	6500	10500	236.3	137.8	137.8	2.1	12.3
