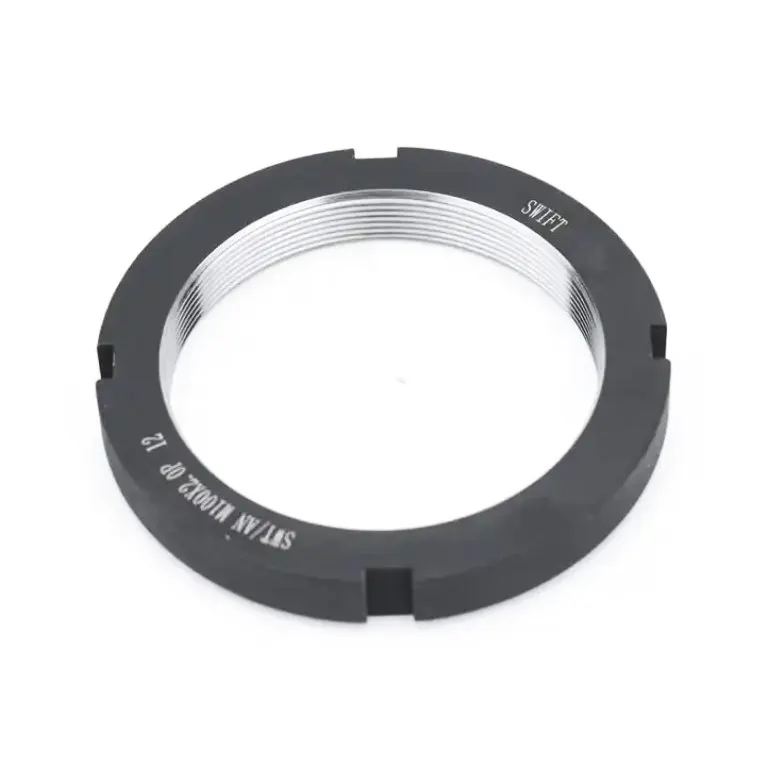

SWT-AN Series LockNut

SWT/AN series The structure is simple. Inner thread and end surface are manufactured at the same time so that the Run out can be ensured. Material: Material: 42CrMo,45#, 40Cr Hardness: HRC28°—32° Thread Precision: ISO4H Run Out: 0.005mm

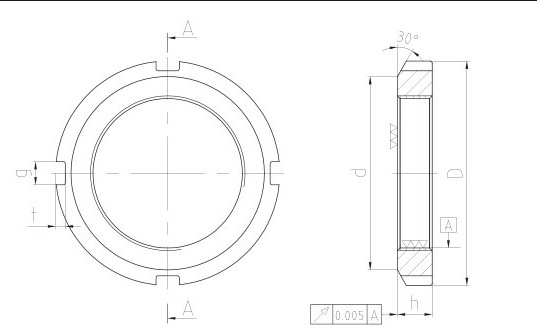

Description of the dimensions 1

Dimensions

Select Thread D h g t d
AN0M10X0.75P 18 4 3 2 13.5
AN 1 M12X1.0P 22 4 3 2 17
AN 2 M15x1 .OP 25 5 4 2 21
AN 3 M17x1 .OP 28 5 4 2 22
AN 4 M20x1 .OP 32 6 4 2 26
AN5M25X1.5P 38 7 5 2 32
AN6M30x1.5P 45 7 5 2 38
AN7M35X1.5P 52 8 5 2 44
AN8M40X1.5P 58 9 6 2.5 50
AN9M45X1.5P 65 10 6 2.5 56
AN 10M50X1.5P 70 11 6 2.5 61
AN 11 M55X2.0P 75 11 7 3 67
AN 12M60x2.0P 80 11 7 3 73
AN 13M65X2.0P 85 12 7 3 79
AN 14M70x2.0P 92 12 8 3.5 84
AN 15M75x2.0P 98 13 8 3.5 90
AN 16M80x2.0P 105 15 8 3.5 95
AN 17M85x2.0P 110 16 8 3.5 102
AN 18M90X2.0P 120 16 10 4 108
AN 19M95x2.0P 125 17 10 4 113
AN 20M100X2.0P 130 18 10 4 120
AN 21 M105x2.OP 140 18 12 5 126
AN 22 M110X2.0P 145 19 12 5 133
AN 23M115x2.0P 150 19 12 5 137
AN 24M120X2.0P 155 20 12 5 138
AN 25M125X2.0P 160 21 12 5 148
AN 26M130x2.0P 165 21 12 5 149
AN 27M135X2.0P 175 22 14 6 160
AN 28M140x2.0P 180 22 14 6 160
AN 29M145X2.0P 190 24 14 6 172
AN 30M150x2.0P 195 24 14 6 171
AN 31 M155X2.0P 200 25 16 7 182
AN 32M160X3.0P 210 25 16 7 182
AN 33M165X3.0P 210 26 16 7 193
AN 34 M170x3.0P 220 26 16 7 193
AN 36M180x3.0P 230 27 18 8 203
AN 38M190x3.0P 240 28 18 8 214
AN 40 M200X3.0P 250 29 18 8 226
