SWT-F Series LockNut

SWT/F series For SWT/F series locking nut, its brass locking pin forms a angle of 30 degree with the thread. It does not bear the axial load forced on the thread. Once the nut is locked, the thread surface will not release axial load and the nut will not be deformed. Three lock nuts with equal spaces can precisely position the nut, keep it perpendicular to the shaft. F-type nuts can ensure their precision even after multiple assembly and dis-assembly. Material: 42CrMo,45#, 40Cr Hardness: HRC28°—32° Thread Precision: ISO4H Run Out: 0.005mm

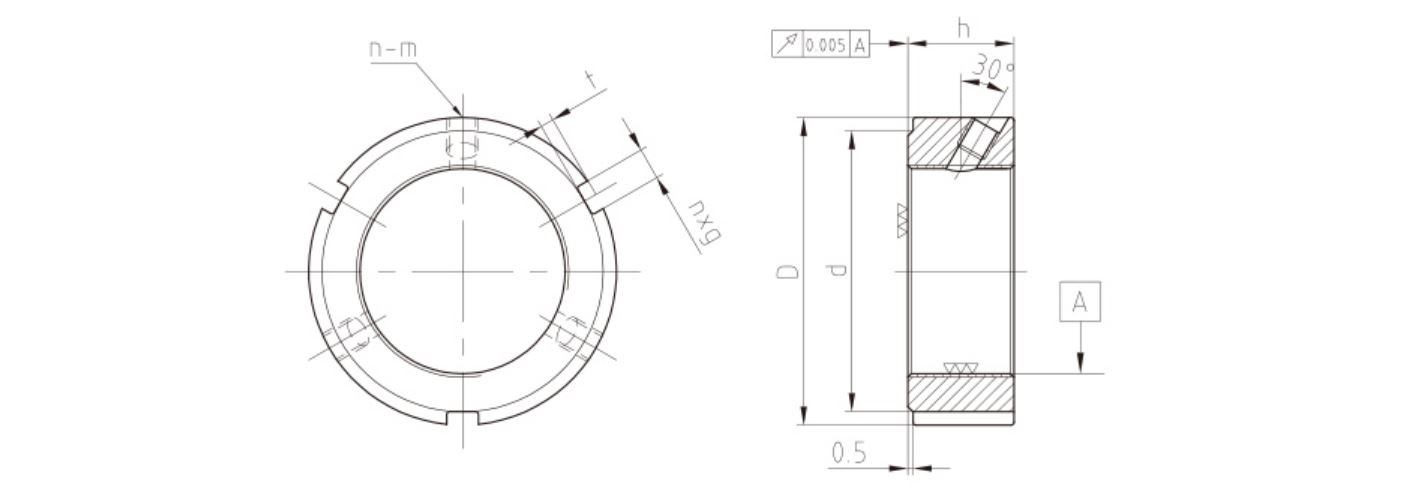

Description of the dimensions 1

Dimensions

Select Thread D (OD) h (Thickness) d n-g t n-m MAX.Nm
SWT/F M12X1.5P (YSF M12X1.5P) 30 14 26 3—4 2 3-M5 4.5
SWT/F M14x1.5P (YSF M14x1.5P) 30 14 26 3—4 2 3-M5 4.5
SWT/F M15x1 .OP (YSF M15x1 .OP) 30 14 26 3—4 2 3-M5 4.5
SWT/F M16x1.5P (YSF M16x1.5P) 30 14 26 3—4 2 3-M5 4.5
SWT/F M17x1 .OP (YSF M17x1 .OP) 32 16 28 3—4 2 3-M5 4.5
SWT/F M18x1.5P (YSF M18x1.5P) 32 16 28 3—4 2 3-M5 4.5
SWT/F M20x1.0P (YSF M20x1.0P) 38 16 34 3—4 2 3-M5 4.5
SWT/F M20X1.5P (YSF M20X1.5P) 38 16 34 3—4 2 3-M6 8
SWT/F M22x1.5P (YSF M22x1.5P) 38 16 34 3—4 2 3-M6 8
SWT/F M24X1.5P (YSF M24X1.5P) 38 18 34 3—5 2 3-M6 8
SWT/F M25X1.5P (YSF M25X1.5P) 38 18 34 3—5 2 3-M6 8
SWT/F M27X1.5P (YSF M27X1.5P) 40 18 36 3—5 2 3-M6 8
SWT/F M30x1.5P (YSF M30x1.5P) 45 18 41 3— 5 2 3-M6 8
SWT/F M33X1.5P (YSF M33X1.5P) 50 18 46 3—5 2 3-M6 8
SWT/F M35X1.5P (YSF M35X1.5P) 52 18 48 3—5 2 3-M8 18
SWT/F M36X1.5P (YSF M36X1.5P) 52 18 48 3—5 2 3-M8 18
SWT/F M39X1.5P (YSF M39X1.5P) 58 20 53 3—6 2.5 3-M8 18
SWT/F M40X1.5P (YSF M40X1.5P) 58 20 53 3—6 2.5 3-M8 18
SWT/F M42X1.5P (YSF M42X1.5P) 62 20 57 3—6 2.5 3-M8 18
SWT/F M45X1.5P (YSF M45X1.5P) 65 20 60 3—6 2.5 3-M8 18
SWT/F M48X1.5P (YSF M48X1.5P) 70 20 65 3—6 2.5 3-M8 18
SWT/F M50X1.5P (YSF M50X1.5P) 70 20 65 3—6 2.5 3-M8 18
SWT/F M52X1.5P (YSF M52X1.5P) 73 22 67 3—7 3 3-M8 18
SWT/F M55X1.5P (YSF M55X1.5P) 75 22 69 3—7 3 3-M8 18
SWT/F M55X2.0P (YSF M55X2.0P) 75 22 69 3—7 3 3-M8 18
SWT/F M56X1.5P (YSF M56X1.5P) 75 22 69 3—7 3 3-M8 18
SWT/F M56X2.0P (YSF M56X2.0P) 75 22 69 3—7 3 3-M8 18
SWT/F M60X2.0P (YSF M60X2.0P) 80 22 74 3—7 3 3-M8 18
SWT/F M64X1.5P (YSF M64X1.5P) 85 22 79 3—7 3 3-M8 18
SWT/F M64X2.0P (YSF M64X2.0P) 85 22 79 3—7 3 3-M8 18
SWT/F M65X2.0P (YSF M65X2.0P) 85 22 79 3—7 3 3-M8 18
SWT/F M68X2.0P (YSF M68X2.0P) 92 24 85 3—8 3.5 3-M8 18
SWT/F M70X2.0P (YSF M70X2.0P) 92 24 85 3—8 3.5 3-M8 18
SWT/F M72X2.0P (YSF M72X2.0P) 94 24 87 3—8 3.5 3-M8 18
SWT/F M75X2.0P (YSF M75X2.0P) 98 24 91 3—8 3.5 3-M8 18
SWT/F M76x2.0P (YSF M76x2.0P) 98 24 91 3—8 3.5 3-M8 18
SWT/F M80X2.0P (YSF M80X2.0P) 105 24 98 3—8 3.5 3-M8 18
SWT/F M85X2.0P (YSF M85X2.0P) 110 24 103 3—8 3.5 3-M8 18
SWT/F M90x2.0P (YSF M90x2.0P) 120 26 112 6—10 4 3-M8 18
SWT/F M95x2.0P (YSF M95x2.0P) 125 26 117 6—10 4 3-M8 18
SWT/F M100x2.OP (YSF M100x2.OP) 130 26 122 6—10 4 3-M8 18
SWT/F M105x2.OP (YSF M105x2.OP) 140 28 132 6—10 4 3-M10 35
SWT/F M110x2.OP (YSF M110x2.OP) 145 28 137 6—10 4 3-M10 35
SWT/F M115x2.OP (YSF M115x2.OP) 150 28 142 6—10 4 3-M10 35
SWT/F M120x2.OP (YSF M120x2.OP) 155 30 145 6—12 5 3-M10 35
SWT/F M 125x2.OP (YSF M 125x2.OP) 160 30 150 6—12 5 3-M10 35
SWT/F M130x2.OP (YSF M130x2.OP) 165 30 155 6—12 5 3-M10 35
SWT/F M135x2.OP (YSF M135x2.OP) 175 32 165 6—12 5 3-M10 35
SWT/F M140x2.OP (YSF M140x2.OP) 180 32 170 6—12 5 3-M10 35
SWT/F M145x2.OP (YSF M145x2.OP) 190 32 180 6—12 5 3-M10 35
SWT/F M150x2.OP (YSF M150x2.OP) 195 32 185 6—12 5 3-M10 35
SWT/F M155X3.0P (YSF M155X3.0P) 200 34 188 6—14 6 3-M10 35
SWT/F M160x3.0P (YSF M160x3.0P) 210 34 198 6—14 6 3-M10 35
SWT/F M165X3.0P (YSF M165X3.0P) 210 34 198 6—14 6 3-M10 35
SWT/F M170X3.0P (YSF M170X3.0P) 220 34 208 6—14 6 3-M10 35
SWT/F M 180x3.OP (YSF M 180x3.OP) 230 36 216 6—16 7 3-M12 60
SWT/F M190X3.0P (YSF M190X3.0P) 240 36 226 6—16 7 3-M12 60
SWT/F M200x3.0P (YSF M200x3.0P) 250 38 236 6—16 7 3-M12 60
SWT/F M210X4.0P (YSF M210X4.0P) 270 38 250 6—16 8 3-M12 85
SWT/F M220X3.0P (YSF M220X3.0P) 270 38 250 6—20 10 3-M12 85
SWT/F M220X4.0P (YSF M220X4.0P) 270 38 250 6—20 10 3-M12 85
SWT/F M240X3.0P (YSF M240X3.0P) 290 38 270 6—20 10 3-M12 85
SWT/F M240X4.0P (YSF M240X4.0P) 290 38 270 6—20 10 3-M12 85
SWT/F M260X3.0P (YSF M260X3.0P) 310 38 290 6—20 10 3-M12 85
SWT/F M260X4.0P (YSF M260X4.0P) 310 38 290 6—20 10 3-M12 85
SWT/F M270x4.0P (YSF M270x4.0P) 320 38 300 6—20 10 3-M12 85
SWT/F M280X4.0P (YSF M280X4.0P) 330 38 310 6—20 10 3-M12 85
SWT/F M300X4.0P (YSF M300X4.0P) 360 42 336 6—24 12 3-M12 85
