PHS

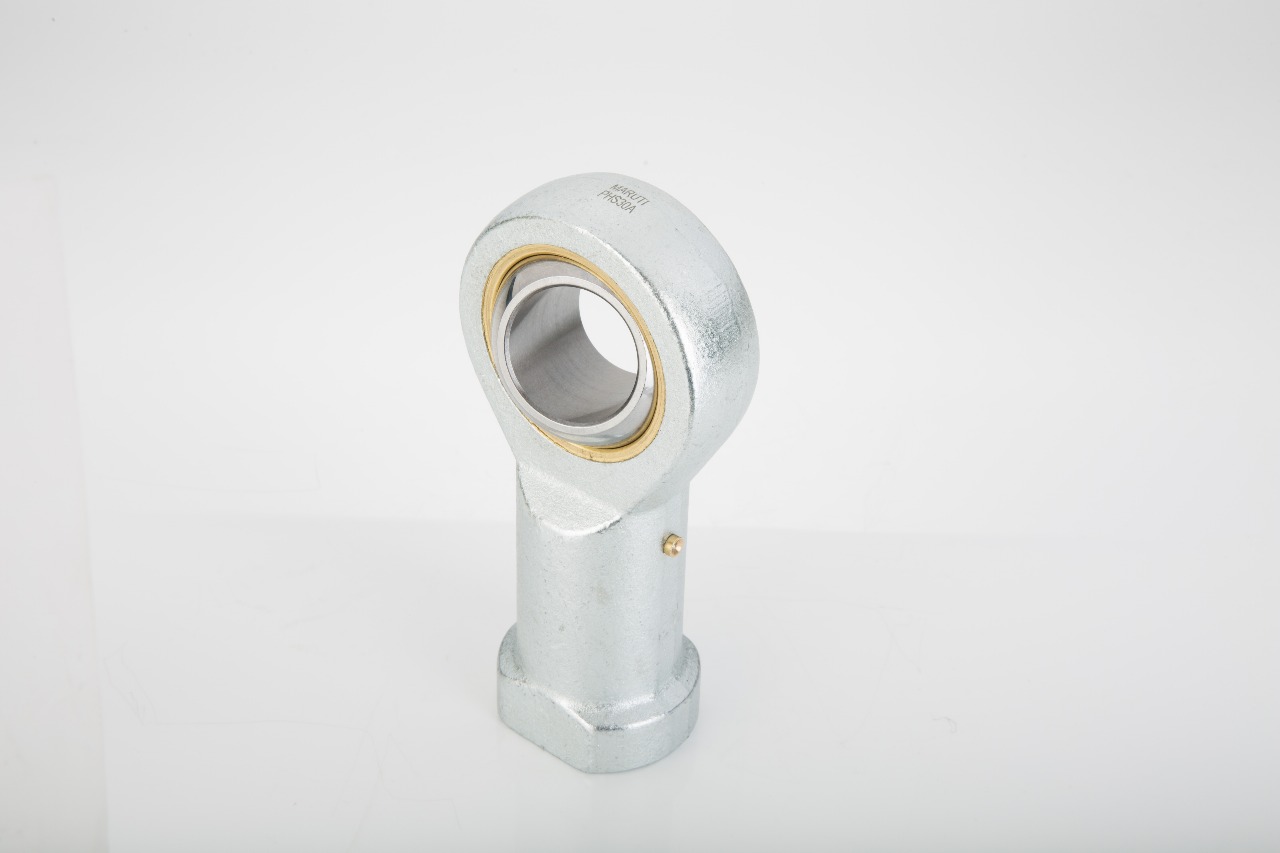

MARUTI PHS Female Rod End Bearings are highly reliable mechanical articulating joints designed to facilitate rotational and oscillating movement, primarily under heavy loads and low speeds. They are indispensable components in control mechanisms and linkage systems across various industrial and automotive applications. The PHS Series features a female (internal) thread in the housing, allowing them to be screwed onto a male-threaded rod or linkage for robust and precise connection.

Description of the dimensions 1

Dimensions

Select Part No d d_6H B C W L_1_min d2 L4 H_1 L5 d_4 d_k d_l d_k Load Ratings Kn dyn C Load Ratings kN stat C_o Weight kg
PHS4 4 M4x0.7 7 5.25 8 8 14 6.5 24 31 4 8 9.5 9.525 3 5 0.009
PHS5 5 M5x0.8 8 6 10 9 16 7.7 27 35 4 8.5 11 11.11 3.25 5.7 0.016
PHS6 6 M6x1.0 9 6.75 12 11 18 8.96 30 39 5 10 13 12.7 4.3 7.2 0.022
PHS8 8 M8x1.25 12 9 16 14 22 10.4 36 47 5 12.5 16 15.875 7.2 11.6 0.047
PHS10 10 M10x1.5 14 10.5 20 17 26 12.9 43 56 6.5 15 19 19.05 10 14.5 0.077
PHS10-1 10 M10x1.25 14 10.5 20 17 26 12.9 43 56 6.5 15 19 19.05 10 14.5 0.077
PHS12 12 M12x1.75 16 12 22 19 30 15.4 50 65 6.5 17.5 22 22.225 13.4 17 0.1
PHS12-1 12 M12x1.25 16 12 22 19 30 15.4 50 65 6.5 17.5 22 22.225 13.4 17 0.1
PHS14 14 M14x2.0 19 13.5 25 22 34 16.9 57 74 8 20 25 25.4 17 24 0.16
PHS14-1 14 M14x1.5 19 13.5 25 22 34 16.9 57 74 8 20 25 25.4 17 24 0.16
PHS16 16 M16x2.0 21 15 28 22 40 19.4 64 84 8 22 27 28.575 21.6 28.5 0.22
PHS16-1 16 M16x1.5 21 15 28 22 40 19.4 64 84 8 22 27 28.575 21.6 28.5 0.22
PHS18 18 M18x1.5 23 16.5 32 27 44 21.9 71 93 10 25 31 31.75 26 42.5 0.32
PHS20 20 M20x1.5 25 18 33 30 50 24.4 77 102 10 27.5 34 34.925 31.5 42.5 0.42
PHS22 22 M22x1.5 28 20 37 32 54 25.8 84 111 12 30 38 38.1 38 57 0.54
PHS25 25 M24x2.0 31 22 42 36 60 29.6 94 124 12 33.5 42 42.86 47.5 68 0.73
PHS28 28 M27x2.0 35 24 48 41 66 32.3 103 136 14 37 46 47.63 58 75 0.98
PHS30 30 M30x2.0 37 25 51 41 70 34.8 110 145 15 40 50 50.8 64 88 1.1
PHS30-1 30 M27x2.0 37 25 51 41 70 34.8 110 145 15 40 50 50.8 64 88 1.1
