POS

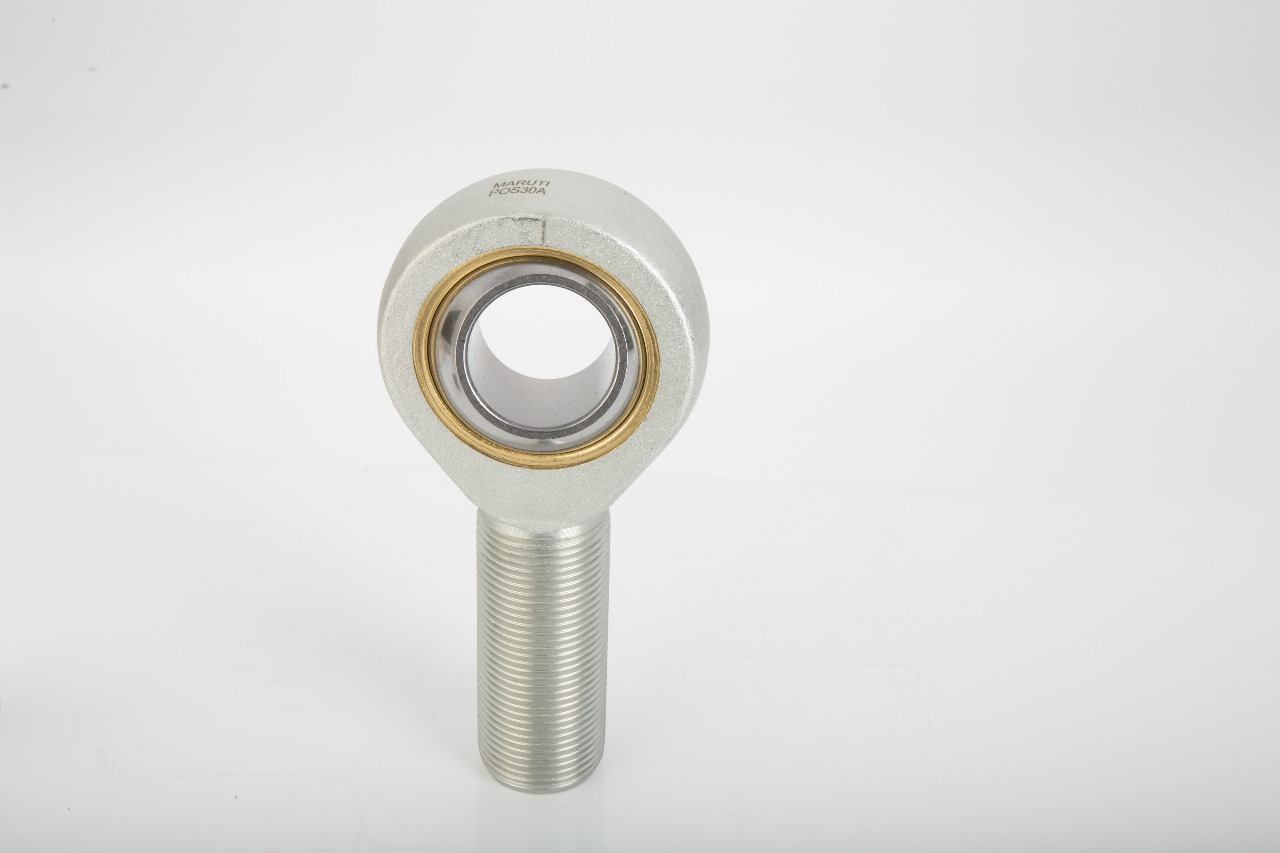

The MARUTI POS Series Rod End Bearing is a high-performance mechanical articulating joint featuring a Male-Threaded shank (stud) and an integrated spherical plain bearing. These rod ends are essential components in machinery linkages, providing the flexibility to accommodate angular misalignment and support complex motion.

Description of the dimensions 2

Dimensions

Select Product d d_6H B C_1 L_1_min d2 h L2 D_k R_ls d_1 a_k dyn C stat C_o Weight kg
POS5 5 M5x0.8 8 6 20 16 33 41 11.11 0.3 7.7 13 3.25 5.7 0.013
POS6 6 M6x1.0 9 6.75 22 18 36 45 12.7 0.3 8.96 13 4.3 7.2 0.02
POS8 8 M8x1.25 12 9 25 22 42 53 15.875 0.3 10.4 14 7.2 11.6 0.03
POS10 10 M10x1.5 14 10.5 29 26 48 61 19.05 0.3 12.9 13 10 14.5 0.055
POS12 12 M12x1.75 16 12 33 30 54 69 22.225 0.3 15.4 13 13.4 17 0.085
POS12-1 12 M12x1.25 16 12 33 30 54 69 22.225 0.3 15.4 13 13.4 17 0.085
POS14 14 M14x2.0 19 13.5 36 34 60 77 25.4 0.3 16.9 16 17 24 0.14
POS16 16 M16x2.0 21 15 40 40 66 86 28.575 0.3 19.4 15 21.6 28.5 0.21
POS16-1 16 M16x1.5 21 15 40 40 66 86 28.575 0.3 19.4 15 21.6 28.5 0.21
POS18 18 M18x1.5 23 16.5 44 44 72 94 31.75 0.3 21.9 15 26 42.5 0.28
POS20 20 M20x1.5 25 18 47 50 78 103 34.925 0.3 24.4 14 31.5 52.5 0.38
POS22 22 M22x1.5 28 20 51 54 84 111 38.1 0.3 25.8 15 38 57 0.48
POS25 25 M24x2.0 31 22 57 60 94 124 42.86 0.3 29.6 15 47.5 68 0.64
POS28 28 M27x2.0 35 24 62 66 103 136 47.63 0.3 32.3 15 58 75.5 0.96
POS30 30 M30x2.0 37 25 66 70 110 145 50.8 0.3 34.8 17 64 88 1.1
