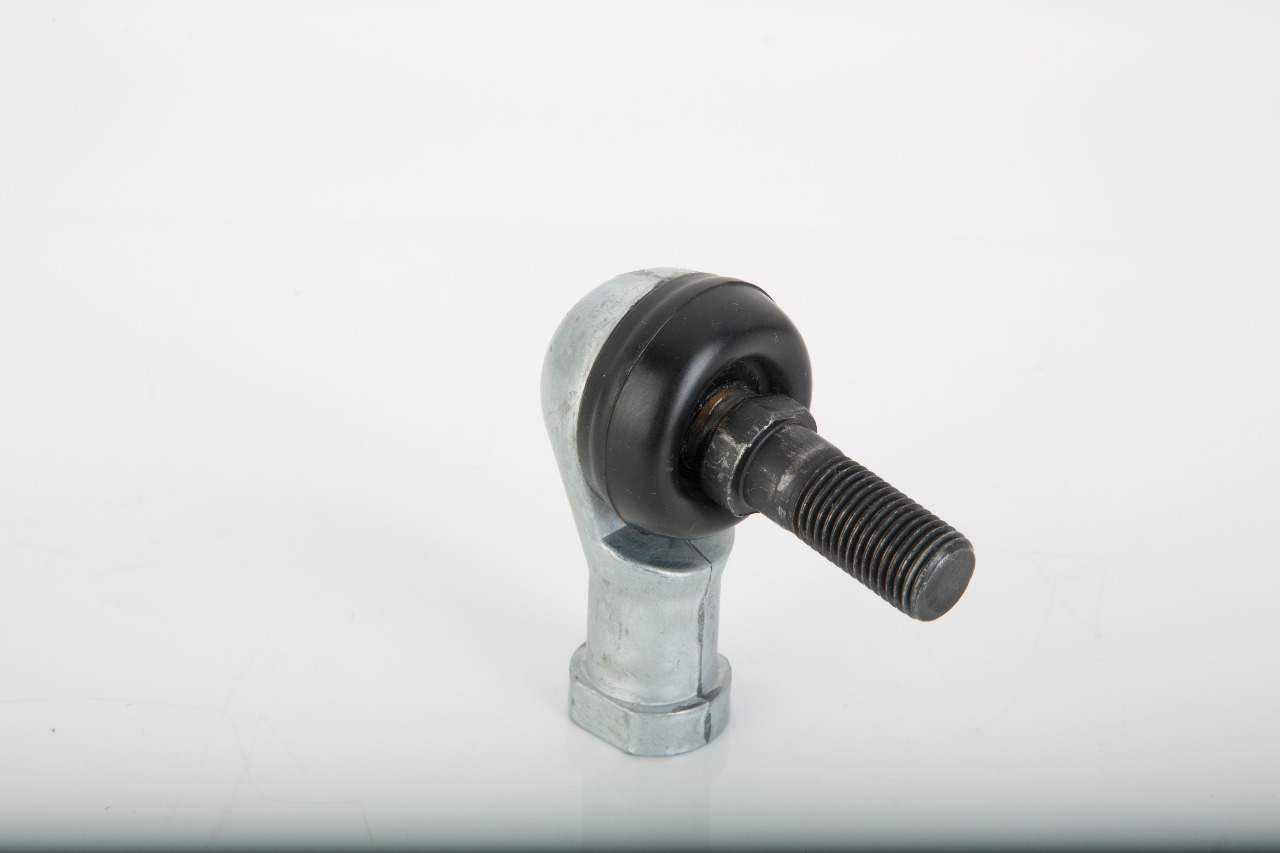

SQ-RBL-LHSA

Description of the product 3

Description of the dimensions 3

Product	d	d_1	d_2_min	d_3_min	d_3_max	I_1	I_2	S_1	L_1_max	L_2	L_3_max	D_1_min	D_2_max	D_3_max	S_2	a°	KN Load Ratings	Weight kg
SQ 5-RS	5	M5x0.8	9	19	29	8	10	21	7	35	27	4	14	9	11	16	9	25
SQ 6-RS	6	M6x1	10	20	35.5	11	11	26	8	40	30	5	14	10	13	19	11	25
SQ 8-RS	8	M8x1.25	12	24	42.5	12	14	31	10	48	36	5	17	12.5	16	23	14	25
SQ 10-RS	10	M10x1.5	14	30	50.5	15	17	37	11	57	43	6.5	21	15	19	27	17	25
SQ 10-RS-1	10	M10x1.5	14	30	56.5	21	17	43	11	57	43	6.5	21	15	19	27	17	25
SQ 12-RS	12	M12x1.75	17	32	57.5	17	19	42	15	66	50	6.5	25	17.5	22	31	19	25
SQ 12-RS-1	12	M12x1.25	17	32	64.5	24	19	49	15	66	50	6.5	25	17.5	22	31	19	25
SQ 14-RS	14	M14x2	19	38	73.5	22	21.5	56	17	75	57	8	26	20	25	35	22	25
SQ 14-RS-1	14	M14x1.5	19	38	79.5	28	21.5	62	17	75	57	8	26	20	25	35	22	25
SQ 16-RS	16	M16x2	22	44	79.5	23	23.5	60	19	84	64	8	32	22	27	39	22	20
SQ 16-RS-1	16	M16x1.5	22	44	85.5	29	23.5	66	19	84	64	8	32	22	27	39	22	20
SQ 18-RS	18	M18x1.5	23	45	90	25	26.5	68	20	93	71	10	34	25	31	44	27	20
SQ 20-RS	20	M20x1.5	27	50	90	25	27	68	24	99	77	10	35	27.5	34	44	30	20
SQ 22-RS	22	M22x1.5	27	52	95	26	28	70	24	109	84	12	41	30	37	50	32	16
