SQZ-RBI

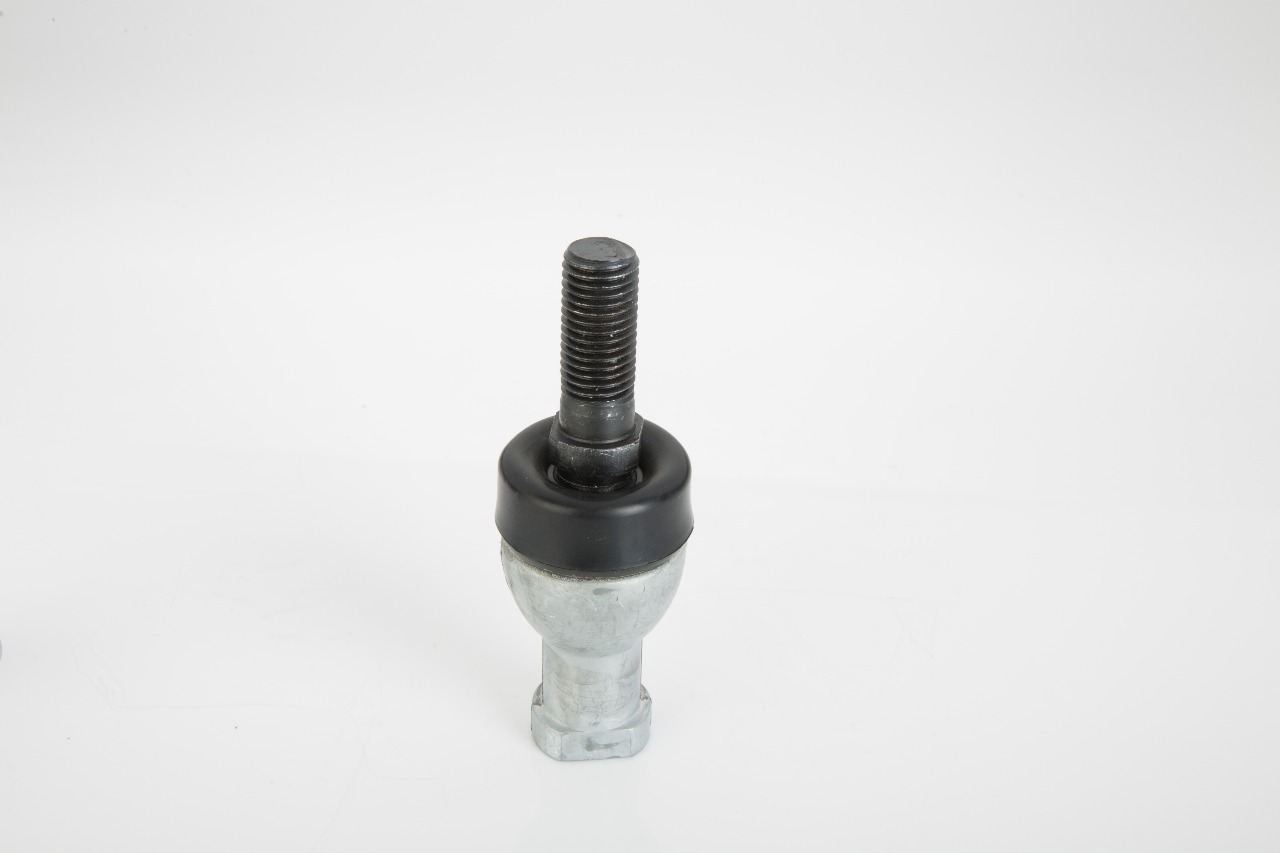

The MARUTI SQZ-RBI Series (also known as SQZ-RS and RBI-D) represents a high-precision, straight ball joint rod end, engineered for efficient transmission of motion and loads in mechanical linkages. As an authorized distributor of MARUTI Rodend Bearings, V.M Traders guarantees genuine quality for applications requiring superior durability and angular alignment compensation.

Description of the dimensions 4

Dimensions

Select Product d d_1 d_2_min d_3_max I_1 I_2 S_1 L_1 L_2_max L_3_max D_1 D_2 D_3 S_2 a° KN Load Ratings Weight kg
SQZ 5-RS 5 M5x0.8 9 20 8 11 7 46 24 4 12 9 11 17 15 2.8 0.025
SQZ 6-RS 6 M6x1 10 20 11 12.2 8 55.2 28 5 15 10 13 20 11 3.7 0.041
SQZ 8-RS 8 M8x1.25 12 24 12 16 10 6.5 32 5 16 12.5 16 24 14 5.8 0.075
SQZ 10-RS 10 M10x1.5 14 30 15 19.5 11 74.5 35 6.5 18 15 19 28 17 8.4 0.12
SQZ 10-RS-1 10 M10x1.25 14 30 21 19.5 11 80.5 35 6.5 18 15 19 28 17 8.4 0.12
SQZ 12-RS 12 M12x1.75 17 32 17 21 15 84 40 6.5 20 17.5 22 32 19 11 0.18
SQZ 12-RS-1 12 M12x1.25 17 32 24 21 15 91 40 6.5 20 17.5 22 32 19 11 0.18
SQZ 14-RS 14 M14x2 19 38 22 23.5 17 103 45 8 25 20 25 36 22 15 0.27
SQZ 14-RS-1 14 M14x1.5 19 38 28 23.5 17 109 45 8 25 20 25 36 22 15 0.27
SQZ 16-RS 16 M16x2 22 44 23 25.5 19 112 50 8 27 22 27 40 22 15 0.36
SQZ 16-RS-1 16 M16x1.5 22 44 29 25.5 19 118 50 8 27 22 27 40 22 15 0.36
SQZ 18-RS 18 M18x1.5 23 45 25 31 20 130.5 58 10 32 25 31 45 27 19 0.54
SQZ 20-RS 20 M20x1.5 27 50 25 29 24 133 63 10 38 27.5 34 45 30 19 0.57
SQZ 22-RS 22 M22x1.5 27 52 26 33 24 145 70 12 43 30 37 50 32 23 0.76
