AS Axial Bearing Washer

The INA-Schaeffler AS Axial Bearing Washers are precision-engineered components designed to serve as raceways for axial needle roller and cage assemblies or axial cylindrical roller bearings. These washers are particularly useful when the adjacent machine parts cannot be used as raceways but are sufficiently rigid and geometrically precise.

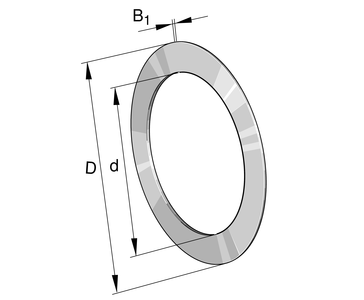

Description of the dimensions 7

Dimensions

Select Product d mm(Bore Diameter) D mm(Outside Diameter) B mm (Width) Ca (N) (Basic dynamic load rating, axial) C0a (N)(Basic static load rating, axial)
AS0821 8 21 1 - -
AS100135 100 135 1 - -
AS1024 10 24 1 - -
AS110145 110 145 1 - -
AS120155 120 155 1 - -
AS1226 12 26 1 - -
AS130170 130 170 1 - -
AS140180 140 180 1 - -
AS150190 150 190 1 - -
AS1528 15 28 1 - -
AS160200 160 200 1 - -
AS1730 17 30 1 - -
AS2035 20 35 1 - -
AS2542 25 42 1 - -
AS3047 30 47 1 - -
AS3552 35 52 1 - -
AS4060 40 60 1 - -
AS4565 45 65 1 - -
AS5070 50 70 1 - -
AS5578 55 78 1 - -
AS6085 60 85 1 - -
AS6590 65 90 1 - -
AS7095 70 95 1 - -
AS75100 75 100 1 - -
AS85110 85 110 1 - -
AS90120 90 120 1 - -
