AXK Needle Thrust

The INA-Schaeffler AXK Needle Thrust Bearings are high-precision, single-direction axial needle roller bearings designed to support high axial loads in compact spaces. These bearings are ideal for applications where only axial forces are present, and space in the axial direction is limited.

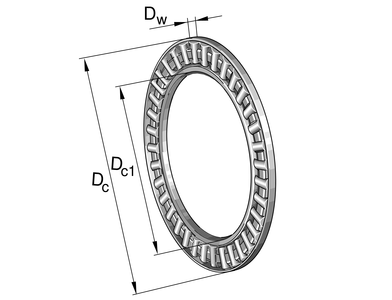

Description of the dimensions 6

Dimensions

Select Product d mm(Bore Diameter) D mm(Outside Diameter) B mm (Width) Ca (N) (Basic dynamic load rating, axial) C0a (N)(Basic static load rating, axial)
AXK0414-TV/0-10 4 14 2 4400 8000
AXK0515-TV/0-10 5 15 2 4750 9200
AXK0619-TV/0-10 6 19 2 6800 15500
AXK0821-TV/0-10 8 21 2 7800 19400
AXK100135-A/0-10 100 135 4 91000 560000
AXK1024-A/0-10 10 24 2 9200 25500
AXK110145-A/0-10 110 145 4 97000 620000
AXK120155-A/0-10 120 155 4 102000 680000
AXK1226-A/0-10 12 26 2 9900 29000
AXK130170-A/0-10 130 170 5 134000 840000
AXK140180-A/0-10 140 180 5 139000 900000
AXK150190-A/0-10 150 190 5 143000 960000
AXK1528-A/0-10 15 28 2 11400 36000
AXK160200-A/0-10 160 200 5 148000 1020000
AXK1730-A/0-10 17 30 2 12000 39500
AXK2035-A/0-10 20 35 2 13100 46500
AXK2542-A/0-10 - - - - -
AXK3047-A/0-10 - - - - -
AXK3552-A/0-10 35 52 2 17900 81000
AXK4060-A/0-10 40 60 3 28000 114000
AXK4565-A/0-10 - - - - -
AXK5070-A/0-10 50 70 3 32000 143000
AXK5578-A/0-10 55 78 3 38500 186000
AXK6085-A/0-10 60 85 3 45000 234000
AXK6590-A/0-10 65 90 3 47000 255000
AXK7095-A/0-10 70 95 4 54000 255000
AXK75100-A/0-10 75 100 4 55000 265000
AXK80105-A/0-10 80 105 4 57000 280000
AXK85110-A/0-10 85 110 4 58000 290000
AXK90120-A/0-10 90 120 4 73000 405000
