EGB-PLAIN BUSHES

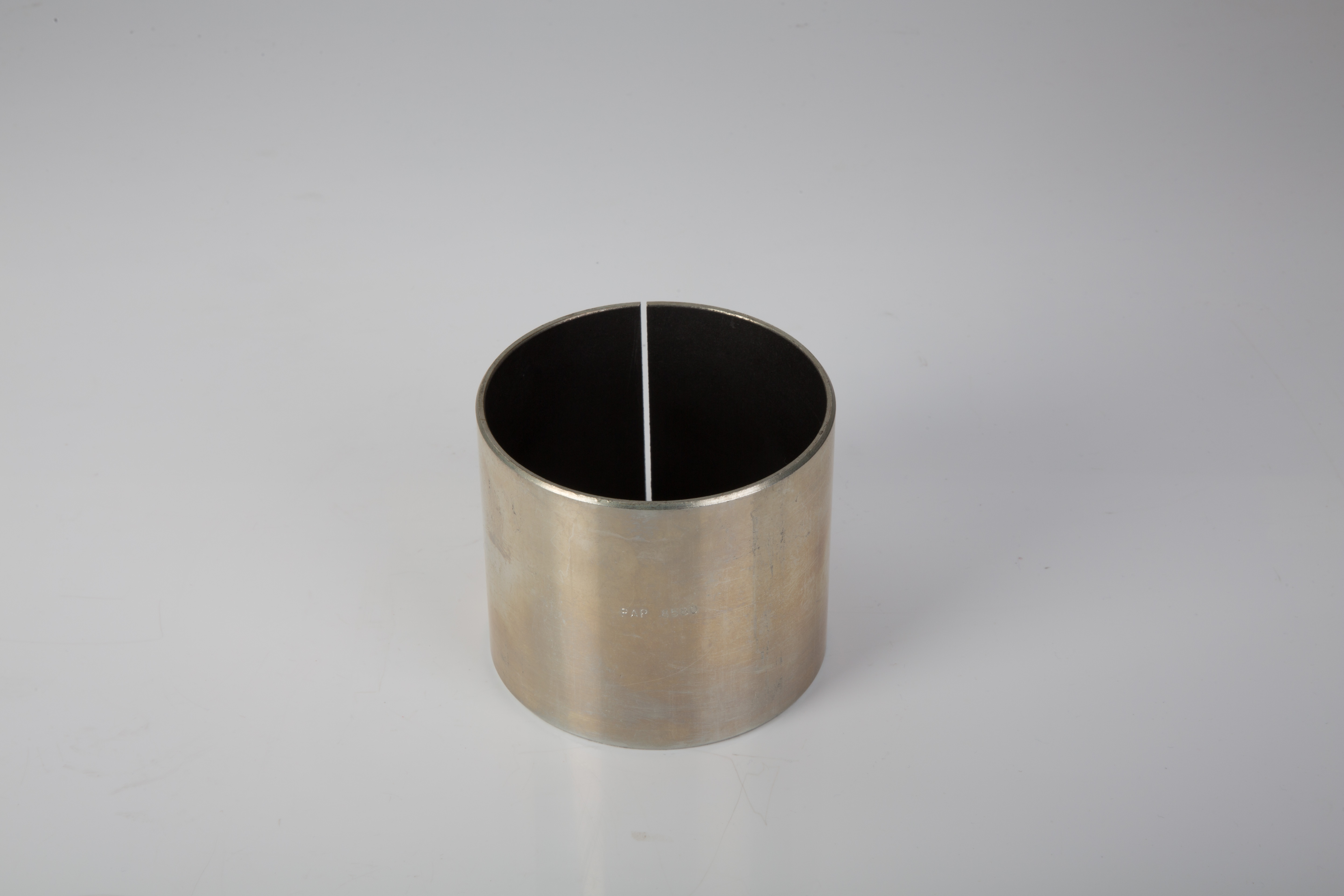

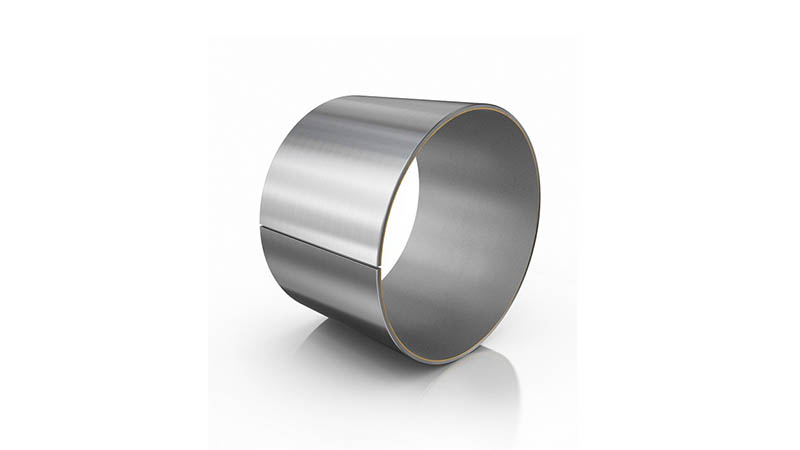

The INA-Schaeffler EGB-PLAIN BUSHES Bearings are high-precision, maintenance-free plain bearings designed to support high radial loads in compact spaces. These bearings are ideal for applications where lubrication is difficult or impossible, and space constraints exist.

Description of the dimensions 9

Dimensions

Select Product d (mm) D (mm) B (mm) Cr (N) C0r (N)
EGB0305-E40-Y 3 4.5 5 2100 3750
EGB0406-E40-Y 4 5.5 6 3360 6000
EGB0410-E40-Y 4 5.5 10 5600 10000
EGB0505-E40-Y 5 7 5 3500 6250
EGB0510-E40-Y 5 7 10 7000 12500
EGB0606-E40-B-Y 6 8 6 5040 9000
EGB0606-E40-Y 6 8 6 5040 9000
EGB0608-E40-Y 6 8 8 6720 12000
EGB0610-E40-B-Y 6 8 10 8400 15000
EGB0610-E40-Y 6 8 10 8400 15000
EGB0710-E40-Y 7 9 10 9800 17500
EGB0806-E40-Y 8 10 6 6720 12000
EGB0808-E40-B-Y 8 10 8 8960 16000
EGB0808-E40-Y 8 10 8 8960 16000
EGB0810-E40-Y 8 10 10 11200 20000
EGB0812-E40-Y 8 10 12 13400 24000
EGB100115-E40-B-Y 100 105 115 1610000 2880000
EGB100115-E40-Y 100 105 115 1610000 2880000
EGB10060-E40-B-Y 100 105 60 840000 1500000
EGB1010-E40-Y 10 12 10 14000 25000
EGB1012-E40-Z 10 12 12 16800 30000
EGB1015-E40-B-Y 10 12 15 21000 37500
EGB1015-E40-Y 10 12 15 21000 37500
EGB1020-E40-B-Y 10 12 20 28000 50000
EGB1020-E40-Z 10 12 20 28000 50000
EGB110115-E40-Y 110 115 115 1770000 3160000
EGB11060-E40-Y 110 115 60 924000 1650000
EGB12060-E40-Y 120 125 60 1010000 1800000
EGB1208-E40-Z 12 14 8 13400 24000
EGB1210-E40 - - - - -
EGB1210-E40-Z 12 14 10 16800 30000
EGB1212-E40-Z 12 14 12 20200 36000
EGB1215-E40-Y 12 14 15 25200 45000
EGB1215-E50-Y 12 14 15 12600 25200
EGB1220-E40-B-Y 12 14 20 33600 60000
EGB1220-E40-Z 12 14 20 33600 60000
EGB1225-E40-Z 12 14 25 42000 75000
EGB125100-E40-Y 125 130 100 1750000 3130000
EGB130100-E40-Y 130 135 100 1820000 3250000
EGB13060-E40-Y 130 135 60 1090000 1950000
EGB140100-E40-Y 140 145 100 1960000 3500000
EGB1410-E40-Y 14 16 10 19600 35000
EGB1412-E40-Y 14 16 12 23500 42000
EGB1415-E40-B-Y 14 16 15 29400 52500
EGB150100-E40-Y 150 155 100 2100000 3750000
EGB15060-E40-Y 150 155 60 1260000 2250000
EGB1510-E40-Z 15 17 10 21000 37500
EGB1515-E40 - - - - -
EGB1515-E40-B-Y 15 17 15 31500 56300
EGB1515-E40-Z 15 17 15 31500 56300
EGB1520-E40-Z 15 17 20 42000 75000
EGB1525-E40-B-Y 15 17 25 52500 93800
EGB1525-E40-Y 15 17 25 52500 93800
EGB1610-E40 - - - - -
EGB1610-E40-Z 16 18 10 22400 40000
EGB1612-E40-Z 16 18 12 26900 48000
EGB1615-E40-Z 16 18 15 33600 60000
EGB1615-E50-Y 16 18 15 16800 33600
EGB1620-E40-Z 16 18 20 44800 80000
EGB1625-E40-Z 16 18 25 56000 100000
EGB180100-E40-Y 180 185 100 2520000 4500000
EGB1815-E40-B-Y 18 20 15 37800 67500
EGB1815-E40-Y 18 20 15 37800 67500
EGB1820-E40-Z 18 20 20 50400 90000
EGB1820-E50-Y 18 20 20 25200 50400
EGB1825-E40-B-Y 18 20 25 63000 113000
EGB1825-E40-Z 18 20 25 63000 113000
EGB200100-E40-Y 200 205 100 2800000 5000000
EGB2010-E40-Z 20 23 10 28000 50000
EGB2015-E40-Z 20 23 15 42000 75000
EGB2015-E50-Y 20 23 15 21000 42000
EGB2020-E40-B-Y 20 23 20 56000 100000
EGB2020-E40-Z 20 23 20 56000 100000
EGB2025-E40-B-Y 20 23 25 70000 125000
EGB2025-E40-Y 20 23 25 70000 125000
EGB2030-E40-Y 20 23 30 84000 150000
EGB220100-E40-Y 220 225 100 3080000 5500000
EGB2220-E40-Z 22 25 20 61600 110000
EGB2225-E40-Y 22 25 25 77000 138000
EGB2425-E40-Z 24 27 25 84000 150000
EGB2430-E40-B-Y 24 27 30 101000 180000
EGB2515-E40 - - - - -
EGB2515-E40-Z 25 28 15 52500 93800
EGB2520-E40-Y 25 28 20 70000 125000
EGB2520-E50-Y 25 28 20 35000 70000
EGB2525-E40-Z 25 28 25 87500 156000
EGB2530-E40 - - - - -
EGB2530-E40-B-Y 25 28 30 105000 188000
EGB2530-E40-Z 25 28 30 105000 188000
EGB2550-E40-Y 25 28 50 175000 313000
EGB2830-E40-Y 28 32 30 118000 210000
EGB3010-E40-Z 30 34 10 42000 75000
EGB3020-E40-Z 30 34 20 84000 150000
EGB3020-E50-Y 30 34 20 42000 84000
EGB3025-E40-Z 30 34 25 105000 188000
EGB3030-E40-Y 30 34 30 126000 225000
EGB3040-E40-Y 30 34 40 168000 300000
EGB3240-E40-Y 32 36 40 179000 320000
EGB3520-E40-B-Y 35 39 20 98000 175000
EGB3520-E40-Z 35 39 20 98000 175000
EGB3530-E40-B-Y 35 39 30 147000 263000
EGB3530-E40-Z 35 39 30 147000 263000
EGB3540-E40-Y 35 39 40 196000 350000
EGB4020-E40-Y 40 44 20 112000 200000
EGB4030-E40-Y 40 44 30 168000 300000
EGB4030-E50-Y 40 44 30 84000 168000
EGB4040-E40-Y 40 44 40 224000 400000
EGB4050-E40-B-Y 40 44 50 280000 500000
EGB4050-E40-Y 40 44 50 280000 500000
EGB4050-E50-Y 40 44 50 140000 280000
EGB4530-E40-Z 45 50 30 189000 338000
EGB4540-E40-Y 45 50 40 252000 450000
EGB4550-E40-Y 45 50 50 315000 563000
EGB5020-E40-Y 50 55 20 140000 250000
EGB5030-E40-B-Y 50 55 30 210000 375000
EGB5030-E40-Y 50 55 30 210000 375000
EGB5040-E40-Y 50 55 40 280000 500000
EGB5040-E50-Y 50 55 40 140000 280000
EGB5060-E40-Y 50 55 60 420000 750000
EGB5540-E40-Y 55 60 40 308000 550000
EGB6030-E40-Y 60 65 30 252000 450000
EGB6040-E40-Z 60 65 40 336000 600000
EGB6050-E40-B-Y 60 65 50 420000 750000
EGB6060-E40-Y 60 65 60 504000 900000
EGB6070-E40-Z 60 65 70 588000 1050000
EGB6530-E40-Y 65 70 30 273000 488000
EGB6540-E40-Y 65 70 40 364000 650000
EGB6550-E40-Y 65 70 50 455000 813000
EGB7040-E40-Y 70 75 40 392000 700000
EGB7050-E40-Z 70 75 50 490000 875000
EGB7070-E40-Z 70 75 70 686000 1230000
EGB7550-E40-Z 75 80 50 525000 938000
EGB7560-E40-Y 75 80 60 630000 1130000
EGB7580-E40-Z 75 80 80 840000 1500000
EGB80100-E40-B-Y 80 85 100 1120000 2000000
EGB8040-E50-Y 80 85 40 224000 448000
EGB8060-E40-Y 80 85 60 672000 1200000
EGB8080-E50-Y 80 85 80 448000 896000
EGB90100-E40-Y 90 95 100 1260000 2250000
EGB9060-E40-Y 90 95 60 756000 1350000
EGB95100-E40-Y 95 100 100 1330000 2380000
EGBZ1208-E40-Y 19.05 22.225 12.7 33900 60500
EGBZ1412-E40-Y 22.225 25.4 19.05 59300 106000
EGBZ1616-E40-Y 25.4 28.575 25.4 90300 161000
EGBZ2420-E40-Y 38.1 42.069 31.75 169000 302000
