KWSE-CARRIAGES

The INA-Schaeffler KWSE Carriages Bearings are high-precision linear motion guide carriages designed for smooth, stable, and high-load linear movement. These carriages are engineered for applications requiring high rigidity, precise guidance, and reliable performance over long stroke lengths.

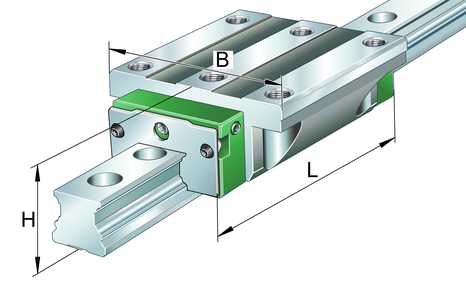

Description of the dimensions 14

Dimensions

Select Product L (mm) B (mm) H (mm) C (N) C0 (N)
KWSE20-V1-G2 71.4 63 30 22000 52000
KWSE20-V1-G3 71.4 63 30 22000 52000
KWSE20-V2-G3 71.4 63 30 22000 52000
KWSE25-V1-G3 81.8 70 36 28000 67000
KWSE25-V2-G3 81.8 70 36 28000 67000
KWSE30-V0-G3 91.6 90 42 40000 80000
KWSE30-V1-G3 91.6 90 42 40000 80000
KWSE30-V2-G3 91.6 90 42 40000 80000
KWSE35-V1-G3 107.2 100 48 55000 102000
KWSE35-V2-G3 107.2 100 48 55000 102000
KWSE45-V1-G3 138.7 120 60 80000 174000
KWSE45-V2-G2 138.7 120 60 80000 174000
KWSE45-V2-G3 138.7 120 60 80000 174000
KWSE20-H-V1-G3 71.4 44 30 22000 52000
KWSE20-H-V2-G2 71.4 44 30 22000 52000
KWSE20-H-V2-G3 71.4 44 30 22000 52000
KWSE20-HL-V1-G3 91.9 44 30 28000 72000
KWSE20-L-V1-G3 91.9 63 30 28000 72000
KWSE20-L-V2-G3 91.9 63 30 28000 72000
KWSE25-H-V1-G2 81.8 48 40 28000 67000
KWSE25-H-V1-G3 81.8 48 40 28000 67000
KWSE25-H-V2-G3 81.8 48 40 28000 67000
KWSE25-HL-V1-G2 104.3 48 40 35300 93700
KWSE25-HL-V1-G3 104.3 48 40 35300 93700
KWSE25-HL-V2-G3 104.3 48 40 35300 93700
KWSE25-L-V1-G3 104.3 70 36 35300 93700
KWSE25-L-V2-G2 104.3 70 36 35300 93700
KWSE25-L-V2-G3 104.3 70 36 35300 93700
KWSE25-RROC-V1-G3 81.8 70 36 28000 67000
KWSE30-H-V1-G3 91.6 60 45 40000 80000
KWSE30-H-V2-G2 91.6 60 45 40000 80000
KWSE30-H-V2-G3 91.6 60 45 40000 80000
KWSE30-HL-V1-G3 119.3 60 45 51000 113000
KWSE30-HL-V2-G3 119.3 60 45 51000 113000
KWSE30-L-V1-G3 119.3 90 42 51000 113000
KWSE30-L-V2-G3 119.3 90 42 51000 113000
KWSE35-L-V1-G3 138.9 100 48 70000 145000
KWSE35-L-V2-G3 138.9 100 48 70000 145000
KWSE35-RROC-V1-G3 107.2 100 48 55000 102000
KWSE45-L-V2-G2 174.3 120 60 98000 236000
KWSE45-L-V2-G3 174.3 120 60 98000 236000
KWSE20-H 71.4 44 30 22000 52000
KWSE20-HL 91.9 44 30 28000 72000
KWSE20-L 91.9 63 30 28000 72000
KWSE25-H 81.8 48 40 28000 67000
KWSE25-HL 104.3 48 40 35300 93700
KWSE25-L 104.3 70 36 35300 93700
KWSE30-H 91.6 60 45 40000 80000
KWSE30-HL 119.3 60 45 51000 113000
KWSE30-L 119.3 90 42 51000 113000
KWSE35-L 138.9 100 48 70000 145000
KWSE45-L 174.3 120 60 98000 236000
KWSE20 71.4 63 30 22000 52000
KWSE25 81.8 70 36 28000 67000
KWSE30 91.6 90 42 40000 80000
KWSE35 107.2 100 48 55000 102000
KWSE45 138.7 120 60 80000 174000
KWSE25-HL-OS-V1-G2 - - - - -
