LS Series Thrust Washer

The LS Series Thrust Washer Bearings from INA / Schaeffler are high-precision, hardened thrust washers designed to accompany axial needle roller assemblies. They are used to support axial loads in applications where compactness and accuracy are essential.

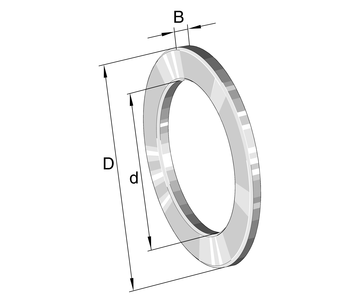

Description of the dimensions 5

Dimensions

Select Product d mm(Bore Diameter) D mm(Outside Diameter) B mm (Width) Ca (N) (Basic dynamic load rating, axial) C0a (N)(Basic static load rating, axial)
LS120155 120 155 7 - -
LS140180 140 180 9.5 - -
LS150190 150 190 9.5 - -
LS1730 17 30 2.75 - -
LS3552 35 52 3.5 - -
LS4060 40 60 3.5 - -
LS4565 45 65 4 - -
LS5070 50 70 4 - -
LS6085 60 85 4.75 - -
LS6590 65 90 5.25 - -
LS7095 70 95 5.25 - -
LS80105 80 105 5.75 - -
LS90120 90 120 6.5 - -
