PAW-EGW-THRUST WASHER STRIPS

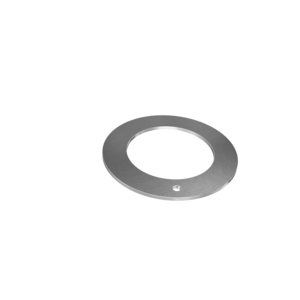

The INA-Schaeffler PAW-EGW Thrust Washer Strips are high-precision, single-direction axial bearing components designed to support high axial loads in compact spaces. These washer strips are ideal for applications where only axial forces are present, and space in the axial direction is limited.

Description of the dimensions 11

Dimensions

Select Product d mm D mm B mm Cr N C0r N
PAW12 (EGW12-E40-Z) 12 24 1.5 47500 84800
PAW26 (EGW26-E40-Z) 26 44 1.5 139000 247000
PAW38 (EGW38-E40-Z) 38 62 1.5 264000 471000
PAW42 (EGW42-E40-Z) 42 66 1.5 285000 509000
PAW48 (EGW48-E40-Z) 48 74 2 349000 623000
PAW52 (EGW52-E40-Z) 52 78 2 372000 664000
PAW10 (EGW10-E40-B-Y) 10 20 1.5 33000 58900
PAW12 (EGW12-E40-B-Y) 12 24 1.5 47500 84800
PAW14 (EGW14-E40-B-Y) 14 26 1.5 52800 94200
PAW20 (EGW20-E40-B-Y) 20 36 1.5 98500 176000
PAW26 (EGW26-E40-B-Y) 26 44 1.5 139000 247000
PAW32 (EGW32-E40-B-Y) 32 54 1.5 208000 371000
PAW38 (EGW38-E40-B-Y) 38 62 1.5 264000 471000
PAW48 (EGW48-E40-B-Y) 48 74 2 349000 623000
PAW52 (EGW52-E40-B-Y) 52 78 2 372000 664000
PAW62 (EGW62-E40-B-Y) 62 90 2 468000 836000
