MZ CAM CLUTCH

The Tsubaki MZ Series Cam Clutch is engineered for versatility and is the ideal choice for a wide range of general applications, including overrunning, indexing, and backstopping. These pre-lubricated units offer reliable performance and require virtually no maintenance, making installation and handling straightforward.

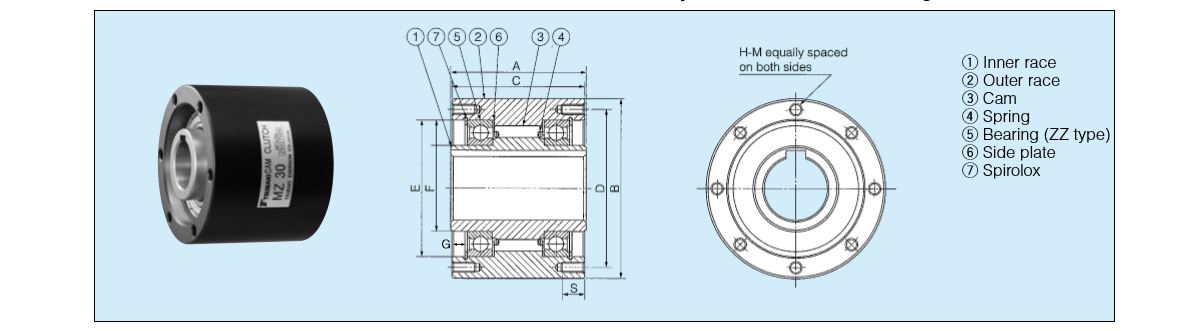

Description of the dimensions 1

Dimensions

Model	Torque Capacity (N·m)	Drag Torque (N·m)	Max. Overrunning Inner Race (r/min)	Max. Overrunning Outer Race (r/min)	Max. indexing (cycle/min)	Bore Size Dia (H7)	Bore Size Keyway	A	B	C	PCD D	E (M6)	F	G	H-M No. of Tapped Holes × Size × Pitch	S	Weight (o)	Model	Nominal diameter (mm)	Relative shaft tolerance (mm)
MZ15	186	0.2	2,200	900	150	15	5 × 2.3	62	68	60	58	47	25	5.5	6 × M5 × P0.8	10	1.4	MZ15	15	+0 to –0.018
MZ17	215	0.2	2,000	800	150	17	5 × 2.3	66	75	64	64	52	28	6.3	6 × M5 × P0.8	10	1.8	MZ17	17	+0 to –0.018
MZ20	323	0.29	1,900	700	150	20	6 × 2.8	67	80	65	68	55	30	7.6	6 × M6 × P1.0	12	2	MZ20	20	+0 to –0.021
MZ30-22	735	0.39	1,800	500	150	22	6 × 2.8	82	100	80	88	75	45	8.9	6 × M8 × P1.25	16	3.7
MZ30-25	735	0.39	1,800	500	150	25	8 × 3.3	82	100	80	88	75	45	8.9	6 × M8 × P1.25	16	3.7
MZ30	735	0.39	1,800	500	150	30	10 × 3.3	82	100	80	88	75	45	8.9	6 × M8 × P1.25	16	3.7	MZ30	30	+0 to –0.021
MZ35	1,080	0.49	1,700	300	150	35	10 × 3.3	87	110	85	95	80	50	8.7	6 × M8 × P1.25	16	4.8	MZ35	35	+0 to –0.025
MZ45-40	1,620	0.69	1,700	300	150	40	12 × 3.3	92	125	90	110	95	60	8.4	8 × M8 × P1.25	16	6.2
MZ45	1,620	0.69	1,700	300	150	45	14 × 3.8	92	125	90	110	95	60	8.4	8 × M8 × P1.25	16	6.2	MZ45	45	+0 to –0.025
MZ60-50	2,110	0.98	1,600	250	150	50	14 × 3.8	102	155	100	140	125	80	9.1	8 × M8 × P1.25	16	10.2
MZ60-55	2,110	0.98	1,600	250	150	50	16 × 4.3	102	155	100	140	125	80	9.1	8 × M8 × P1.25	16	10.2
MZ60	2,110	0.98	1,600	250	150	50	18 × 4.4	102	155	100	140	125	80	9.1	8 × M8 × P1.25	16	10.2	MZ60	60	+0 to –0.030
MZ70-65	3,040	1.27	1,300	250	150	65	18 × 4.4	105	175	103	162	145	95	8.6	8 × M8 × P1.25	16	13.2
MZ70	3,040	1.27	1,300	250	150	65	20 × 4.9	105	175	103	162	145	95	8.6	8 × M8 × P1.25	16	13.2	MZ70	70	+0 to –0.030
