MZ-G CAM CLUTCH

The Tsubaki MZ-G Series Cam Clutch is a high-performance clutch pre-lubricated with grease for a long and maintenance-free service life. As part of the MZ series, the outer race periphery of the MZ-G has a ground finish, making it suitable for a wide variety of applications from low to high-speed operations. The installation of sprockets and other components is easily and securely achieved with the through-hole on the outer periphery of the outer race. The MZ-G series is ideal for indexing and backstopping applications, and all models are readily available for immediate delivery.

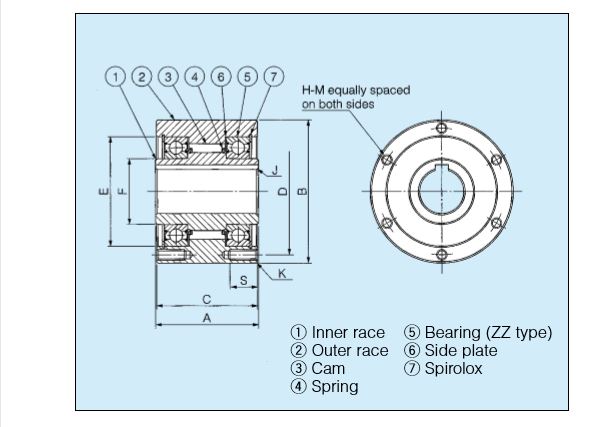

Description of the dimensions 1

Dimensions

Model	Torque Capacity (N·m)	Max. Overrunning Inner Race (r/min)	Max. Overrunning Outer Race (r/min)	Max. Indexing (cycle/min)	Drag Torque (N·m)	Bore size Dia. (H7)	Bore size Keyway	Bore size Chamfer J	A	C	B (h7)	F	E	K	PCD D	S	H-M No.of Tapped Holes ʷ Size ʷ Pitch	Weight (o)
MZ15G	186	2,200	900	150	0.2	15	5 × 2.3	0.8	55	53	68	25	47	1.3	58	10	6-M5 × 0.8	1.3
MZ17G	215	2,000	800	150	0.2	17	5 × 2.3	0.8	63	61	75	28	52	1.3	64	10	6-M5 × 0.8	1.7
MZ20G	323	1,900	700	150	0.29	20	5 × 2.3	0.8	64	62	80	30	55	1.3	68	12	6-M6 × 1.0	1.9
MZ30G-22	735	1,800	500	150	0.39	22	8 × 3.3	1	70	68	100	45	75	1.3	88	16	6-M8 × 1.25	3.2
MZ30G-25	735	1,800	500	150	0.39	25	8 × 3.3	1	70	68	100	45	75	1.3	88	16	6-M8 × 1.25	3.2
MZ30G	735	1,800	500	150	0.39	30	10 × 3.3	1	70	68	100	45	75	1.3	88	16	6-M8 × 1.25	3.2
MZ35G	1,080	1,700	300	150	0.49	35	10 × 3.3	1	78	76	110	50	80	1.3	95	16	6-M8 × 1.25	4.4
MZ45G-40	1,620	1,700	300	150	0.69	40	12 × 3.3	1.3	87	85	110	60	95	1.3	110	16	8-M8 × 1.25	6.2
MZ45G	1,620	1,700	300	150	0.69	45	12 × 3.3	1.3	87	85	125	60	95	1.3	110	16	8-M8 × 1.25	6.2
MZ60G-50	2,110	1,600	250	150	0.98	50	14 × 3.8	1.5	90	88	125	80	125	1.3	140	16	8-M8 × 1.25	9.5
MZ60G-55	2,110	1,600	250	150	0.98	55	16 × 4.3	1.5	90	88	155	80	125	1.3	140	16	8-M8 × 1.25	9.5
MZ60G	2,110	1,600	250	150	0.98	60	18 × 4.4	1.5	90	88	155	80	125	1.3	140	16	8-M8 × 1.25	9.5
MZ70G-65	3,040	1,300	250	150	1.27	65	18 × 4.4	1.8	105	103	175	95	145	1.3	162	16	8-M8 × 1.25	13.1
MZ70G	3,040	1,300	250	150	1.27	70	20 × 4.9	1.8	105	103	175	95	145	1.3	162	16	8-M8 × 1.25	13.1
