POWER LOCK ADN SERIES

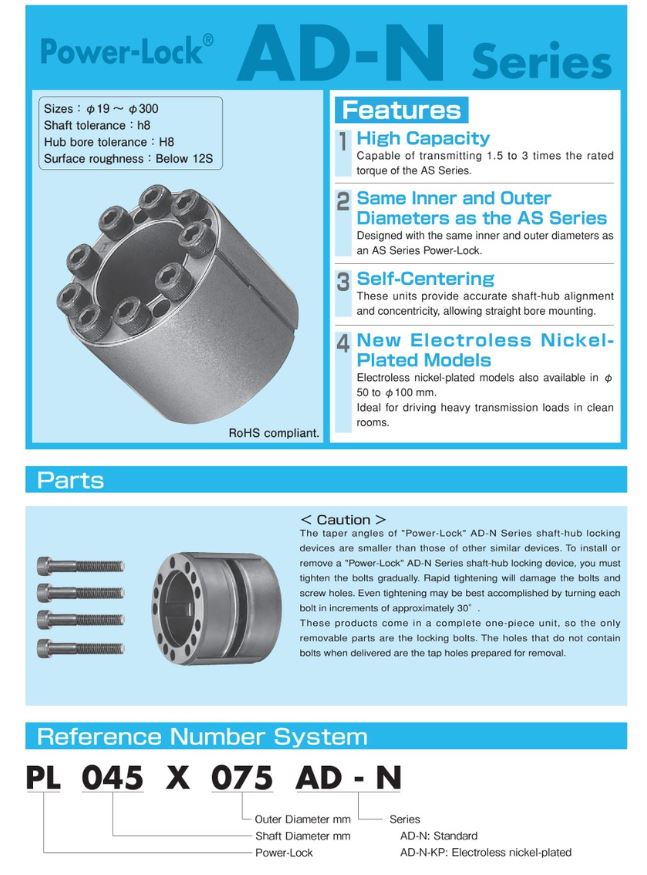

The Tsubaki POWER-LOCK AD-N Series is a high-capacity, keyless shaft-hub locking device engineered for superior power transmission. As an advanced solution, it eliminates the need for traditional keys, keyways, splines, or press fits, making installation and maintenance easier while significantly enhancing performance.

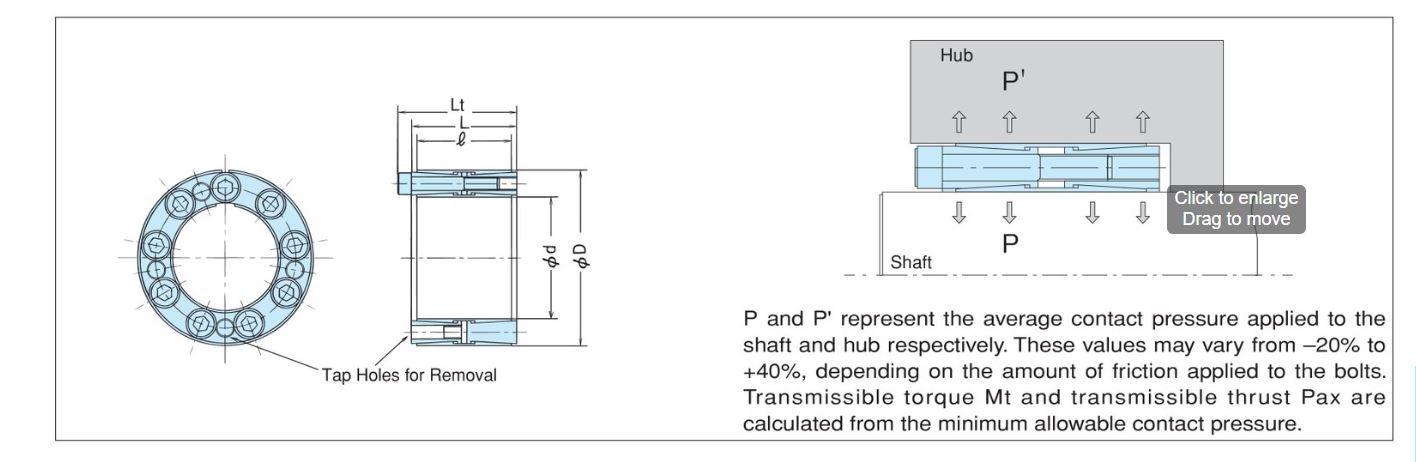

Description of the dimensions 1

Dimensions

Select Model No. d x D Shaft Diameter X Outer Diameter mm Dimensions mm l Dimensions mm L Dimensions mm Lt Transmissible torque Mt N.m Transmissible torque Mt (kgf.m) Transmissible Thrust pax kN Transmissible Thrust pax (kgf) Contact Pressure Shaft P Mpa Contact Pressure Shaft P (Kgf/mm2) Contact Pressure Hub P' Mpa Contact Pressure Hub P' (kgf/mm2) Locking Bolts Qty. Locking Bolts Size Locking Bolts Tightening Torque Ma N-m Locking Bolts Tightening Torque Ma (kgf-m) Mass kg
PL019X047 AD-N 30 35 41 382 39 40.6 4140 237 24.1 96 9.8 6 M6X28 16.7 1.7 0.36
PL020X047 AD-N 30 35 41 402 41 40.6 4140 225 22.9 96 9.8 6 M6X28 16.7 1.7 0.35
PL022X047AD-N 30 35 41 441 45 40.6 4140 204 20.8 96 9.8 6 M6X28 16.7 1.7 0.33
PL024X050 AD-N 35 40 46 647 66 54.2 5530 214 21.8 103 10.5 8 M6X30 16.7 1.7 0.42
PL025X050 AD-N 35 40 46 676 69 54.2 5530 205 21 103 10.5 8 M6X30 16.7 1.7 0.41
PL028X055 AD-N 35 40 46 755 77 54.2 5530 183 18.7 93 9.5 8 M6X30 16.7 1.7 0.49
PL030X055 AD-N 35 40 46 784 80 54.2 5530 171 17.5 93 9.5 8 M6X30 16.7 1.7 0.46
PL032X060 AD-N 45 50 56 1270 130 81 8300 189 19.2 101 10.3 10 M6X35 16.7 1.7 0.72
PL035X060 AD-N 45 50 56 1370 140 81 8300 172 17.6 101 10.3 10 M6X35 16.7 1.7 0.66
PL038X065 AD-N 52 57 63 1670 170 89 9100 151 15.4 88 9 11 M6X40 16.7 1.7 0.88
PL040X065 AD-N 52 57 63 1670 180 89 9100 144 14.7 88 9 11 M6X40 16.7 1.7 0.83
PL042X075 AD-N 56 64 72 1760 360 170 17300 192 19.6 108 11 9 M8X50 40.2 4.1 1.36
PL045X075 AD-N 56 64 72 3530 390 170 17300 179 18.3 108 11 9 M8X50 40.2 4.1 1.27
PL048X080 AD-N 56 64 72 3820 415 170 17300 168 17.1 101 10.3 9 M8X50 40.2 4.1 1.43
PL050X080 AD-N 56 64 72 4070 430 170 17300 162 16.5 101 10.3 9 M8X50 40.2 4.1 1.38
PL055X085 AD-N 56 64 72 4210 470 170 17300 147 15 95 9.7 9 M8X50 40.2 4.1 1.49
PL060X090 AD-N 56 64 72 4610 630 208 21200 165 16.8 110 11.2 11 M8X50 40.2 4.1 1.59
PL065X095 AD-N 56 64 72 6170 690 208 21200 130 13.3 89 9.1 11 M8X50 40.2 4.1 1.71
PL070X110 AD-N 70 78 88 6760 1180 330 33700 179 18.3 114 11.6 11 M10X70 81.3 8.3 3.18
PL075X115 AD-N 70 78 88 11600 1260 330 33700 167 17 109 11.1 11 M10X70 81.3 8.3 3.36
PL080X120 AD-N 70 78 88 12300 1470 360 36700 171 17.4 114 11.6 12 M10X70 81.3 8.3 3.52
PL085X125 AD-N 70 78 88 14400 1560 360 36700 161 16.4 109 11.1 12 M10X70 81.3 8.3 3.7
PL090X130 AD-N 70 78 88 17500 1790 390 39800 165 16.8 114 11.6 13 M10X70 81.3 8.3 3.88
PL095X135 AD-N 90 78 88 18500 1890 390 39800 156 15.9 110 11.2 13 M10X70 81.3 8.3 4.06
PL100X145 AD-N 90 100 112 26500 2700 531 54200 157 16 108 11 12 M12X90 142 14.5 6.13
PL110X155 AD-N 104 100 112 31700 3230 576 58800 155 15.8 110 11.2 13 M12X90 142 14.5 6.65
PL120X165 AD-N 104 100 112 39900 4070 664 67800 164 16.7 119 12.1 15 M12X90 142 14.5 7.13
PL130X180 AD-N 104 116 130 50700 5170 779 79500 153 15.6 111 11.3 13 M14X90 225 23 8.32
PL140X190 AD-N 104 116 130 62900 6420 900 91800 164 16.7 121 12.3 15 M14X90 225 23 8.67
PL150X200 AD-N 134 116 130 71900 7340 959 97900 164 16.7 123 12.5 16 M14X90 225 23 9.15
PL160X210 AD-N 134 116 130 81500 8320 1020 104000 163 16.6 123 12.6 17 M14X90 225 23 9.69
PL170X225 AD-N 134 146 162 106000 10800 1240 127000 146 14.9 110 11.2 15 M16X120 348 35.5 17.7
PL180X235 AD-N 134 146 162 120000 12200 1330 136000 147 15 113 11.5 16 M16X120 348 35.5 18.5
PL190X250 AD-N 134 146 162 134000 13700 1410 144000 148 15.1 113 11.5 17 M16X120 348 35.5 21.4
PL200X260 AD-N 134 146 162 141000 14400 1410 144000 140 14.3 108 11 17 M16X120 348 35.5 22.5
PL220X285 AD-N 134 146 162 183000 18700 1670 170000 150 15.3 118 12 20 M16X120 348 35.5 26.6
PL240X305 AD-N 134 146 162 220000 22400 1830 187000 151 15.4 120 12.2 22 M16X120 348 35.5 28.7
PL260X325 AD-N 134 146 162 238000 24300 1830 187000 114 11.6 91 9.3 22 M16X120 348 35.5 30.9
PL280X355 AD-N 165 177 197 364000 37100 2600 265000 150 15.3 118 12 20 M20X150 676 69 46.8
PL300X375 AD-N 165 177 197 429000 43800 2860 292000 154 15.7 123 12.5 22 M20X150 676 69 49.7
