POWER LOCK AE SERIES

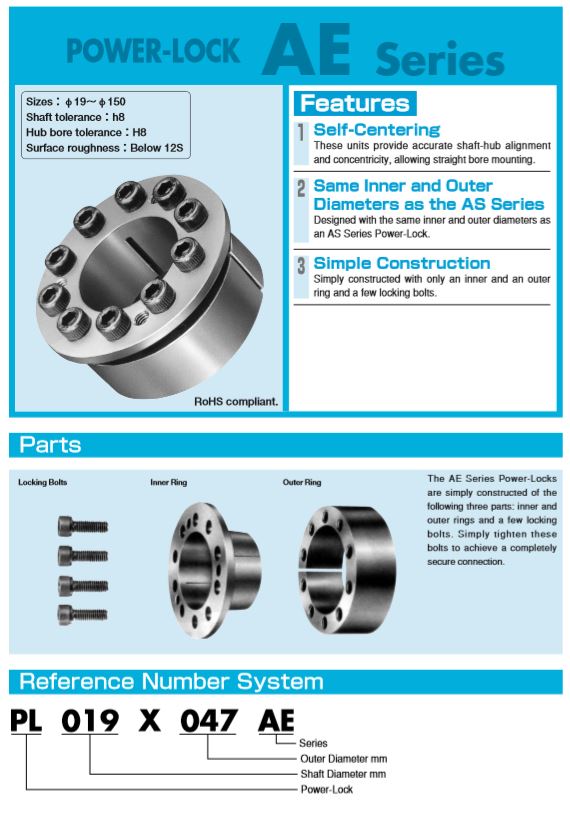

The Tsubaki POWER-LOCK AE Series is a multi-purpose, keyless shaft-hub locking device designed for simple, high-performance applications. It is uniquely constructed with only an inner ring, an outer ring, and a few locking bolts, making installation and removal simple and fast

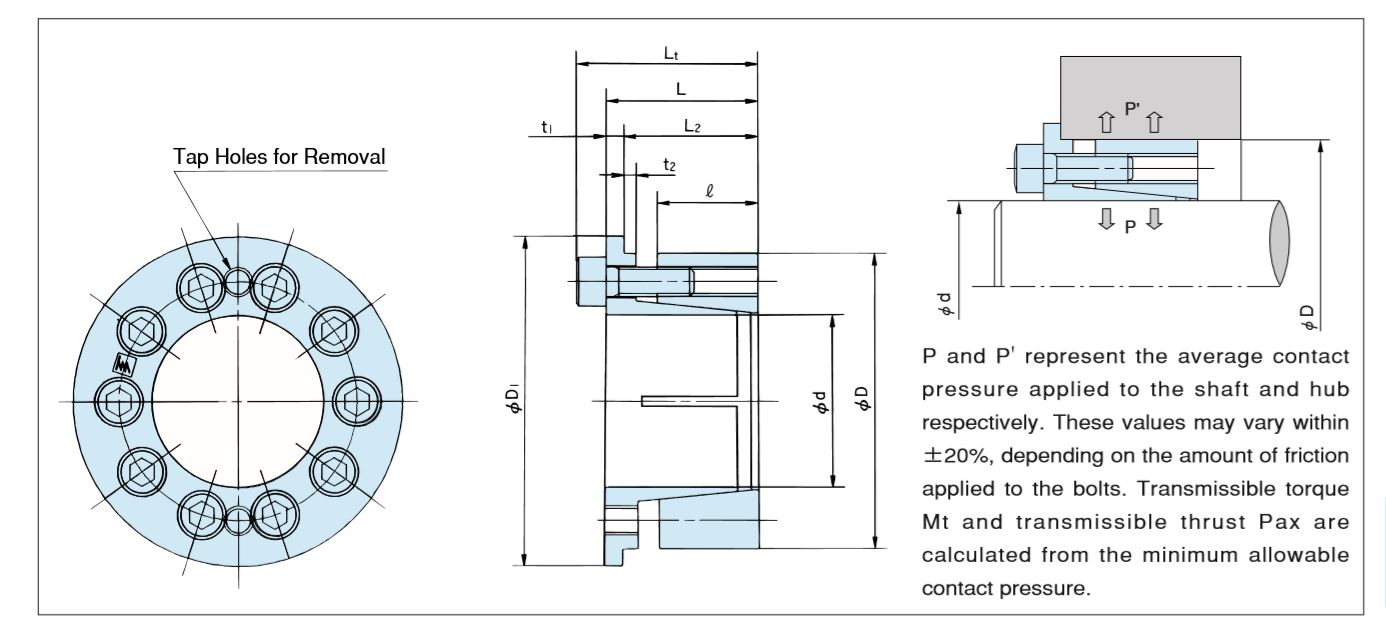

Description of the dimensions 1

Dimensions

Select Model No. d x D Shaft Diameter X Outer Diameter mm Dimensions mm L Dimensions mm L2 Dimensions mm L Dimensions mm Lt Dimensions mm t1 Dimensions mm t2 Dimensions mm D1 Transmissible torque Mt N.m Transmissible torque Mt (kgf.m) Transmissible Thrust pax kN Transmissible Thrust pax (kgf) Shaft Contact Pressure P Mpa Shaft Contact Pressure P (Kgf/mm2) Hub Contact Pressure P' Mpa Hub Contact Pressure P' (kgf/mm2) Locking Bolts Quantily Locking Bolts Size Locking Bolts Tightening Torque Ma N-m Locking Bolts Tightening Torque Ma (kgf-m) Mass kg
PL019X047AE 19 24.8 27.3 33.3 2.5 3 53 265 27 28.1 2870 287 29.3 93 9.5 6 M6X18 16.7 1.7 0.28
PL020X047AE 19 24.8 27.3 33.3 2.5 3 53 274 28 28.1 2870 272 27.8 93 9.5 6 M6X18 16.7 1.7 0.27
PL022X047AE 19 24.8 27.3 33.3 2.5 3 53 304 31 28.1 2870 248 25.3 93 9.5 6 M6X18 16.7 1.7 0.26
PL024X050AE 19 25.3 27.8 33.8 2.5 3 57 392 40 32.8 3350 274 28 102 10.4 7 M6X18 16.7 1.7 0.29
PL025X050AE 19 25.3 27.8 33.8 2.5 3 57 412 42 32.8 3350 282 28.8 102 10.4 7 M6X18 16.7 1.7 0.29
PL028X055AE 19 25.3 28.6 34.6 3.3 3 62 519 53 37.5 3830 269 27.4 106 10.8 8 M6X18 16.7 1.7 0.35
PL030X055AE 19 25.3 28.6 34.6 3.3 3 62 559 57 37.5 3830 251 25.6 106 10.8 8 M6X18 16.7 1.7 0.34
PL032X060AE 20.5 27.3 30.9 36.9 3.6 3 67 745 76 46.9 4790 267 27.2 113 11.5 10 M6X18 16.7 1.7 0.44
PL035X060AE 20.5 27.3 30.9 36.9 3.6 3 67 823 84 46.9 4790 244 24.9 113 11.5 10 M6X18 16.7 1.7 0.41
PL038X065AE 20.5 27.5 31.1 37.1 3.6 3 73 892 91 46.9 4790 228 23.3 104 10.6 10 M6X18 16.7 1.7 0.48
PL040X065AE 20.5 27.5 31.1 37.1 3.6 3 73 931 95 46.9 4790 217 22.1 104 10.6 109 M6X18 16.7 1.7 0.45
PL042X075AE 23.5 30.8 34.8 42.8 4 3 83 1640 167 78.1 7970 285 29.1 130 13.3 9 M8X18 40.2 4.1 0.76
PL045X075AE 23.5 30.8 34.8 42.8 4 3 83 1750 179 78.1 7970 266 27.1 130 13.3 9 M8X22 40.2 4.1 0.71
PL048X080AE 23.5 31 35 43 4 3 88 2060 210 86.8 8860 280 28.6 136 13.9 10 M8X22 40.2 4.1 0.81
PL050X080AE 23.5 31 35 43 4 3 88 2160 220 86.8 8860 270 27.5 136 13.9 10 M8X22 40.2 4.1 0.77
PL055X085AE 23.5 30.8 34.8 42.8 4 3 94 2350 240 86.8 8860 242 24.7 128 13.1 10 M8X22 40.2 4.1 0.84
PL060X090AE 23.5 30.8 34.8 42.8 4 3 99 2550 260 86.8 8860 219 22.3 122 12.4 10 M8X22 40.2 4.1 0.9
PL065X095AE 23.5 30.8 34.8 42.8 4 3 104 3330 340 104 10600 246 25.1 137 14 12 M8X22 40.2 4.1 0.96
PL070X110AE 28 36.5 41 51 4.5 4 120 4800 490 137 14000 247 25.2 132 13.5 10 M10X25 81.3 8.3 1.7
PL075X115AE 28 36.5 41 51 4.5 4 125 5100 520 137 14000 230 23.5 126 12.9 10 M10X25 81.3 8.3 1.79
PL080X120AE 28 36.5 41 51 4.5 4 130 6570 670 165 16800 260 26.5 145 14.8 12 M10X25 81.3 8.3 1.89
PL085X125AE 28 36.5 41 51 4.5 4 135 6960 710 165 16800 244 24.9 139 14.2 12 M10X25 81.3 8.3 1.98
PL90X130AE 28 37.5 43 53 5.5 4 140 7450 760 165 16800 241 24.6 134 13.7 12 M10X25 81.3 8.3 2.15
PL095X135AE 28 37.5 43 53 5.5 4 145 9110 930 193 19700 267 27.2 151 15.4 14 M10X25 81.3 8.3 2.24
PL100X145AE 34 44 50 60 6 4 155 10300 1050 207 21100 218 22.2 123 12.6 15 M10X25 81.3 8.3 3.07
PL110X155AE 34 44 50 60 6 4 167 11400 1160 207 21100 198 20.2 116 11.8 15 M10X25 81.3 8.3 3.35
PL120X165AE 34 44 50 60 6 4 177 14900 1520 248 25300 218 22.2 130 13.3 18 M10X25 81.3 8.3 3.59
PL130X180AE 38 50 57 69 7 6 195 19600 2000 301 30700 214 21.8 129 13.2 15 M12X35 142 14.5 5.04
PL140X190AE 38 50 57 69 7 6 205 21100 2150 301 30700 198 20.2 123 12.6 15 M12X35 142 14.5 5.38
PL150X200AE 38 50 58 70 8 6 215 27000 2760 361 27000 221 22.6 140 14.3 18 M12X35 142 14.5 5.81
