POWER LOCK AS SERIES

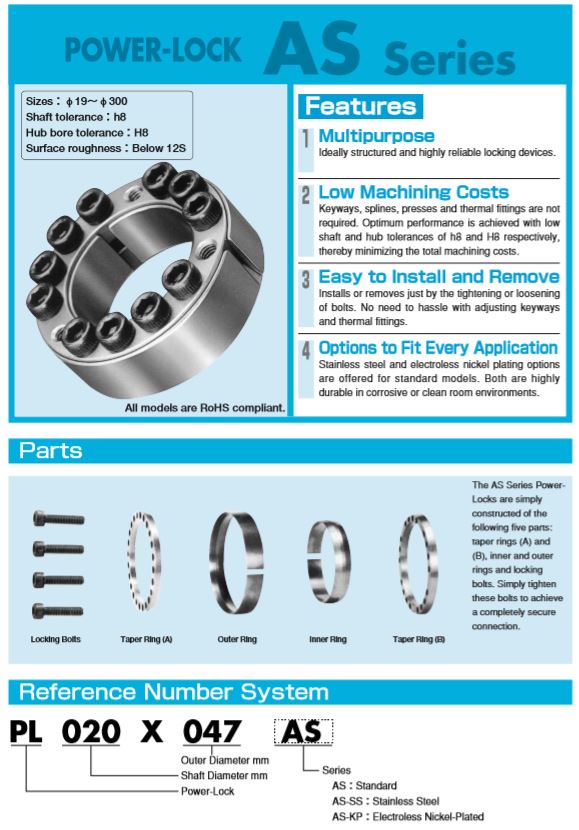

The Tsubaki POWER LOCK AS Series is a multipurpose, highly reliable keyless shaft-hub locking device designed for mechanical power transmission. It is a globally recognized standard for securely connecting shafts and hubs without the need for traditional keys, keyways, splines, or thermal fittings.

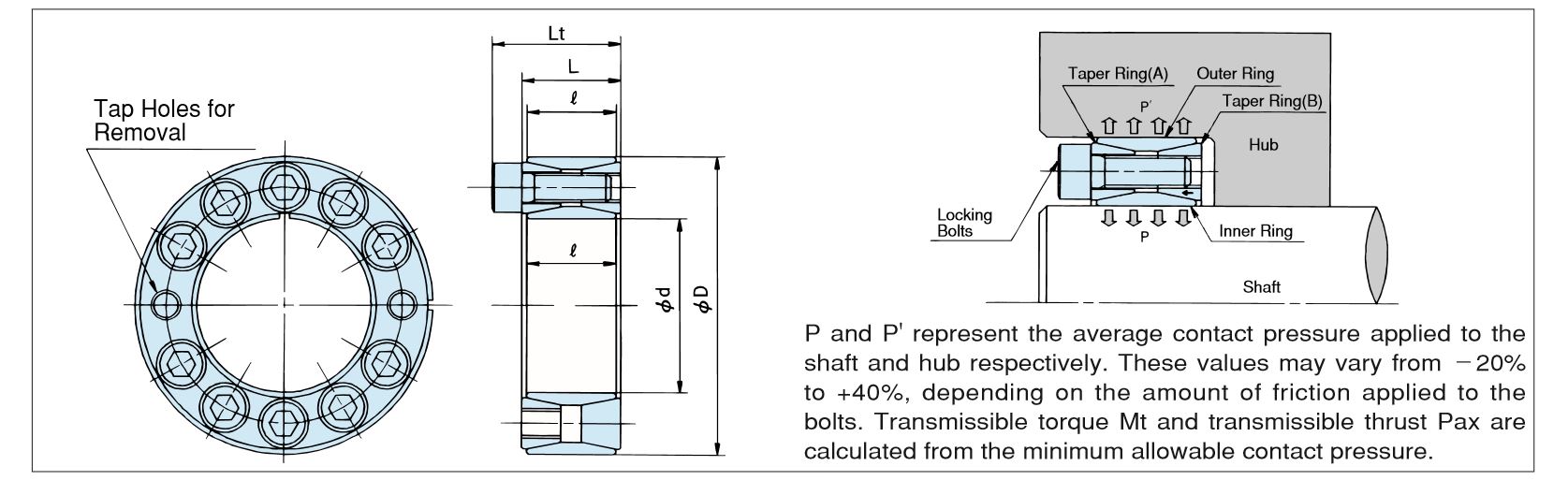

Description of the dimensions 1

Dimensions

Select Model No. d x D Shaft Diameter X Outer Diameter mm Dimensions mm L Dimensions mm l Dimensions mm Lt Transmissible torque Mt N.m Transmissible torque Mt (kgf.m) Transmissible Thrust pax kN Transmissible Thrust pax (kgf) Shaft Contact Pressure P Mpa Shaft Contact Pressure P (Kgf/mm2) Hub Contact Pressure P' Mpa Hub Contact Pressure P' (kgf/mm2) Locking Bolts Quantily Locking Bolts Size Locking Bolts Tightening Torque Ma N-m Locking Bolts Tightening Torque Ma (kgf-m) Mass kg
PL019X047AS 20 18 26 245 25 26.5 2700 210 21.4 85 8.7 6 M6X18 16.7 1.7 0.2
PL020X047AS 20 18 26 265 27 26.5 2700 199 20.3 85 8.7 6 M6X18 16.7 1.7 0.2
PL022X047AS 20 18 26 294 30 26.5 2700 181 18.5 85 8.7 6 M6X18 16.7 1.7 0.19
PL024X050AS 20 18 26 402 41 33.3 3400 211 21.5 101 10.3 8 M6X18 16.7 1.7 0.22
PL025X050AS 20 18 26 421 43 33.3 3400 203 20.7 101 10.3 8 M6X18 16.7 1.7 0.22
PL028X055AS 20 18 26 470 48 33.3 3400 180 18.4 92 9.4 8 M6X18 16.7 1.7 0.25
PL030X055AS 20 18 26 510 52 33.3 3400 169 17.2 92 9.4 8 M6X18 16.7 1.7 0.24
PL032X060AS 20 18 26 676 69 42.1 3400 198 20.2 106 10.8 10 M6X18 16.7 1.7 0.27
PL035X060AS 20 18 26 745 76 42.1 4300 181 18.5 106 10.8 10 M6X18 16.7 1.7 0.27
PL038X065AS 20 18 26 892 91 47 4800 183 18.7 107 10.9 11 M6X18 16.7 1.7 0.3
PL040X065AS 20 18 26 941 96 47 4800 174 17.8 107 10.9 11 M8X18 16.7 1.7 0.3
PL042X075AS 24 21 32 1490 152 70.6 7200 214 21.8 121 12.3 9 M8X22 40.2 4.1 0.51
PL045X075AS 24 21 32 1600 163 70.6 7200 200 20.4 121 12.3 9 M8X22 40.2 4.1 0.51
PL048X080AS 24 21 32 1700 173 70.6 7200 188 19.2 113 11.5 9 M8X22 40.2 4.1 0.55
PL050X080AS 24 21 32 1770 181 70.6 7200 180 18.4 113 11.5 9 M8X22 40.2 4.1 0.55
PL055X085AS 24 21 32 2390 244 86.2 8800 201 20.5 130 13.3 11 M8X22 40.2 4.1 0.6
PL060X090AS 24 21 32 2610 266 86.2 8800 184 18.8 123 12.5 11 M8X22 40.2 4.1 0.64
PL065X095AS 24 21 32 3090 315 94.1 9600 184 18.8 126 12.9 12 M8X22 40.2 4.1 0.69
PL070X110AS 28 25 38 4800 490 138 14100 210 21.4 133 13.6 11 M10X25 81.3 8.3 1.21
PL075X115AS 28 25 38 5190 530 138 14100 196 20 127 13 11 M10X25 81.3 8.3 1.27
PL080X120AS 28 25 38 5490 560 138 14100 184 18.8 123 12.5 11 M10X25 81.3 8.3 1.33
PL085X125AS 28 25 38 6370 650 150 15300 189 19.3 128 13.1 12 M10X25 81.3 8.3 1.41
PL090X130AS 28 25 38 6760 690 150 15300 178 18.2 123 12.6 12 M10X25 81.3 8.3 1.47
PL095X135AS 28 25 38 7740 790 163 16600 183 18.7 129 13.2 13 M10X25 81.3 8.3 1.54
PL100X145AS 33 29 45 10000 1020 201 20500 184 18.8 127 13 11 M12X30 142 14.5 2.09
PL110X155AS 33 29 45 11100 1130 201 20500 168 17.1 120 12.2 11 M12X30 142 14.5 2.25
PL120X165AS 33 29 45 13100 1340 220 22400 168 17.1 123 12.5 12 M12X30 142 14.5 2.42
PL130X180AS 38 34 50 17800 1820 274 28000 166 16.9 120 12.2 15 M12X35 142 14.5 3.38
PL140X190AS 38 34 50 20500 2090 292 29800 164 16.7 121 12.3 16 M12X35 142 14.5 3.59
PL150X200AS 38 34 50 24700 2520 329 33600 172 17.5 129 13.2 18 M12X35 142 14.5 3.82
PL160X210AS 38 34 50 27700 2830 347 35400 170 17.3 129 13.2 19 M12X35 142 14.5 4.03
PL170X225AS 44 40 58 34100 3480 402 41000 157 16 119 12.1 16 M14X40 225 23 5.49
PL180X235AS 44 40 58 38400 3920 426 43500 158 16.1 121 12.3 17 M14X40 225 23 5.78
PL190X250AS 52 48 66 47600 4860 502 51200 147 15 112 11.4 20 M14X45 225 23 7.89
PL200X260AS 52 48 66 52700 5380 527 53800 146 14.9 113 11.5 21 M14X45 225 23 8.26
PL220X285AS 56 51 72 69100 7050 628 64100 149 15.2 115 11.7 18 M16X50 348 35.5 10.6
PL240X305AS 56 51 72 83800 8550 698 71200 152 15.5 120 12.2 20 M16X50 348 35.5 11.5
PL260X325AS 56 51 72 104000 10600 803 81900 161 16.4 129 13.2 23 M16X50 348 35.5 12.4
PL280X355AS 66 61 84 129000 13200 923 94200 144 14.7 114 11.6 22 M18X60 475 48.5 18.7
PL300X375AS 66 61 84 151000 15400 1000 102000 147 15 118 12 24 M18X60 475 48.5 19.9
