POWER LOCK EL SERIES

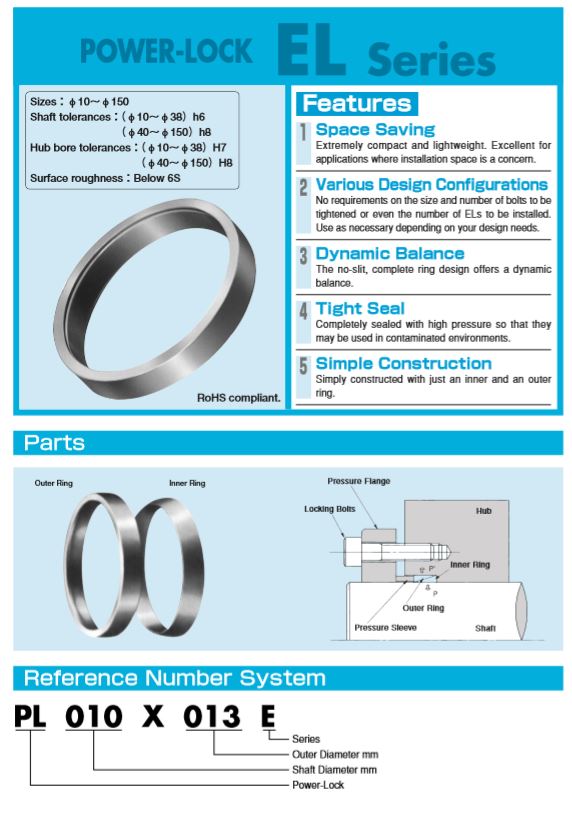

The Tsubaki POWER-LOCK EL Series is the simplest and most compact element-type keyless shaft-hub locking device, engineered for optimal design and minimal installation space.

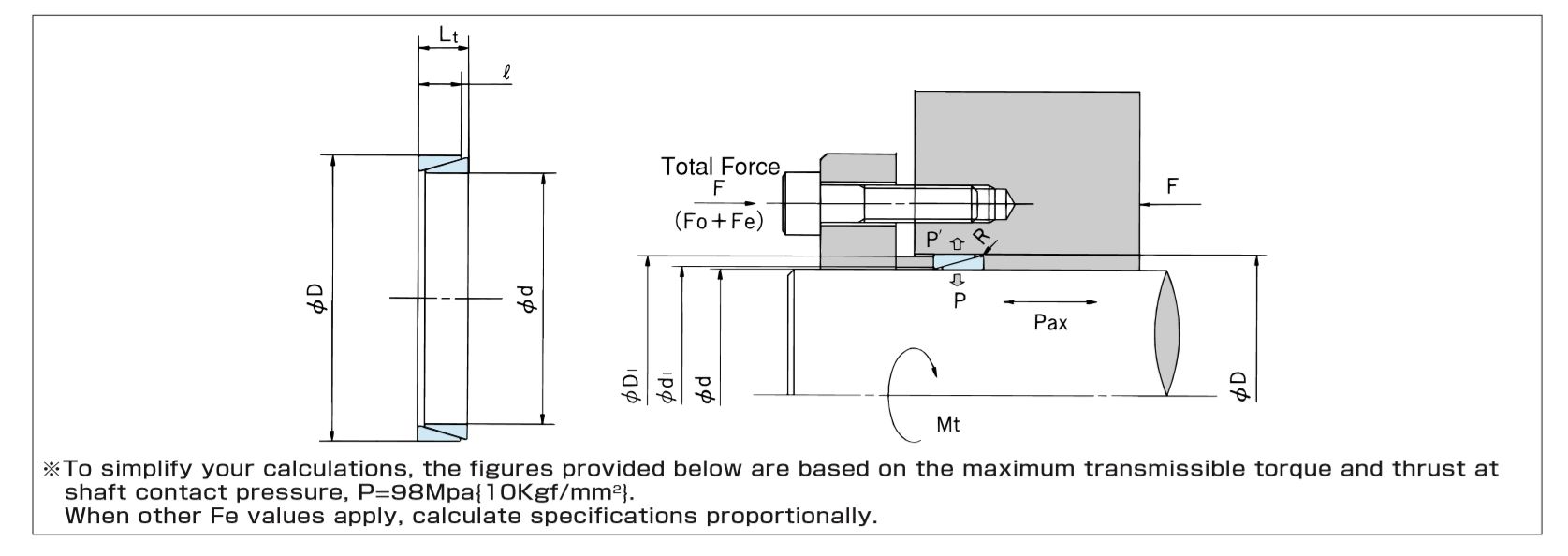

Description of the dimensions 1

Dimensions

Select Model No. d x D Shaft Diameter X Outer Diameter mm Dimensions mm Lt Dimensions mm L Preload Force Fo 1 kN Preload Force Fo 1 {Kgf} Actual Locking Force [Fe]2 kN Actual Locking Force [Fe]2 {kgf} Transmissible torque [Mt]3 N.m Transmissible torque [Mt]3 {kgf.m} Transmissible Thrust [ Pax ]3 KN Transmissible Thrust [ Pax ]3 {kgf} Contact Pressure SHAFT P MPa Contact Pressure SHAFT P {kgf/mm2} Contact Pressure Hub P' MPa Contact Pressure Hub P ' {kgf/mm2} Mass g
PL010X013E 4.5 3.7 5.9 600 6.2 630 6.9 0.7 1.37 140 98 10 75 7.7 1.82
PL011X014E 4.5 3.7 5.4 553 6.7 690 8.2 0.84 1.5 153 98 10 77 7.9 2.08
PL012X015E 4.5 3.7 5 510 7.4 750 9.8 1 1.64 167 98 10 78 8 2.14
PL013X016E 4.5 3.7 4.7 480 8 820 11.6 1.18 1.77 181 98 10 79 8.1 2.3
PL014X018E 6.3 5.3 8.1 830 12.3 1260 19.2 1.96 2.74 280 98 10 76 7.8 4.83
PL015X019E 6.3 5.3 10.3 1050 13.2 1350 22.1 2.25 2.94 300 98 10 77 7.9 5.13
PL016X020E 6.3 5.3 9.8 1000 14.1 1440 25.1 2.56 3.14 320 98 10 78 8 5.43
PL017X021E 6.3 5.3 9.2 940 15 1530 28.3 2.89 3.33 340 98 10 79 8.1 5.73
PL018X022E 6.3 5.3 8.9 910 15.9 1620 31.8 3.24 3.53 360 98 10 80 8.2 6.04
PL019X024E 6.3 5.3 12.3 1260 16.8 1710 35.3 3.6 3.72 380 98 10 77 7.9 7.89
PL020X025E 6.3 5.3 11.9 1210 17.6 1800 39.2 4 3.92 400 98 10 78 8 8.26
PL022X026E 6.3 5.3 8.9 910 19.4 1980 47 4.8 4.31 440 98 10 83 8.5 7.24
PL024X028E 6.3 5.3 8.2 840 21.2 2160 56.8 5.8 4.7 480 98 10 84 8.6 7.85
PL025X030E 6.3 5.3 9.7 990 22.1 2250 60.8 6.2 4.9 500 98 10 81 8.3 10.1
PL028X032E 6.3 5.3 7.2 730 24.7 2520 76.4 7.8 5.49 560 98 10 86 8.8 9.05
PL030X035E 6.3 5.3 8.3 850 26.5 2700 88.2 9 5.88 600 98 10 84 8.6 11.9
PL032X036E 6.3 5.3 7.7 790 28.2 2880 100 10.2 6.27 640 98 10 87 8.9 10.3
PL035X040E 7 6 9.9 1010 34.9 3560 136 13.9 7.74 790 98 10 86 8.8 15.5
PL036X042E 7 6 11.4 1160 35.9 3660 144 14.7 7.94 810 98 10 84 8.6 19
PL038X044E 7 6 10.9 1110 37.9 3870 160 16.3 8.43 860 98 10 84 8.6 20
PL040X045E 8 6.6 13.5 1380 44.1 4500 195 19.9 9.75 995 98 10 87 8.9 20.2
PL042X048E 8 6.6 15.3 1560 46.1 4700 216 22 10.3 1050 98 10 86 8.8 25
PL045X052E 10 8.6 25.6 2610 64.7 6600 321 32.8 14.3 1460 98 10 85 8.7 40.3
PL048X055E 10 8.6 24.1 2460 68.6 7000 367 37.4 15.3 1560 98 10 85 8.7 42.8
PL050X057E 10 8.6 23.2 2370 71.5 7300 397 40.5 15.9 1620 98 10 86 8.8 44.5
PL055X062E 10 8.6 21.3 2170 78.4 8000 480 49 17.4 1780 98 10 87 8.9 48.6
PL056X064E 12 10.4 28.6 2920 97 9900 603 61.5 21.6 2200 98 10 86 8.8 68.9
PL060X068E 12 10.4 26.9 2740 104 10600 692 70.6 23 2350 98 10 86 8.8 73.5
PL063X071E 12 10.4 25.6 2610 109 11100 764 78 24.2 2470 98 10 87 8.9 77
PL065X073E 12 10.4 24.9 2540 113 11500 813 83 25 2550 98 10 87 8.9 79.2
PL070X079E 14 12.2 30.4 3100 142 14500 1110 113 31.6 3220 98 10 87 8.9 113
PL071X080E 14 12.2 30 3060 144 14700 1140 116 32 3270 98 10 87 8.9 114
PL075X084E 14 12.2 33.7 3440 152 15500 1260 129 33.8 3450 98 10 87 8.9 120
PL080X091E 17 15 47.1 4810 200 20400 1770 181 44.1 4500 98 10 86 8.8 193
PL085X096E 17 15 44.6 4550 212 21600 2000 204 47 4800 98 10 86 8.8 204
PL090X101E 17 15 42.2 4310 224 22900 2240 229 50 5100 98 10 87 8.9 215
PL095X106E 17 15 40.1 4090 237 24200 2500 255 52.9 5400 98 10 88 9 227
PL100X114E 21 18.7 59.8 6100 311 31700 3450 352 69.6 7100 98 10 86 8.8 379
PL110X124E 21 18.7 64.1 6540 342 34900 4170 425 74.6 7800 98 10 87 8.9 415
PL120X134E 21 18.7 59 6020 373 38100 4950 505 83.3 8500 98 10 88 9 450
PL130X148E 28 25.3 93.8 9570 547 55800 7840 800 122 12400 98 10 86 8.8 850
PL140X158E 28 25.3 87.5 8930 589 60100 9110 930 131 13350 98 10 87 8.9 910
PL150X168E 28 25.3 82 8370 631 64380 10500 1070 140 14300 98 10 87 8.9 970
