POWER LOCK KE-KP SERIES

The Tsubaki POWER LOCK KE-KP SERIES is a keyless shaft-hub locking device engineered for high-precision, reliable connections, particularly for small diameter applications and environments requiring corrosion resistance. This series utilizes a robust, simple structure—comprising only inner and outer rings with locking bolts—to create a friction-based connection, eliminating the need for traditional keys, keyways, or splines.

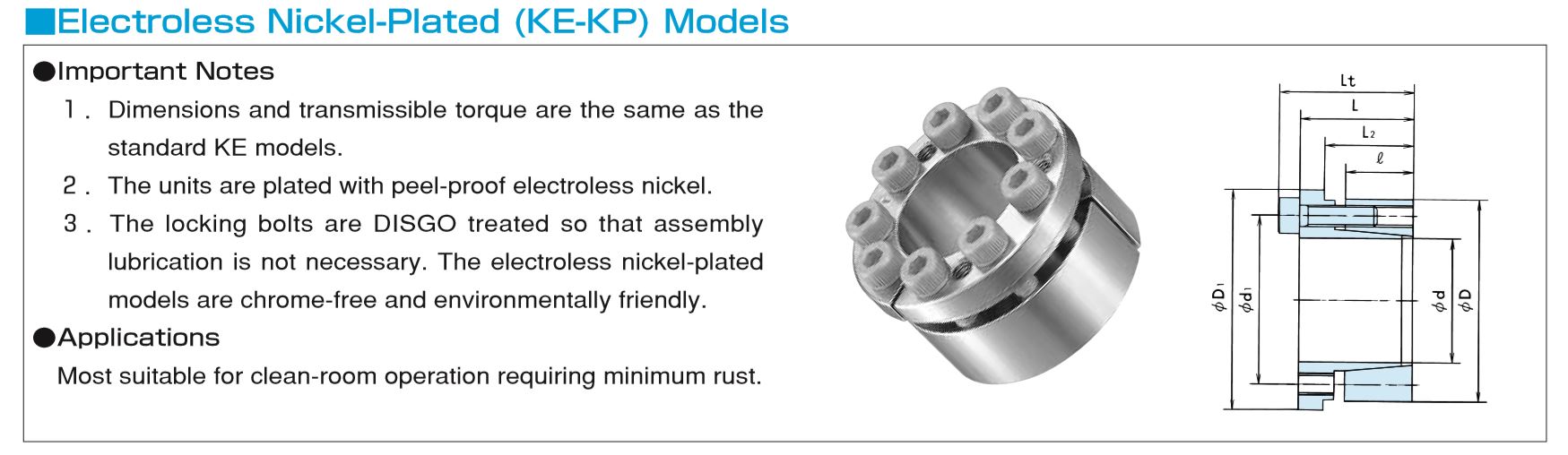

Description of the dimensions 1

Dimensions

Select Model No. d x D Shaft Diameter X Outer Diameter mm Dimensions mm l Dimensions mm L2 Dimensions mm L Dimensions mm Lt Dimensions mm d1 Dimensions mm D1 Transmissible torque Mt N.m Transmissible torque Mt (kgf.m) Transmissible Thrust pax kN Transmissible Thrust pax (kgf) Contact Pressure Shaft P Mpa Contact Pressure Shaft P (Kgf/mm2) Contact Pressure Hub P' Mpa Contact Pressure Hub P' (kgf/mm2) Locking Bolts Qty. Locking Bolts Size Locking Bolts Tightening Torque Ma N-m Locking Bolts Tightening Torque Ma (kgf-m) Mass kg
PL005X016KE-KP 8 12 13.5 16.5 11.5 18.5 7.5 0.77 2.86 292 223 22.8 70 7.1 3 M3X10 1.86 0.19 0.02
PL006X017KE-KP 8 12 13.5 16.5 12.5 19.5 9 0.92 2.86 292 186 19 66 6.7 3 M3X10 1.86 0.19 0.02
PL008X021KE-KP 10 14.5 16.5 20.5 15.6 23.5 24.5 2.5 5.96 608 232 23.7 88 9 3 M4X12 4.8 0.49 0.03
PL010X023KE-KP 10 14.5 16.5 20.5 17.6 25.5 31.4 3.2 5.96 608 186 19 80 8.2 3 M4X12 4.8 0.49 0.04
PL011X024KE-KP 10 14.5 16.5 20.5 18.6 26.5 34.3 3.5 5.96 608 169 17.2 77 7.9 3 M4X12 4.8 0.49 0.04
PL012X026KE-KP 10 14.5 16.5 20.5 20 28.5 50 5.1 7.94 810 207 21.1 95 9.7 4 M4X12 4.8 0.49 0.05
PL014X028KE-KP 12 17.5 20 24 22 30.5 73.5 7.5 9.9 1010 184 18.8 92 9.4 5 M4X14 4.8 0.49 0.06
PL015X029KE-KP 12 17.5 20 24 23 31.5 94.1 9.6 11.9 1210 207 21.1 107 10.9 6 M4X14 4.8 0.49 0.07
PL016X030KE-KP 12 17.5 20 24 24 32.5 101 10.3 11.9 1210 194 19.8 103 10.5 6 M4X14 4.8 0.49 0.07
PL017X031KE-KP 12 17.5 20 24 25 33.5 107 10.9 11.9 1210 182 18.6 100 10.2 6 M4X14 4.8 0.49 0.07
PL018X032KE-KP 12 17.5 20 24 26 34.5 113 11.5 11.9 1210 172 17.6 97 9.9 6 M4X14 4.8 0.49 0.08
PL019X033KE-KP 12 17.5 20 24 27 35.5 120 12.2 11.9 1210 163 16.6 94 9.6 6 M4X14 4.8 0.49 0.08
PL020X038KE-KP 15 20.5 25 30 30 42 206 21 19.4 1980 203 20.7 107 10.9 6 M5X18 9.8 1 0.14
PL022X040KE-KP 15 20.5 25 30 32 44 226 23.1 19.4 1980 184 18.8 101 10.3 6 M5X18 9.8 1 0.15
PL024X042KE-KP 15 20.5 25 30 34 46 329 33.6 25.9 2640 225 23 128 13.1 8 M5X18 9.8 1 0.16
PL025X043KE-KP 15 20.5 25 30 35 47 343 35 25.9 2640 216 22 125 12.8 8 M5X18 9.8 1 0.17
PL028X046KE-KP 17 22.5 28 33 38.5 50 432 44.1 29.2 2980 191 19.5 117 11.9 9 M5X18 9.8 1 0.21
PL030X048KE-KP 17 22.5 28 33 40.5 52 515 52.5 32.4 3310 199 20.3 124 12.7 10 M5X18 9.8 1 0.22
PL032X050KE-KP 17 22.5 28 33 42.5 54 549 56 32.4 3310 186 19 120 12.2 10 M5X18 9.8 1 0.23
PL035X057KE-KP 19 25 32 38 47.5 62 678 69.2 36.6 3730 172 17.5 106 10.8 8 M6X22 16.7 1.7 0.36
PL038X060KE-KP 19 25 32 38 50.5 65 921 94 45.8 4670 198 20.2 125 12.8 10 M6X22 16.7 1.7 0.39
PL040X062KE-KP 19 25 32 38 52.5 67 969 98.9 45.8 4670 188 19.2 122 12.4 10 M6X22 16.7 1.7 0.4
PL042X064KE-KP 19 25 32 38 54.5 69 1010 103 45.8 4670 179 18.3 118 12 10 M6X22 16.7 1.7 0.42
PL045X067KE-KP 19 25 32 38 57.5 72 1090 111 45.8 4670 168 17.1 113 11.5 10 M6X22 16.7 1.7 0.44
PL048X070KE-KP 19 25 32 38 60.5 75 1390 142 54.9 5600 188 19.2 129 13.2 12 M6X22 16.7 1.7 0.46
PL050X072KE-KP 19 26 34.5 40.5 63.5 77 1700 173 64.1 6540 211 21.5 146 14.9 14 M6X25 16.7 1.7 0.5
PL055X077KE-KP 19 26 34.5 40.5 67.5 82 1860 190 64.1 6540 191 19.5 137 14 14 M6X25 16.7 1.7 0.55
PL060X082KE-KP 19 26 34.5 40.5 72.5 87 2180 222 68.6 7000 188 19.2 137 14 15 M6X25 16.7 1.7 0.59
PL065X087KE-KP 19 26 34.5 40.5 77.5 92 2360 241 68.6 7000 173 17.7 129 13.2 15 M6X25 16.7 1.7 0.63
PL070X097KE-KP 22 31.5 40.5 48.5 85.5 102 3750 383 101 10300 206 21 148 15.1 12 M8X30 40.2 4.1 0.99
PL075X102KE-KP 22 31.5 40.5 48.5 90.5 107 4030 411 101 10300 192 19.6 141 14.4 12 M8X30 40.2 4.1 1
PL080X107KE-KP 22 31.5 41.5 49.5 95.5 112 5010 511 118 12000 210 21.4 157 16 14 M8X30 40.2 4.1 1.1
PL085X112KE-KP 22 31.5 41.5 49.5 100.5 117 5320 543 118 12000 198 20.2 150 15.3 14 M8X30 40.2 4.1 1.2
PL090X123KE-KP 19 41.5 54 64 109.5 128 8960 914 187 19100 224 22.9 165 16.8 14 M10X40 81.3 8.3 2.1
PL095X128KE-KP 19 41.5 54 64 114.5 133 9460 965 187 19100 213 21.7 158 16.1 14 M10X40 81.3 8.3 2.2
PL100X133KE-KP 19 41.5 54 64 119.5 138 9900 1010 187 19100 203 20.7 152 15.5 14 M10X40 81.3 8.3 2.3
