POWER LOCK KE SERIES

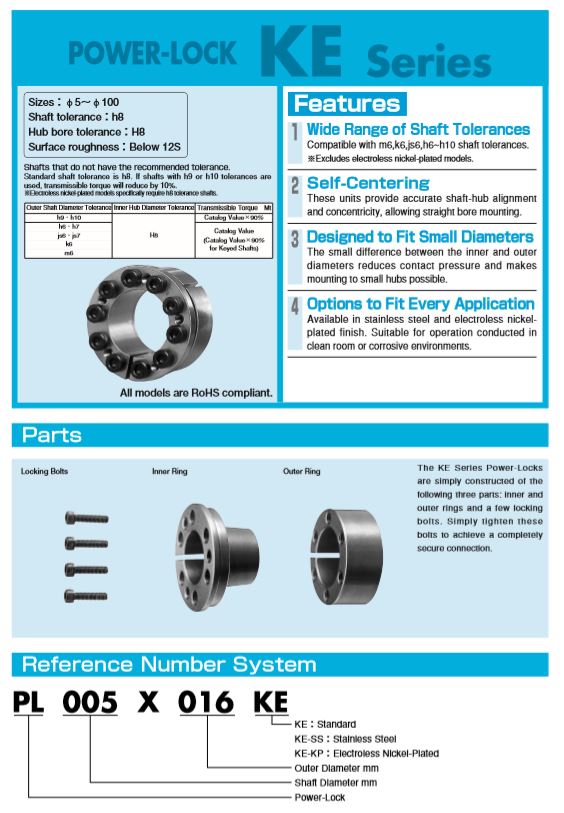

The Tsubaki POWER LOCK KE Series is a highly acclaimed keyless shaft locking device from Tsubaki Japan, designed to provide a friction-type, highly secure, and non-backlash connection between shafts and hubs.

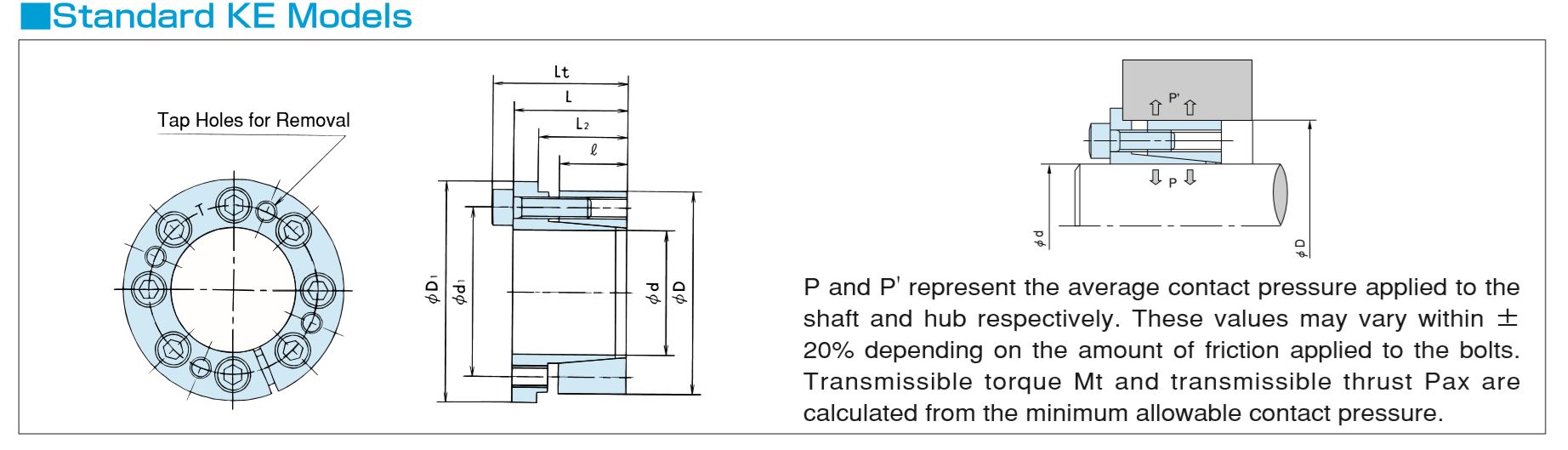

Description of the dimensions 1

Dimensions

Select Model No. d x D Shaft Diameter X Outer Diameter mm Dimensions mm l Dimensions mm L2 Dimensions mm L Dimensions mm Lt Dimensions mm d1 Dimensions mm D1 Transmissible torque Mt N.m Transmissible torque Mt (kgf.m) Transmissible Thrust pax kN Transmissible Thrust pax (kgf) Contact Pressure Shaft P Mpa Contact Pressure Shaft P (Kgf/mm2) Contact Pressure Hub P' Mpa Contact Pressure Hub P' (kgf/mm2) Locking Bolts Qty. Locking Bolts Size Locking Bolts Tightening Torque Ma N-m Locking Bolts Tightening Torque Ma (kgf-m) Mass kg
PL005X016KE 8 12 13.5 16.5 11.5 18.5 7.5 0.77 2.86 292 223 22.8 70 7.1 3 M3X10 1.86 0.19 0.02
PL006X017KE 8 12 13.5 16.5 12.5 195 9 0.92 2.86 292 186 19 66 6.7 3 M3X10 1.86 0.19 0.02
PL008X021KE 10 14.5 16.5 20.5 15.6 23.5 24.5 2.5 5.96 608 232 23.7 88 9 3 M4X12 4.8 0.49 0.03
PL010X023KE 10 14.5 16.5 20.5 17.6 25.5 31.4 3.2 5.96 608 186 19 80 8.2 3 M4X12 4.8 0.49 0.04
PL011X024KE 10 14.5 16.5 20.5 18.6 26.5 34.3 3.5 5.96 608 169 17.2 77 7.9 3 M4X12 4.8 0.49 0.04
PL012X026KE 10 14.5 16.5 20.5 20 28.5 50 5.1 7.94 810 207 21.1 95 9.7 4 M4X12 4.8 0.49 0.05
PL014X028KE 12 17.5 20 24 22 30.5 73.5 7.5 9.9 1010 184 18.8 92 9.4 5 M4X14 4.8 0.49 0.06
PL015X029KE 12 17.5 20 24 23 31.5 94.1 9.6 11.9 1210 207 21.1 107 10.9 6 M4X14 4.8 0.49 0.07
PL016X030KE 12 17.5 20 24 24 32.5 101 10.3 11.9 1210 194 19.8 103 10.5 6 M4X14 4.8 0.49 0.07
PL017X031KE 12 17.5 20 24 25 33.5 107 10.9 11.9 1210 182 18.6 100 10.2 6 M4X14 4.8 0.49 0.07
PL018X032KE 12 17.5 20 24 26 34.5 113 11.5 11.9 1210 172 17.6 97 9.9 6 M4X14 4.8 0.49 0.08
PL019X033KE 12 17.5 20 24 27 35.5 120 12.2 11.9 1210 163 16.6 94 9.6 6 M4X14 4.8 0.49 0.08
PLO20X038KE 15 20.5 25 30 30 42 206 21 19.4 1980 203 20.7 107 10.9 6 M5X18 9.8 1 0.14
PL022X040KE 15 20.5 25 30 32 44 226 23.1 19.4 1980 184 18.8 101 10.3 6 M5X18 9.8 1 0.15
PLO24X042KE 15 20.5 25 30 34 46 329 33.6 25.9 2640 225 23 128 13.1 8 M5X18 9.8 1 0.16
PL025X043KE 15 20.5 25 30 35 47 343 35 25.9 2640 216 22 125 12.8 8 M5X18 9.8 1 0.17
PL028X046KE 17 22.5 28 33 38.5 50 432 44.1 29.2 2980 191 19.5 117 11.9 9 M5X18 9.8 1 0.21
PL030X048KE 17 22.5 28 33 40.5 52 515 52.5 32.4 3310 199 20.3 124 12.7 10 M5X18 9.8 1 0.22
PL032X050KE 17 22.5 28 33 42.5 54 549 56 32.4 3310 186 19 120 12.2 10 M5X18 9.8 1 0.23
PL035X057KE 19 25 32 38 47.5 62 678 69.2 36.6 3730 172 17.5 106 10.8 8 M6X22 16.7 1.7 0.36
PL038X060KE 19 25 32 38 50.5 65 921 94 45.8 4670 198 20.2 125 12.8 10 M6X22 16.7 1.7 0.39
PLO40X062KE 19 25 32 38 52.5 67 969 98.9 45.8 4670 188 19.2 122 12.4 10 M6X22 16.7 1.7 0.4
PL042X064KE 19 25 32 38 54.5 69 1010 103 45.8 4670 179 18.3 118 12 10 M6X22 16.7 1.7 0.42
PL045X067KE 19 25 32 38 57.5 72 1090 111 45.8 4670 168 17.1 113 11.5 10 M6X22 16.7 1.7 0.44
PL048X070KE 19 25 32 38 60.5 75 1390 142 54.9 5600 188 19.2 129 13.2 12 M6X22 16.7 1.7 0.46
PL050X072KE 19 26 34.5 40.5 63.5 77 1700 173 64.1 6540 211 21.5 146 14.9 14 M6X25 16.7 1.7 0.5
PL055X077KE 19 26 34.5 40.5 67.5 82 1860 190 64.1 6540 191 19.5 137 14 14 M6X25 16.7 1.7 0.55
PL060X082KE 19 26 34.5 40.5 72.5 87 2180 222 68.6 7000 188 19.2 137 14 15 M6X25 16.7 1.7 0.59
PL065X087KE 19 26 34.5 40.5 77.5 92 2360 241 68.6 7000 173 17.7 129 13.2 15 M6X25 16.7 1.7 0.63
PL070X097KE 22 31.5 40.5 48.5 85.5 102 3750 383 101 10300 206 20.2 148 15.1 12 M8X30 40.2 4.1 0.99
PL075X102KE 22 31.5 40.5 48.5 90.5 107 4030 411 101 10300 192 19.6 141 14.4 12 M8X30 40.2 4.1 1
PL080X107KE 22 31.5 41.5 49.5 95.5 112 5010 511 118 12000 210 21.4 157 16 14 M8X30 40.2 4.1 1.1
PL085X112KE 22 31.5 41.5 49.5 100.5 117 5320 543 118 12000 198 20.2 150 15.3 14 M8X30 40.2 4.1 1.2
PL090X123KE 29 41.5 54 64 109.5 128 8960 914 187 19100 224 22.9 165 16.8 14 M10X40 81.3 8.3 2.1
PL095X128KE 29 41.5 54 64 114.5 133 9460 965 187 19100 213 21.7 158 16.1 14 M10X40 81.3 8.3 2.2
PL100X133KE 29 41.5 54 64 119.5 138 9900 1010 187 19100 203 20.7 152 15.5 14 M10X40 81.3 8.3 2.3
