POWER LOCK ML SERIES

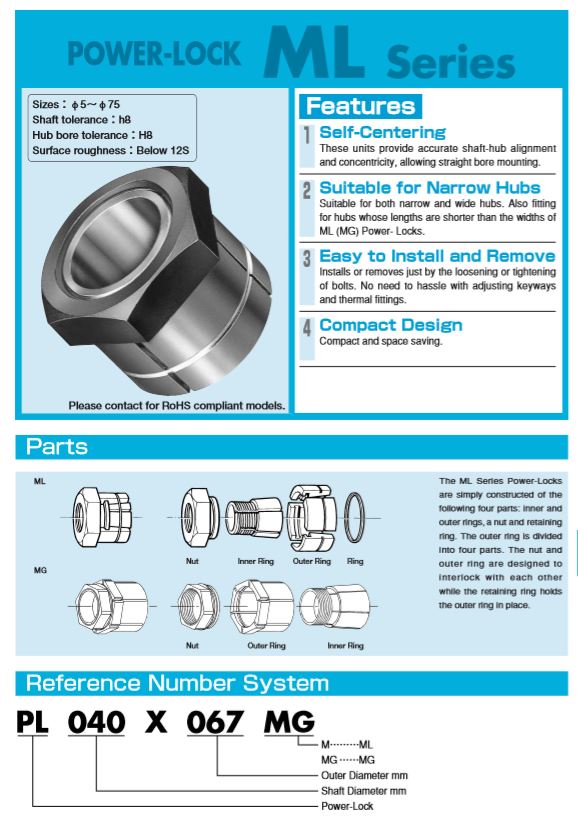

The Tsubaki POWER LOCK ML Series (ML/MG Types) are single-taper shaft-hub locking devices characterized by their unique, single-nut fastening structure, allowing for exceptionally quick and simple installation. These devices provide a highly secure, backlash-free connection between a shaft and a hub without the need for keys or splines.

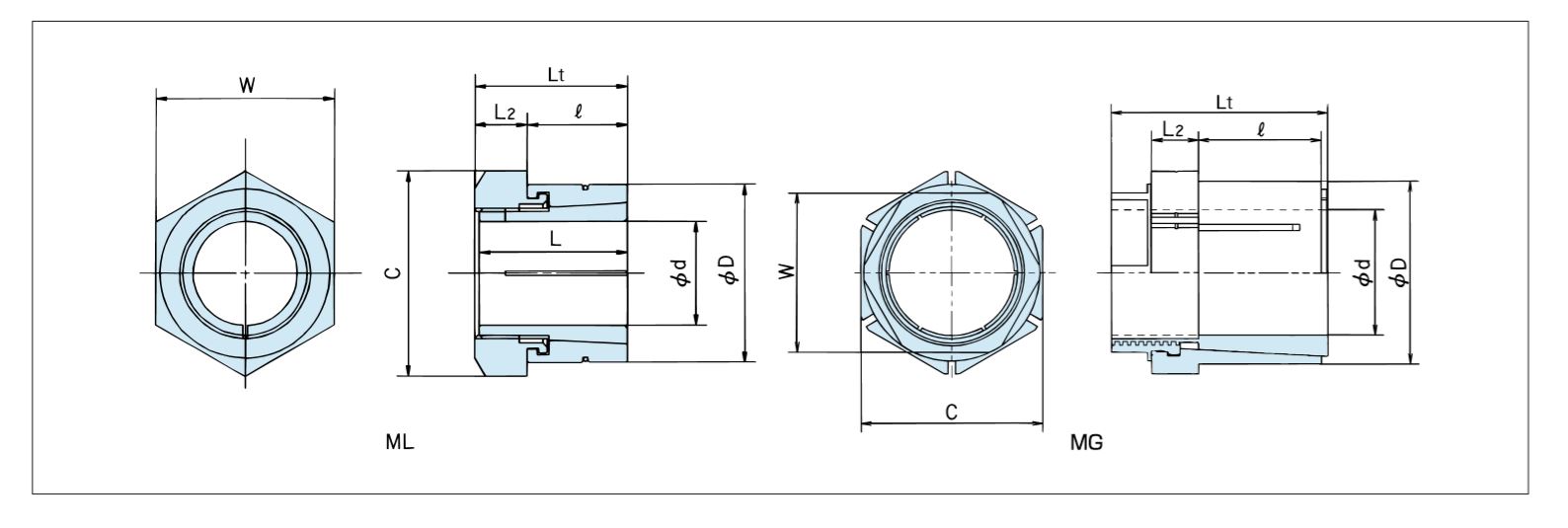

Description of the dimensions 1

Dimensions

Model No. d x D Shaft Diameter X Outer Diameter mm	Dimensions mm Lt	Dimensions mm L	Dimensions mm L2	Dimensions mm L	Dimensions mm W	Dimensions mm C	Transmissible torque Mt N.m	Transmissible torque Mt (kgf.m)	Transmissible Thrust Pax kN	Transmissible torque Mt (kgf.m)	Contact Pressure SHAFT P MPa	Contact Pressure SHAFT P {kgf/mm2}	Contact Pressure Hub P' MPa	Contact Pressure Hub P' {kgf/mm2}	Tightening torque MA N.m	Tightening torque MA {kgf.m}	Mass kg
PL005X016M	15	10	5	14	17	19.6	6.76	0.69	2.65	270	181	18.5	45	4.6	5.39	0.55	0.02
PL006X016M	15	10	5	14	17	19.6	8.13	0.83	2.65	270	161	16.4	45	4.6	5.39	0.02	0.02
PL007X021M	21	14	7	20	22	25.4	22.5	2.3	6.57	670	179	18.3	60	6.1	16.7	1.7	0.05
PL008X021M	21	14	7	20	22	25.4	26.5	2.7	6.57	670	163	16.6	60	6.1	16.7	1.7	0.05
PL009X021M	21	14	7	20	22	25.4	29.4	3	6.57	670	150	15.3	60	6.1	16.7	1.7	0.05
PL010X024M	22	14	8	21	24	27.7	42.1	4.3	8.43	860	180	18.4	68	6.9	24.5	2.5	0.06
PL011X024M	22	14	8	21	24	27.7	46.1	4.7	8.43	860	172	17.5	68	6.9	24.5	2.5	0.06
PL012X024M	22	14	8	21	24	27.7	50	5.1	8.43	860	164	16.7	68	6.9	24.5	2.5	0.06
PL014X031M	27	17	10	26	32	37	108	11	16.1	1640	186	19	81	8.3	60.8	6.2	0.13
PL015X031M	27	17	10	26	32	37	118	12	16.1	1640	179	18.3	81	8.3	60.8	6.2	0.13
PL016X031M	27	17	10	26	32	37	127	13	16.1	1640	173	17.7	81	8.3	60.8	6.2	0.12
PL017X036M	33	21	12	32	36	41.6	196	20	22.8	2330	181	18.5	80	8.2	104	10.6	0.2
PL018X036M	33	21	12	32	36	41.6	206	21	22.8	2330	175	17.9	80	8.2	104	10.6	0.19
PL019X036M	33	21	12	32	36	41.6	216	22	22.8	2330	171	17.4	80	8.2	104	10.6	0.19
PL020X041M	35	23	12	34	41	47.3	245	25	24.9	2540	156	15.9	71	7.2	129	13.2	0.27
PL022X041M	35	23	12	34	41	47.3	274	28	24.9	2540	149	15.2	71	7.2	129	13.2	0.25
PL024X041M	35	23	12	34	41	47.3	294	30	24.9	2540	144	14.7	71	7.2	129	13.2	0.23
PL025X046M	37	25	12	36	46	53.1	374	38	30.1	3070	138	14.1	70	7.1	178	18.2	0.33
PL028X046M	37	25	12	36	46	53.1	421	43	30.1	3070	131	13.4	70	7.1	178	18.2	0.3
PL030X050M	41	28	13	40	50	57.7	451	46	30.1	3070	111	11.3	66	6.7	274	28	0.41
PL032X050M	41	28	12	40	50	57.7	480	49	30.1	3070	104	10.6	66	6.7	274	28	0.37
PL034X060MG D=60.5	70	38	13	-	50	60.3	570	58	33.7	3430	65	6.6	39	4	260	26.6	0.77
PL035X060MG D=60.5	70	38	13	-	50	60.3	590	60	33.7	3430	63	6.4	39	4	260	26.6	0.77
PL036X060MG D=60.5	70	38	13	-	50	60.3	600	61	33.7	3430	61	6.2	39	4	260	26.6	0.77
PL038X060MG D=60.5	70	38	13	-	50	60.3	640	65	33.7	3430	58	5.9	39	4	260	26.6	0.77
PL040X067MG	79.5	43	17.5	-	60	66.7	720	73	36.2	3690	53	5.4	34	3.5	316	32.3	1.05
PL042X067MG	79.5	43	17.5	-	60	66.7	760	77	36.2	3690	51	5.2	34	3.5	316	32.3	1.05
PL045X067MG	79.5	43	17.5	-	60	66.7	810	82	36.2	3690	47	4.8	34	3.5	316	32.3	1.05
PL048X073MG	90.5	51	19	-	65	73	1350	137	57.5	5860	60	6.1	42	4.3	554	56.6	1.36
PL050X073MG	90.5	51	19	-	65	73	1430	145	57.5	5860	57	5.8	42	4.3	554	56.6	1.36
PL055X080MG	95.3	54	20.5	-	70	79.4	1560	159	56.8	5790	49	5	38	3.9	600	61.3	2.13
PL060X086MG	98.4	57.2	19	-	75	85.7	1650	168	55.1	5620	41	4.2	30	3.1	635	64.8	2.27
PL065X092MG	103.2	60.3	20.5	-	82	92.1	1770	180	54.5	5560	36	3.7	27	2.8	680	69.4	2.68
PL070X092MG	103.2	60.3	20.5	-	85	92.1	1900	193	54.5	5560	33	3.4	27	2.8	680	69.4	2.68
PL075X100MG	108	63.5	20.5	-	90	98.4	200	204	56	5710	30	3.1	24	2.4	750	76.6	2.72
