POWER LOCK TF-KP SERIES

The Tsubaki POWER-LOCK® TF-KP Series is a high-precision, keyless shaft-hub locking device engineered to provide a simple, secure, and compact connection. As part of the POWER-LOCK range, the TF-KP Series eliminates the need for keys, keyways, splines, or threads, thereby increasing shaft strength and simplifying assembly/disassembly.

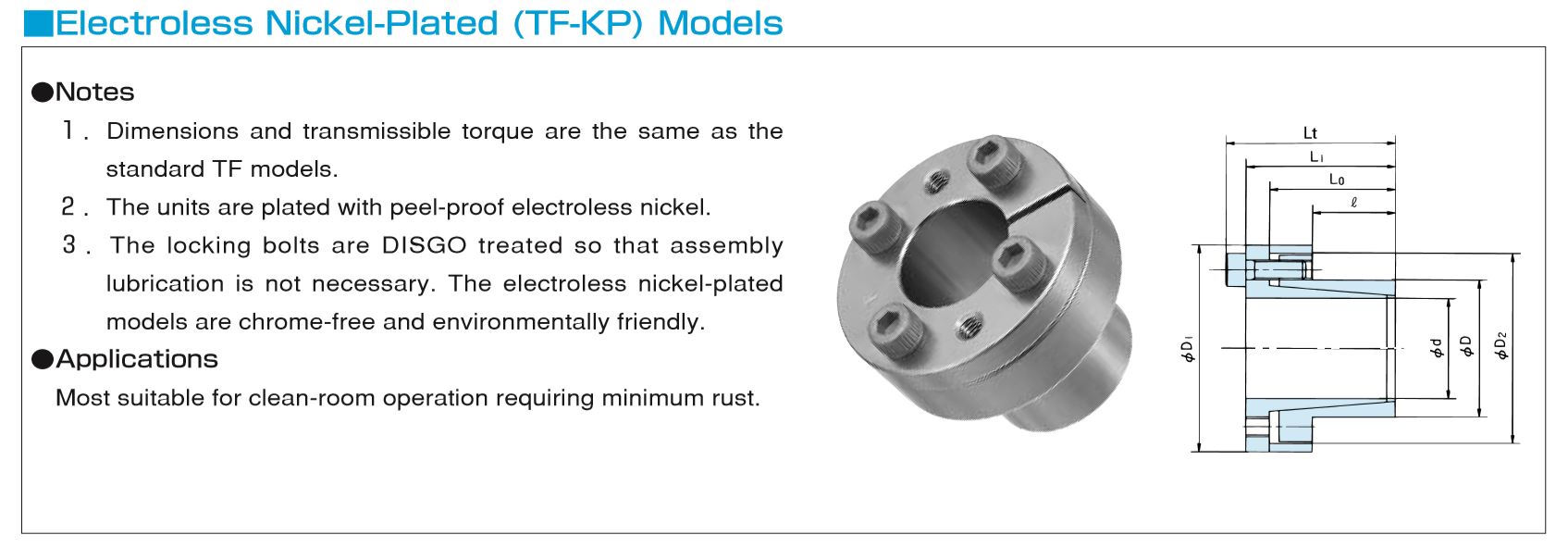

Description of the dimensions 1

Dimensions

Select Model No. d x D Shaft Diameter X Outer Diameter mm Dimensions mm l Dimensions mm L0 Dimensions mm L 1 Dimensions mm Lt Dimensions mm D1 Dimensions mm D2 Transmissible torque Mt N.m Transmissible torque Mt (kgf.m) Transmissible Thrust pax kN Transmissible Thrust pax (kgf) Contact Pressure Shaft P Mpa Contact Pressure Shaft P (Kgf/mm2) Contact Pressure Hub P' Mpa Contact Pressure Hub P' (kgf/mm2) Locking Bolts Qty. Locking Bolts Size Locking Bolts Tightening Torque Ma N-m Locking Bolts Tightening Torque Ma (kgf-m) Mass kg
PL010X018TF-KP 14 23 26 30 32 28 44 4.4 8.7 888 183 18.7 102 10.4 4 M4X10 4.8 0.49 0.09
PL011X018TF-KP 14 23 26 30 32 28 48 4.9 8.7 888 167 17 102 10.4 4 M4X10 4.8 0.49 0.08
PL012X020TF-KP 14 23 26 30 34 30 52 5.3 8.7 888 153 15.6 92 9.3 4 M4X10 4.8 0.49 0.1
PL014X022TF-KP 14 23 26 30 38 33 61 6.2 8.7 888 131 13.6 83 8.5 4 M4X10 4.8 0.49 0.12
PL015X023TF-KP 14 24 30 35 39 35.5 107 10.9 14.2 1450 199 20.4 130 13.3 4 M5X14 9.8 1 0.12
PL016X024TF-KP 14 24 30 35 40 36.5 114 11.6 14.2 1450 187 19.1 125 12.7 4 M5X14 9.8 1 0.16
PL018X026TF-KP 18 31 38 44 47 42 196 20 21.6 2200 217 22.1 126 12.9 4 M6X18 16.7 1.7 0.27
PL019X027TF-KP 18 31 38 44 49 43 206 21 21.6 2200 205 20.9 122 12.4 4 M6X18 16.7 1.7 0.29
PL020X028TF-KP 18 31 38 44 50 44 216 22 21.6 2200 195 19.9 118 12 4 M6X18 16.7 1.7 0.3
PL022X032TF-KP 25 38 45 51 54 48 245 25 21.6 2200 121 12.3 74 7.5 4 M6X18 16.7 1.7 0.38
PL024X034TF-KP 25 38 45 51 56 50 265 27 21.6 2200 111 11.3 70 7.1 4 M6X18 16.7 1.7 0.41
PL025X034TF-KP 25 38 45 51 56 50 274 28 21.6 2200 107 10.9 70 7.1 4 M6X18 16.7 1.7 0.39
PL028X039TF-KP 25 38 45 51 61 55 461 47 32.3 3300 142 14.5 91 9.3 6 M6X18 16.7 1.7 0.47
PL030X041TF-KP 25 38 45 51 62 57 500 51 32.3 3300 133 13.6 86 8.8 6 M6X18 16.7 1.7 0.48
PL032X043TF-KP 25 38 45 51 65 59 529 54 32.3 3300 124 12.7 82 8.4 6 M6X18 16.7 1.7 0.52
PL035X047TF-KP 32 45 52 58 69 62 774 79 44.1 4500 116 11.8 78 8 8 M6X18 16.7 1.7 0.63
PL038X050TF-KP 32 45 52 58 72 66 843 86 44.1 4500 107 10.9 74 7.5 8 M6X18 16.7 1.7 0.67
PL040X053TF-KP 32 45 52 58 75 69 882 90 44.1 4500 101 10.3 70 7.1 8 M6X18 16.7 1.7 0.73
PL042X055TF-KP 32 45 52 58 78 71 931 95 44.1 4500 96 9.8 68 6.9 8 M6X18 16.7 1.7 0.78
PL045X059TF-KP 45 62 70 78 86 80 1850 189 82.3 8400 119 12.1 82 8.4 8 M8X22 40.2 4.1 1.23
PL048X062TF-KP 45 62 70 78 87 81 1970 201 82.3 8400 111 11.3 78 8 8 M8X22 40.2 4.1 1.24
PL050X065TF-KP 45 62 70 78 92 86 2060 210 82.3 8400 107 10.9 74 7.6 8 M8X22 40.2 4.1 1.4
PL055X071TF-KP 55 72 80 88 98 92 2550 260 92.1 9400 87 8.9 63 6.4 9 M8X22 40.2 4.1 1.7
PL060X077TF-KP 55 72 80 88 104 98 2770 283 92.1 9400 80 8.2 58 5.9 9 M8X22 40.2 4.1 1.9
PL065X084TF-KP 55 72 80 88 111 105 3010 307 92.1 9400 74 7.6 53 5.4 9 M8X22 40.2 4.1 2.21
PL070X090TF-KP 65 86 96 106 119 113 5150 525 147 15000 92 9.4 67 6.8 9 M10X25 81.3 8.3 3.05
PL075X095TF-KP 65 86 96 106 126 119 5490 560 147 15000 86 8.8 63 6.4 9 M10X25 81.3 8.3 3.32
PL080X100TF-KP 65 86 96 106 131 125 7840 800 196 20000 108 11 79 8.1 12 M10X25 81.3 8.3 3.5
PL085X106TF-KP 65 86 96 106 137 131 8330 850 196 20000 101 10.3 75 7.7 12 M10X25 81.3 8.3 3.81
PL090X112TF-KP 65 86 96 106 144 137 8820 900 196 20000 96 9.8 72 7.3 12 M10X25 81.3 8.3 4.2
