POWER LOCK TF SERIES

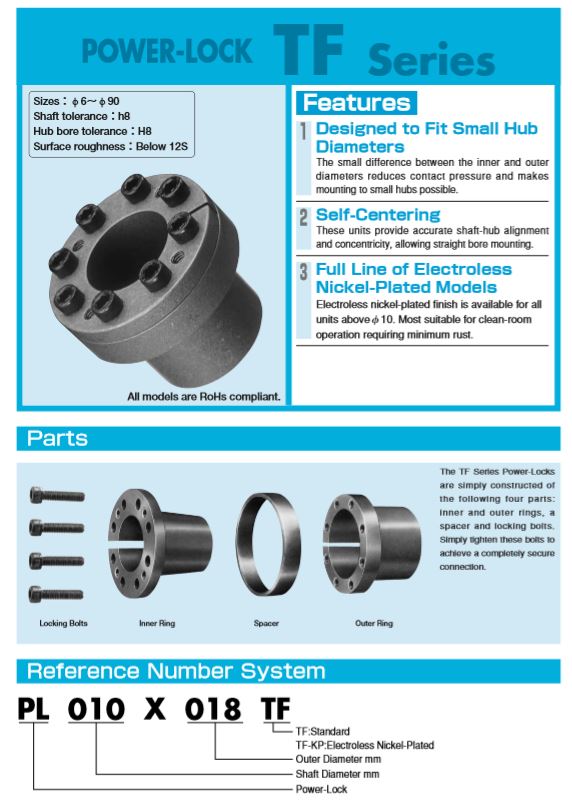

Tsubaki POWER LOCK TF SERIES Keyless Locking Devices

The Tsubaki POWER LOCK TF Series is a self-centering, single-taper shaft-hub locking device engineered for high performance in power transmission applications. It provides a simple, highly secure connection that eliminates the need for traditional keys, keyways, splines, or press/shrink fits.

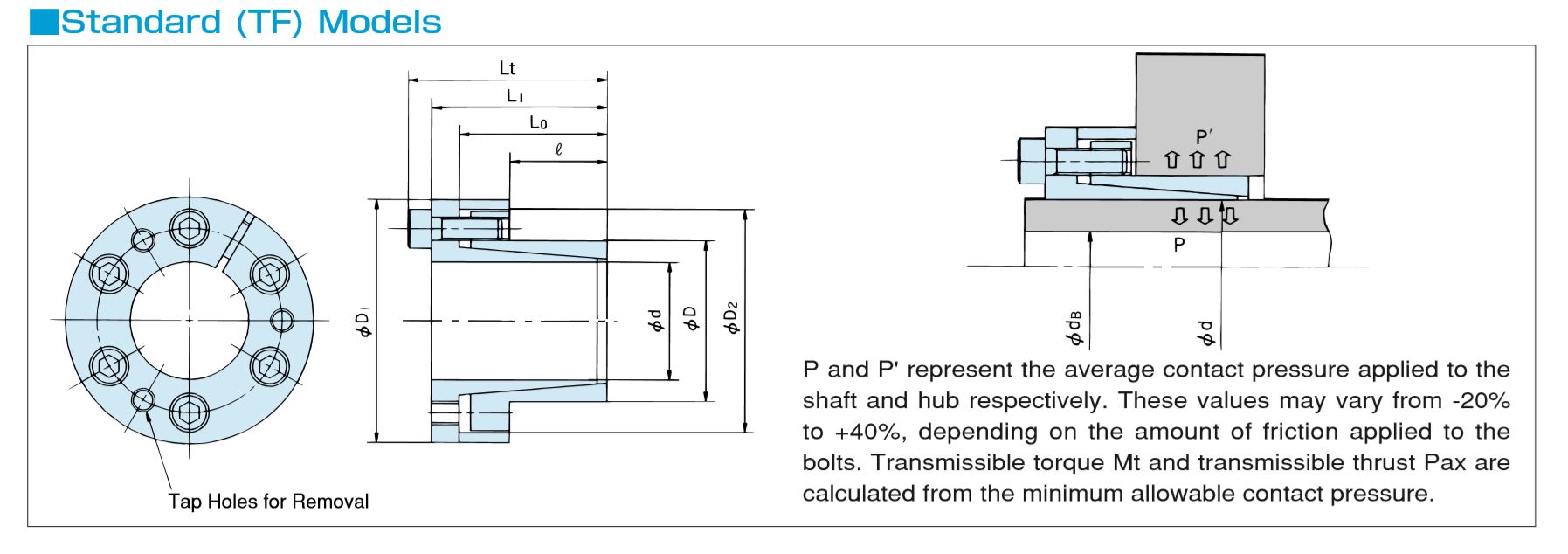

Description of the dimensions 1

Dimensions

Select Model No. d x D Shaft Diameter X Outer Diameter mm Dimensions mm L Dimensions mm Lo Dimensions mm L1 Dimensions mm Lt Dimensions mm D1 Dimensions mm D2 Transmissible torque Mt N.m Transmissible torque Mt (kgf.m) PAX KN {kgf/mm2} Contact Pressure SHAFT P' MPa Contact Pressure shaft P' (kgf/mm2) Contact Pressure Hub P' MPa Contact Pressure Hub P' (kgf/mm2) Locking Bolts Quantily Locking Bolts Size Locking Bolts Tightening Torque Ma N-m Locking Bolts Tightening Torque Ma (kgf-m) Mass kg
PL006X012TF 10 19 21 24 25 23 11 1.2 3.78 386 186 19 93 9.5 3 M3X10 2.25 0.23 0.05
PL007X012TF 10 19 21 24 25 22.5 13 1.4 3.78 386 160 16.3 93 9.5 3 M3X10 2.25 0.23 0.05
PL008X015TF 12 22 25 29 27 24 26 2.7 6.53 666 200 20.4 107 10.9 3 M4X10 4.8 0.49 0.07
PL010X018TF 14 23 26 30 32 28 44 4.4 8.7 888 183 18.7 102 10.4 4 M4X10 4.8 0.49 0.09
PL011X018TF 14 23 26 30 32 28 48 4.9 8.7 888 167 17 102 10.4 4 M4X10 4.8 0.49 0.08
PL012X020TF 14 23 26 30 34 30 52 5.3 8.7 888 153 15.6 92 9.3 4 M4X10 4.8 0.49 0.1
PL014X022TF 14 23 26 30 38 33 61 6.2 8.7 888 131 13.4 83 8.5 4 M4X10 4.8 0.49 0.12
PL015X023TF 14 24 30 35 39 35.5 107 10.9 14.2 1450 199 20.4 130 13.3 4 M5X14 9.8 1 0.12
PL016X024TF 14 24 30 35 40 36.5 114 11.6 14.2 1450 187 19.1 125 12.7 4 M5X14 9.8 1 0.16
PL018X026TF 18 31 38 44 47 42 196 20 21.6 2200 217 22.1 126 12.9 4 M6X18 16.7 1.7 0.27
PL019X027TF 18 31 38 44 49 43 206 21 21.6 2200 205 20.9 122 12.4 4 M6X18 16.7 1.7 0.29
PL020X028TF 18 31 38 44 50 44 216 22 21.6 2200 195 19.9 118 12 4 M6X18 16.7 1.7 0.3
PL022X032TF 25 38 45 51 54 48 245 25 21.6 2200 121 12.3 74 7.5 4 M6X18 16.7 1.7 0.38
PL024X034TF 25 38 45 51 56 50 265 27 21.6 2200 111 11.3 70 7.1 4 M6X18 16.7 1.7 0.41
PL025X034TF 25 38 45 51 56 50 274 28 21.6 2200 107 10.9 70 7.1 4 M6X18 16.7 1.7 0.39
PL028X039TF 25 38 45 51 61 55 461 47 32.3 3300 142 14.5 91 9.3 6 M6X18 16.7 1.7 0.47
PL030X041TF 25 38 45 51 62 57 500 51 32.3 3300 133 13.6 86 8.8 6 M6X18 16.7 1.7 0.48
PL032X043TF 25 38 45 51 65 59 529 54 32.3 3300 124 12.7 82 8.4 6 M6X18 16.7 1.7 0.52
PL035X047TF 32 45 52 58 69 62 774 79 44.1 4500 116 11.8 78 8 8 M6X18 16.7 1.7 0.63
PL038X050TF 32 45 52 58 72 66 843 86 44.1 4500 107 10.9 74 7.5 8 M6X18 16.7 1.7 0.67
PL040X053TF 32 45 52 58 75 69 882 90 44.1 4500 101 10.3 70 7.1 8 M6X18 16.7 1.7 0.73
PL042X055TF 32 45 52 58 78 71 931 95 44.1 4500 96 9.8 68 6.9 8 M6X18 16.7 1.7 0.78
PL045X059TF 45 62 70 78 86 80 1850 189 82.3 8400 119 12.1 82 8.4 8 M8X22 40.2 4.1 1.23
PL048X062TF 45 62 70 78 87 81 1970 201 82.3 8400 111 11.3 78 8 8 M8X22 40.2 4.1 1.24
PL050X065TF 45 62 70 78 92 86 2060 210 82.3 8400 107 10.9 74 7.6 8 M8X22 40.2 4.1 1.4
PL055X071TF 55 72 80 88 98 92 2550 260 92.1 9400 87 8.9 63 6.4 9 M8X22 40.2 4.1 1.7
PL060X077TF 55 72 80 88 104 98 2770 283 92.1 9400 74 7.6 53 5.9 9 M8X22 40.2 4.1 1.9
PL065X084TF 55 72 80 88 111 105 3010 307 92.1 9400 74 7.6 53 5.4 9 M8X22 40.2 4.1 2.21
PL070X090TF 65 86 96 106 119 113 5150 525 147 15000 92 9.4 67 6.8 9 M10X25 81.3 8.3 3.05
PL075X095TF 65 86 96 106 126 119 5490 560 147 15000 86 8.8 63 6.4 9 M10X25 81.3 8.3 3.32
PL080X100TF 65 86 96 106 131 125 7840 800 196 20000 108 11 79 8.1 12 M10X25 81.3 8.3 3.5
PL085X106TF 65 86 96 106 137 131 8330 850 196 20000 101 10.3 75 7.7 12 M10X25 81.3 8.3 3.81
PL090X112TF 65 86 96 106 144 137 8820 900 196 20000 96 9.8 72 7.3 12 M10X25 81.3 8.3 4.2
