RS-SS Chain-american Standard Chain-ANS-SS-Drive Chain

The Tsubaki Stainless Steel SS Series is a standard corrosion-resistant roller chain designed for applications that demand high performance in challenging environments. This series, conforming to American Standard (ANSI) specifications, is constructed primarily of SUS304 Stainless Steel components, offering exceptional durability and chemical resistance.

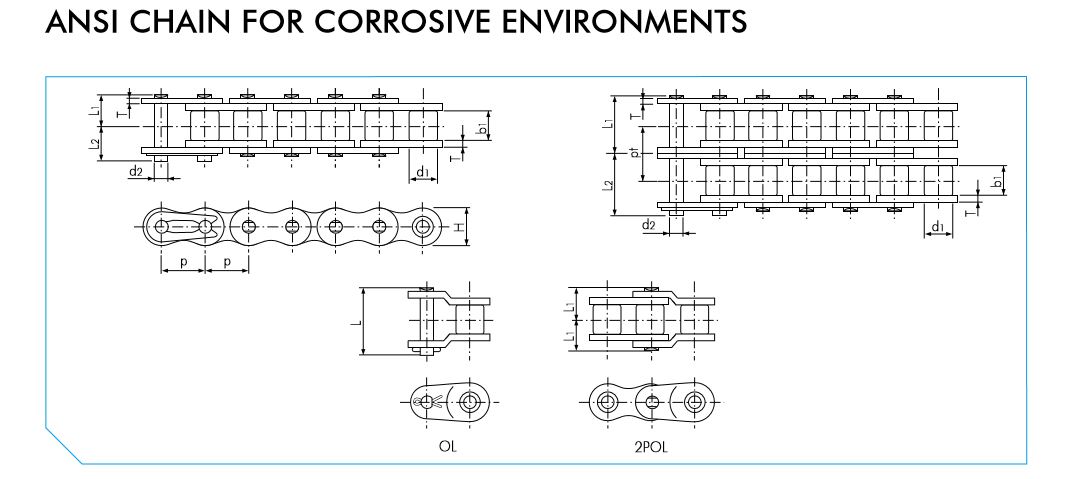

Description of the dimensions 1

Dimensions

Select TSUBAKI Chain No. Pitch (p) Roller Diameter (d1) Inner Width (b1) Pin Diameter (d2) Length (L1) Length (L2) Length (L) Thickness (T) Height H (max) Transverse Pitch (pt) Max. Allowable Load acc. to Tsubaki Kn Approx. Mass kg/m
RS11-SS-1 3.7465 (-) 2.285 1.83 1.57 2.275 3.165 - 0.38 3.5 - 0.05 0.052
RS25-SS-1 6.35 (1/4”) 3.3 3.18 2.31 3.8 4.8 - 0.75 5.84 - 0.12 0.14
RS35-SS-1 9.525 (3/8”) 5.08 4.78 3.59 5.85 6.85 14.7 1.25 9 - 0.26 0.33
RS35-SS-2 9.525 (3/8”) 5.08 4.78 3.59 11.05 11.95 24.6 1.25 9 10.1 0.52 0.69
RS40-SS-1 12.70 (1/2”) 7.92 7.95 3.97 8.25 9.95 18.6 1.5 12 - 0.44 0.64
RS40-SS-2 12.70 (1/2”) 7.92 7.95 3.97 15.45 17.15 33.5 1.5 12 14.4 0.88 1.27
RS50-SS-1 15.875 (5/8”) 10.16 9.53 5.09 10.3 12 23.9 2 15 - 0.69 1.04
RS50-SS-2 15.875 (5/8”) 10.16 9.53 5.09 19.35 21.15 41.8 2 15 18.1 1.37 2.07
RS60-SS-1 19.05 (3/4”) 11.91 12.7 5.96 12.85 14.75 29.4 2.4 18.1 - 1.03 1.53
RS60-SS-2 19.05 (3/4”) 11.91 12.7 5.96 24.25 26.25 52.6 2.4 18.1 22.8 2.06 3.04
RS80-SS-1 25.40 (1”) 15.88 15.88 7.94 16.25 19.25 39 3.2 24.1 - 1.77 2.66
RS80-SS-2 25.40 (1”) 15.88 15.88 7.94 30.9 33.9 68.05 3.2 24.1 29.3 3.53 5.3
RS100-SS-1 31.75 (1 1/4”) 19.05 19.05 9.54 19.75 22.85 46.5 4 30.1 - 2.55 4.01
RS100-SS-2 31.75 (1 1/4”) 19.05 19.05 9.54 37.7 40.8 81.6 4 30.1 35.8 5.1 7.99
