RS-SS-Chain-british Standard Chain-BS-SS-Drive Chain

The Tsubaki BS-SS Chain is engineered for demanding and special environments, including use in water, acidic, and alkaline applications. It maintains reliable performance across a wide temperature range, from low to high temperatures (-20°C to +400°C). The parts utilize 18-8SUS (SUS304 equivalent) stainless steel, which is marginally magnetic due to the cold-forging process.

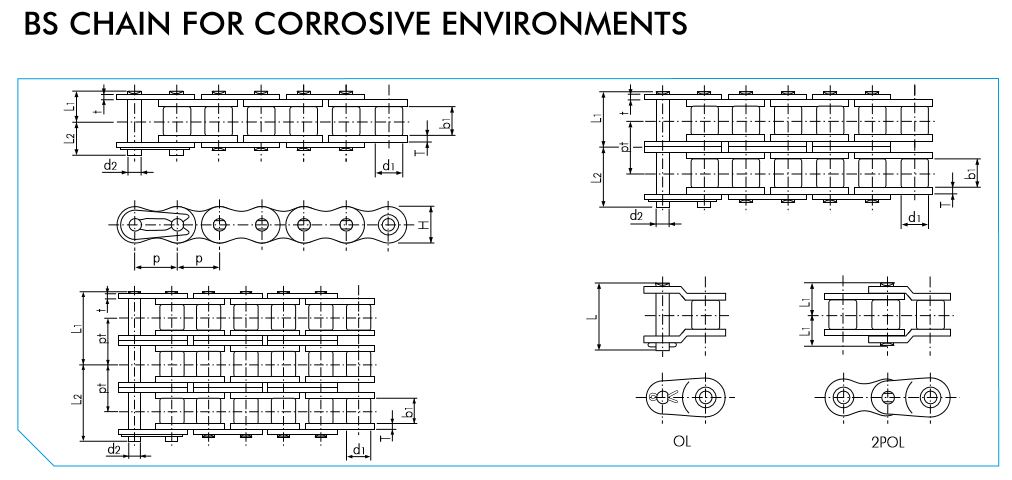

Description of the dimensions 1

Dimensions

TSUBAKI Chain No.	Pitch (P)	Roller Diameter(d1)	Inner Width (b1)	Pin Diameter (d2)	Length (L1)	Length (L2)	Length (L)	Link Plate Thickness (T)	Thickness (t)	Height H (max)	Transverse Pitch (pt)	Max. Allowable Load acc. to Tsubaki kN	Approx. Mass kg/m
RF06B-SS-1	9.525 (3/8”)	6.35	5.72	3.28	6.5	7.25	15.45	1.3	1	8.2	-	0.28	0.39
RF06B-SS-2	9.525 (3/8”)	6.35	5.72	3.28	11.6	12.3	28.85	1.3	1	8.2	10.24	0.56	0.75
RS08B-SS-1	12.70 (1/2”)	8.51	7.75	4.45	8.35	10.05	20.05	1.50	1.50	12.00	-	0.5	0.7
RS08B-SS-2	12.70 (1/2”)	8.51	7.75	4.45	15.3	17	34.6	1.50	1.50	12.00	13.92	1	1.35
RS08B-SS-3	12.70 (1/2”)	8.51	7.75	4.45	22.25	23.95	48.6	1.50	1.50	12.00	13.92	1.5	2
RS10B-SS-1	15.875 (5/8”)	10.16	9.65	5.08	9.55	11.25	22.9	1.50	1.50	14.70	-	0.67	0.95
RS10B-SS-2	15.875 (5/8”)	10.16	9.65	5.08	17.85	19.55	39.4	1.50	1.50	14.70	16.59	1.34	1.85
RS10B-SS-3	15.875 (5/8”)	10.16	9.65	5.08	26.2	27.8	56	1.50	1.50	14.70	16.59	2.01	2.8
RS12B-SS-1	19.05 (3/4”)	12.07	11.68	5.72	11.1	13	26.7	1.80	1.80	16.10	-	0.89	1.25
RS12B-SS-2	19.05 (3/4”)	12.07	11.68	5.72	20.9	22.7	46.1	1.80	1.80	16.10	19.46	1.78	2.5
RS12B-SS-3	19.05 (3/4”)	12.07	11.68	5.72	30.65	32.6	65.6	1.80	1.80	16.10	19.46	2.67	3.8
RS16B-SS-1	25.40 (1”)	15.88	17.02	8.28	17.75	19.95	38.9	4	3.2	21	-	2.1	2.7
RS16B-SS-2	25.40 (1”)	15.88	17.02	8.28	33.55	35.75	73.8	4	3.2	21	31.88	4.2	5.4
RS20B-SS-1	31.75 (1 1/4”)	19.05	19.56	10.19	20.1	23.1	48.4	4.5	3.5	26	-	2.95	3.85
