TSS CAM CLUTCH

Utilizing a sprag clutch mechanism, the TSS series often achieves higher torque capacities than similar ramp & roller designs. This series is specifically ideal for applications that require high speed inner race overrunning in a very compact package. The clutch locks the inner and outer races, through the wedging action of cams, to transmit torque in one direction of rotation and overrun (freewheel) in the opposite direction.

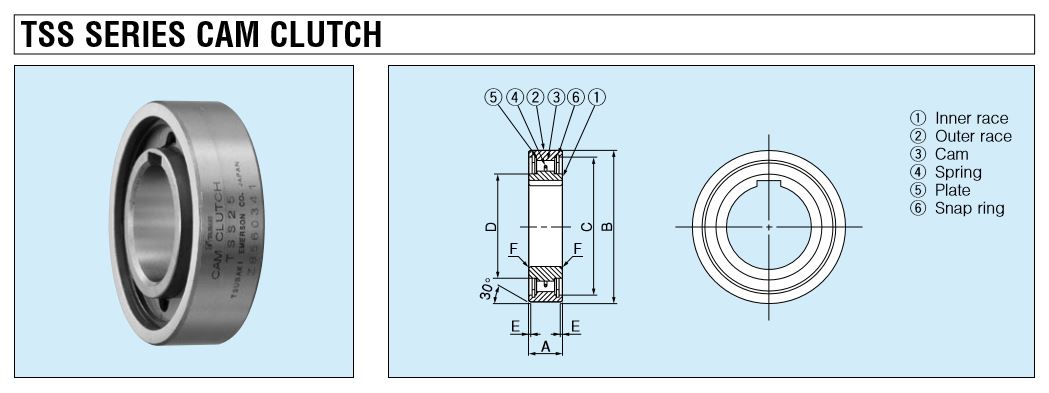

Description of the dimensions 1

Dimensions

Model	Torque Capacity (N·m)	Max. Overrunning Inner Race (r/min)	Max. Overrunning Outer Race (r/min)	Drag Torque (N·m)	Bore Size (H7)	Keyway	A	B	C	D	E	F	Weight (n)
TSS 8	6.7	6000	3000	0.005	8	2×1.0	8	24	22.2	11.4	0.6	0.6	14
TSS10	12	4500	2300	0.007	10	3×1.4	9	30	27	15.6	0.6	0.6	27
TSS12	17	4000	2000	0.009	12	4×1.8	10	32	29.5	18	0.6	0.6	31
TSS15	22	3500	1800	0.01	15	5×1.2	11	35	32	20.6	0.6	0.6	39
TSS20	41	2600	1300	0.01	20	6×1.6	14	47	40	26.7	0.8	0.8	115
TSS25	56	2200	1100	0.02	25	8×2.0	15	52	45	32	0.8	0.8	140
TSS30	105	1800	900	0.03	30	8×2.0	16	62	55	40	0.8	1	215
TSS35	136	1600	800	0.03	35	10×2.4	17	72	63	45	0.8	1	300
TSS40	296	1400	700	0.18	40	12×2.2	18	80	72	50	0.8	1	425
TSS45	347	1300	650	0.21	45	14×2.1	19	85	75.5	57	1.2	1	495
TSS50	403	1200	600	0.22	50	14×2.1	20	90	82	62	1.2	1	545
TSS60	649	910	460	0.33	60	18×2.3	22	110	100	80	1.2	1.5	950
