Description

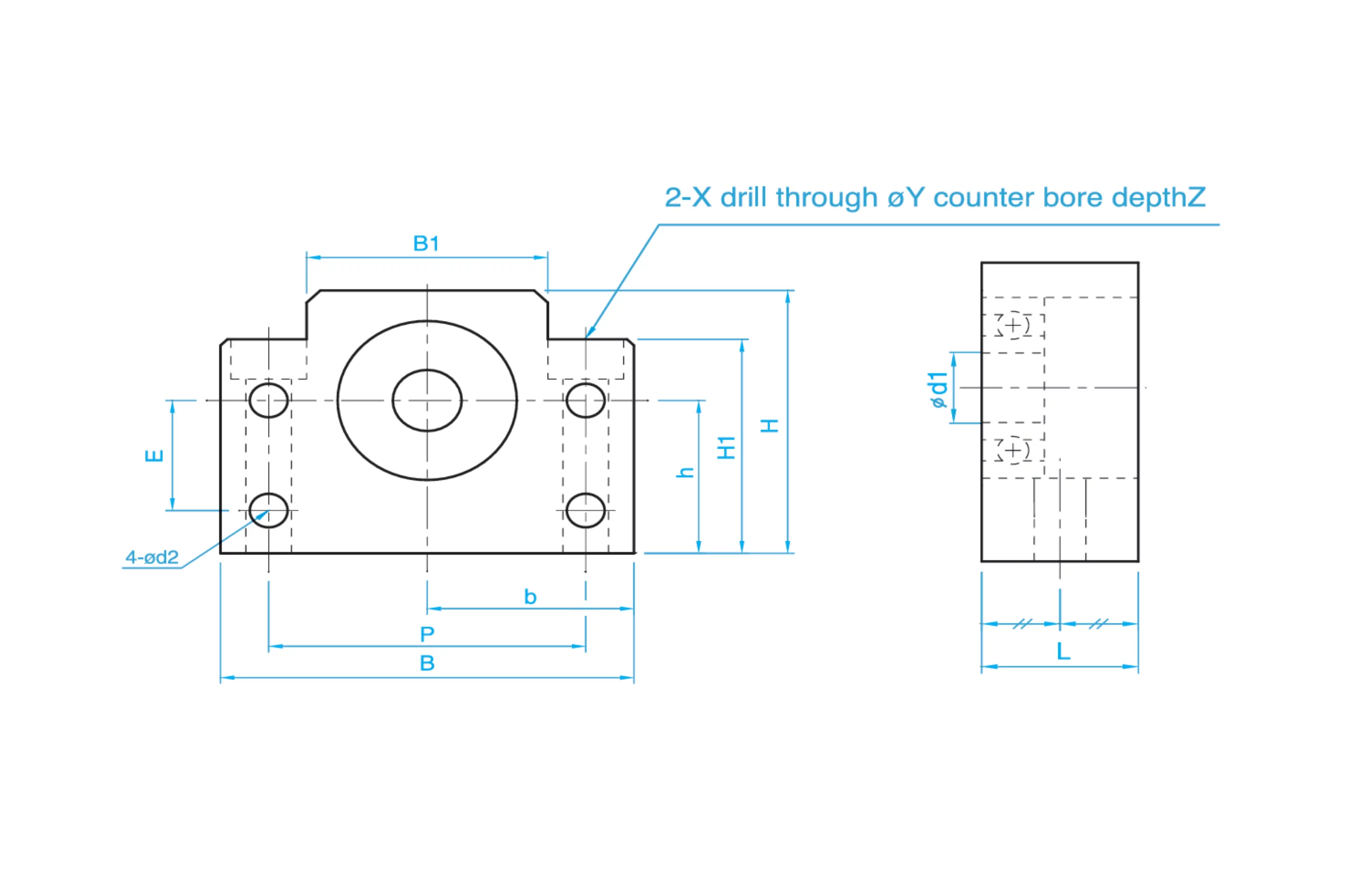

Part No.	d1	L	B	H	b	h	B1	H1	E	P	d2	X	Y	Z
BF-10	8	20	60	39	30	22	34	32.5	15	46	5.5	6.6	10.8	5
BF-12	10	20	60	43	30	25	35	32.5	18	46	5.5	6.6	10.8	6.5
BF-15	15	20	70	48	35	28	40	38	18	54	5.5	6.6	11	6.5
BF-17	17	23	86	64	43	39	50	55	28	68	6.6	9	14	8.5
BF-20	20	26	88	60	44	34	52	50	22	70	6.6	9	14	8.5
BF-25	25	30	106	80	53	48	64	70	33	85	9	11	17.5	11
BF-30	30	32	128	89	64	51	76	78	33	102	11	14	20	13
BF-35	35	32	140	96	70	52	88	79	35	114	11	14	20	13
BF-40	40	37	160	110	80	60	100	90	37	130	14	18	26	17.5

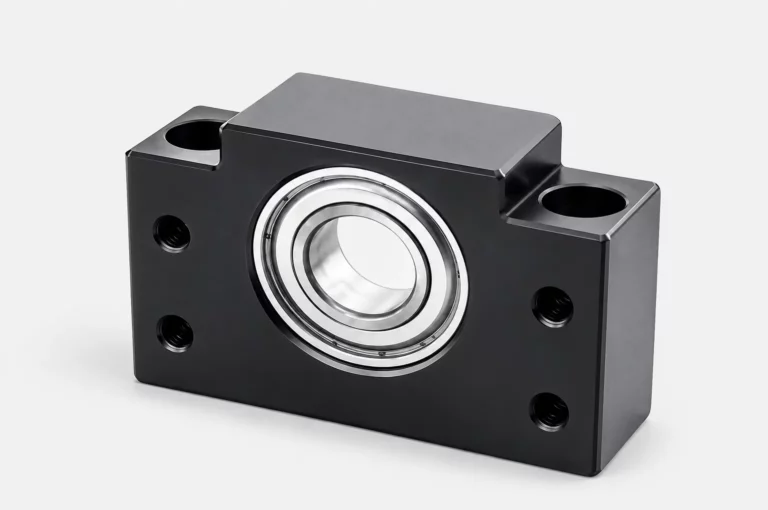

BF Ball Screw Support Unit
