Description

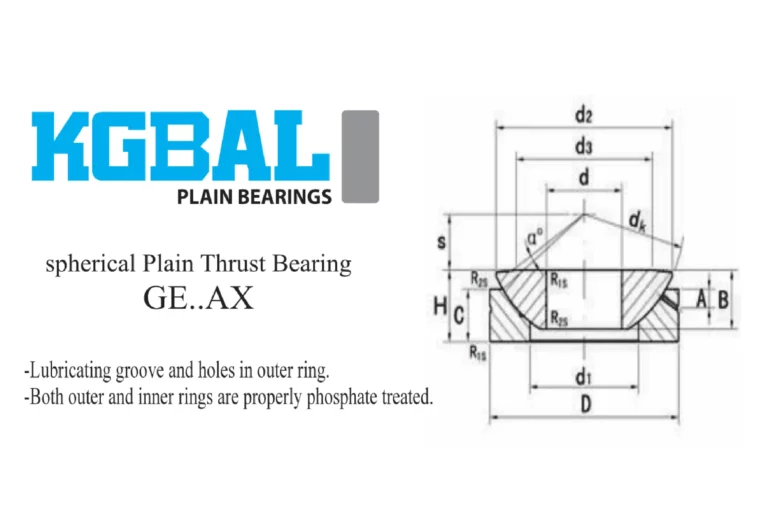

Description of the dimensions 1

Part NO	d (mm)	D (mm)	H (mm)	dk&ZeroWidthSpace; (mm)	d1&ZeroWidthSpace; (mm)	d2&ZeroWidthSpace; (mm)	d3 (mm)	B (mm)	C (mm)	S (mm)	A (mm)	R1s (mm)	R2s (mm)	α (mm)	Load Rating kN dyn C	Load Rating kN stat C0&ZeroWidthSpace;	Weight kg
GE10AX	10	30	9.5	32	16.5	27.5	21	7.9	6	7	3	0.6	0.2	10	24	120	0.04
GE12AX	12	35	13	37	19.5	32	24	9.3	9	8	4	0.6	0.2	9	32.5	163	0.07
GE15AX	15	42	15	45	24	38.9	29	10.7	11	10	5	0.6	0.2	7	52	260	0.12
GE17AX	17	47	16	50	28	43.4	34	11.5	11	11	5	0.6	0.15	6	58.5	300	0.16
GE20AX	20	55	20	60	33.5	50	40	14.3	13	12.5	6	1	0.3	6	75	375	0.25
GE25AX	25	62	22.5	66	34.5	57.5	45	16	17	14	6	1	0.3	7	129	640	0.38
GE30AX	30	75	26	80	44	69	56	18	19.5	17.5	8	1	0.3	6	170	850	0.65
GE35AX	35	90	28	98	52	84	66	22	20	22	8	1	0.3	6	260	1290	1
GE40AX	40	105	32	114	59	98	78	27	22	24.5	9	1	0.3	6	375	1860	1.6
GE45AX	45	120	36.5	130	68	112	89	31	25	27.5	11	1	0.3	6	490	2450	2.4
GE50AX	50	130	42.5	140	69	122.5	98	33.5	32	30	10	1	0.3	5	655	3250	3.3
GE60AX	60	150	45	160	86	140	108	37	33	35	12.5	1	0.3	7	735	3650	4.5
GE70AX	70	160	50	170	95	149.5	121	40	36	35	13.5	1	0.3	6	800	4050	5.5
GE80AX	80	180	50	194	108	168	130	42	36	42.5	14.5	1	0.3	6	1040	5200	7
GE100AX	100	210	59	220	133	195.5	155	50	42	45	15	1	0.3	7	1200	6000	10.5
GE120AX	120	230	64	245	154	214	170	52	45	52.5	16.5	1	0.3	8	1250	6200	13
GE140AX	140	260	72	272	176	244	198	61	50	52.5	23	1.5	0.6	6	1630	8150	18
GE160AX	160	290	77	310	199	272	213	65	52	65	23	1.5	0.6	7	1900	9500	23
GE180AX	180	320	86	335	224	300	240	70	60	67.5	26	1.5	0.6	8	2120	10600	31
GE200AX	200	340	87	358	246	321	265	74	60	70	27	1.5	0.6	8	2360	11800	34

GE-AX-Spherical Plain Thrust Bearing
