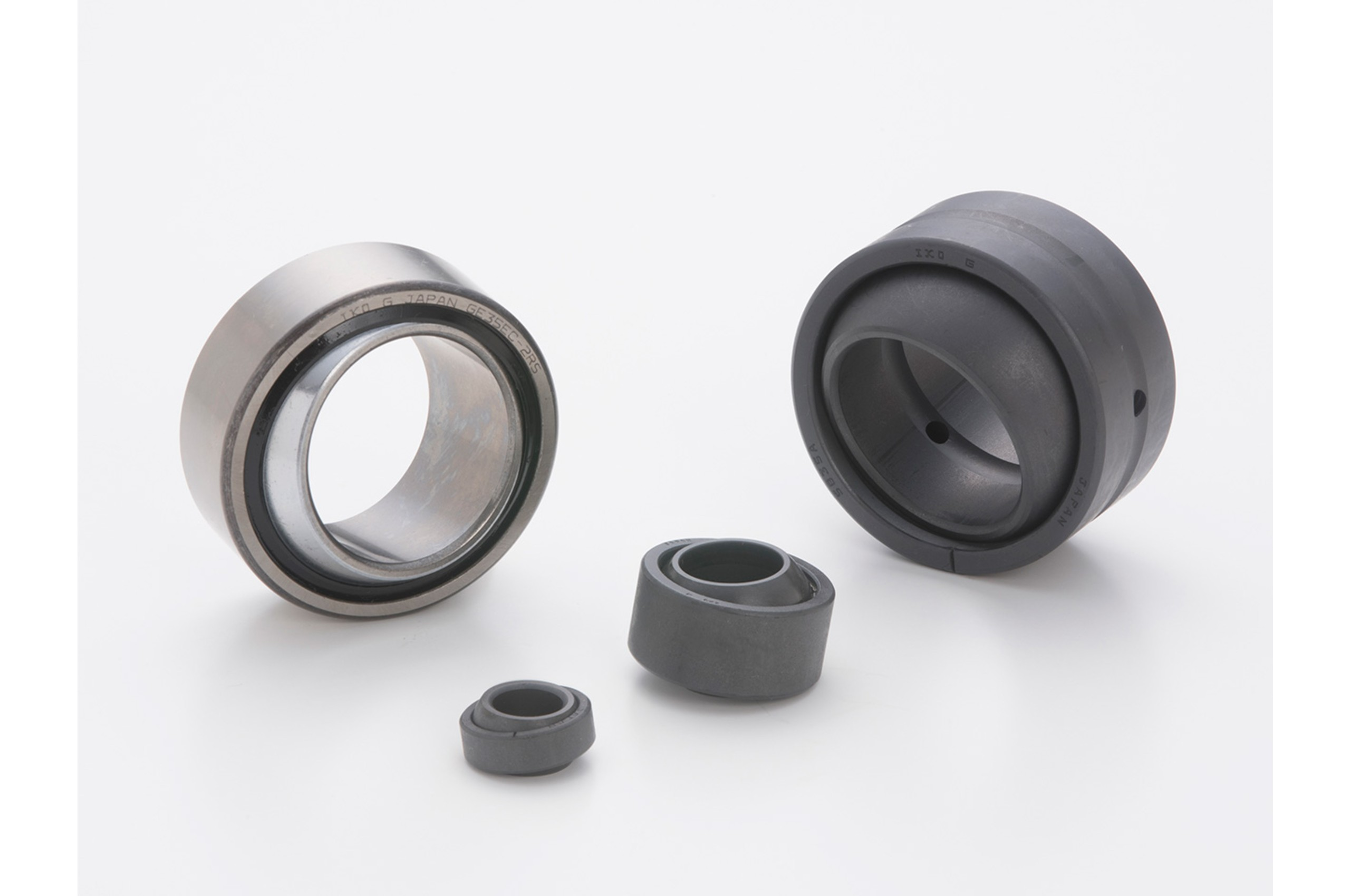

IKO Spherical Bushings are designed to handle complex loads and solve angular motion challenges without the worry of misalignment. The GE-Series Radial Spherical Plain Bearings are steel-on-steel types, ideal for applications subject to heavy alternating and shock loads.
Get a Quote

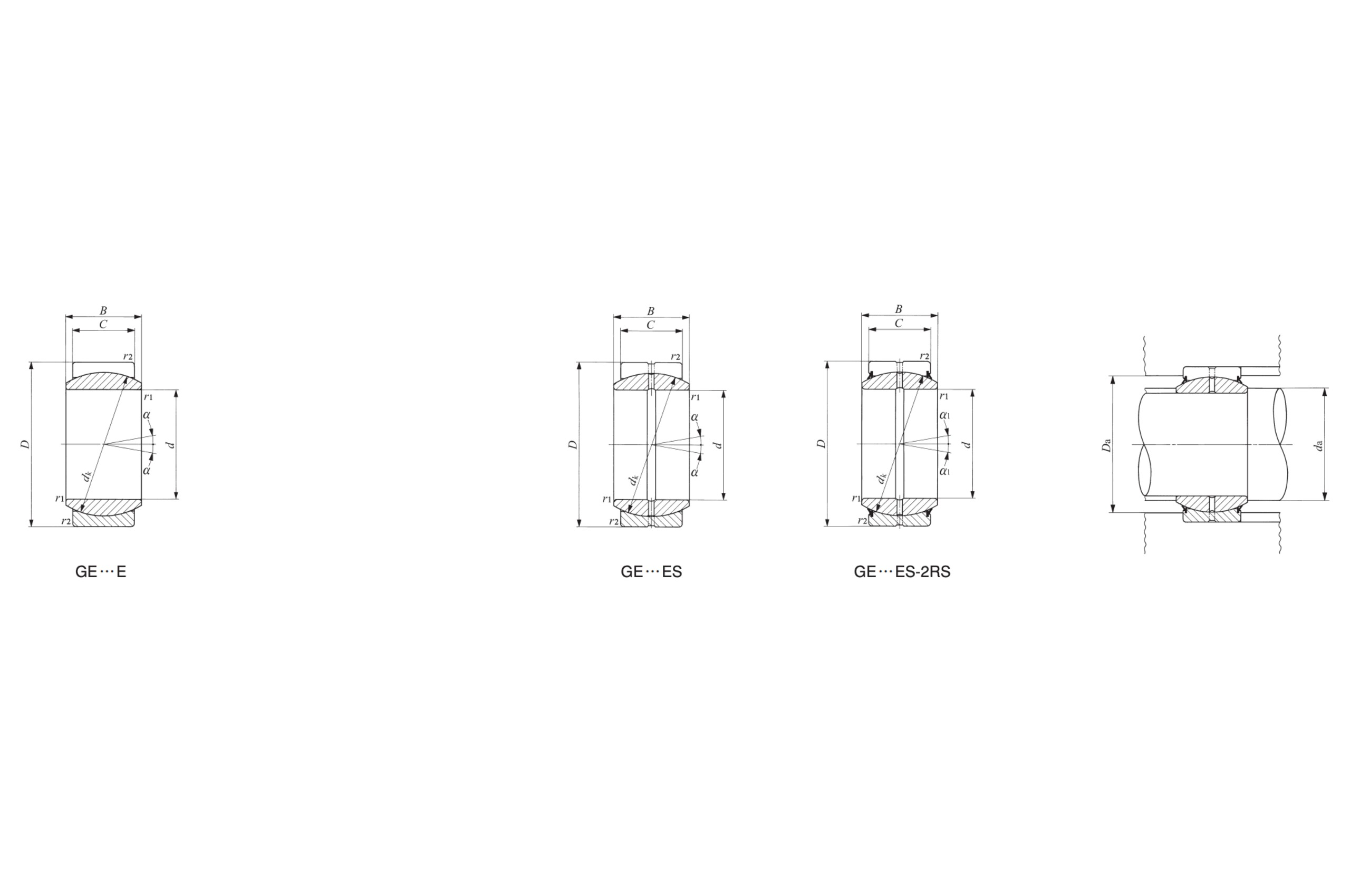

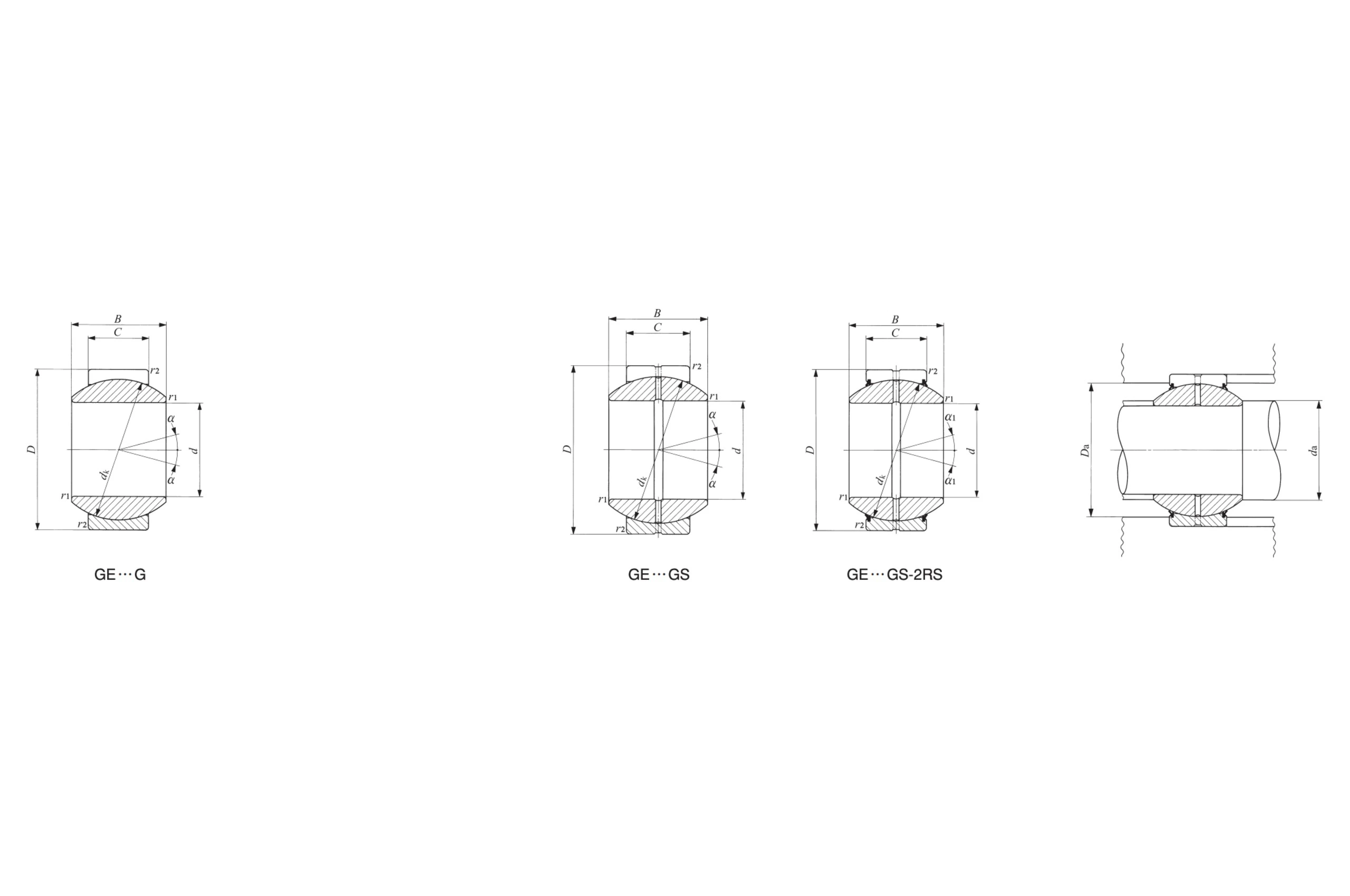

Shaft Dia. (mm) Bearing No. (No Seal) Bearing No. (With Seals) Mass (kg) d D B C dK r1s min r2s min α α1 da min da max Da min Da max Cd (N) Cs (N)
4 GE 4E – 0.003 4 12 5 3 8 0.3 0.3 16 – 6 6 9.5 8 2350 14100
5 GE 5E – 0.004 5 14 6 4 10 0.3 0.3 13 – 7.5 8 11.5 10 3920 23500
6 GE 6E – 0.004 6 14 6 4 10 0.3 0.3 13 – 8 8 11.5 10 3920 23500
8 GE 8E – 0.008 8 16 8 5 13 0.3 0.3 15 – 10 10 13.5 13 6370 38200
10 GE 10E – 0.012 10 19 9 6 16 0.3 0.3 12 – 12.5 13 16.5 15.5 9410 56500
12 GE 12E – 0.017 12 22 10 7 18 0.3 0.3 11 – 14.5 15 19.5 17 12400 74100
15 GE 15ES GE 15ES-2RS 0.032 15 26 12 9 22 0.3 0.3 8 5 17.5 18 23.5 22.5 19400 117000
17 GE 17ES GE 17ES-2RS 0.049 17 30 14 10 25 0.3 0.3 10 7 19.5 20.5 27.5 26 24500 147000
20 GE 20ES GE 20ES-2RS 0.065 20 35 16 12 29 0.3 0.3 9 6 22.5 24 32.5 30.5 34100 205000
25 GE 25ES GE 25ES-2RS 0.115 25 42 20 16 35.5 0.6 0.6 7 4 29 29 37.5 37 55700 334000
30 GE 30ES GE 30ES-2RS 0.16 30 47 22 18 40.7 0.6 0.6 6 4 34 34 42.5 41.5 71800 431000
35 GE 35ES GE 35ES-2RS 0.258 35 55 25 20 47 0.6 0.6 6 4 39.5 39.5 49.5 48 92200 553000
40 GE 40ES GE 40ES-2RS 0.315 40 62 28 22 53 0.6 0.6 7 4 44.5 45 56.5 54.5 114000 686000
45 GE 45ES GE 45ES-2RS 0.413 45 68 32 25 60 0.6 0.6 7 4 49.5 50.5 62.5 60 147000 883000
50 GE 50ES GE 50ES-2RS 0.56 50 75 35 28 66 0.6 0.6 6 4 54.5 56 69.5 66 181000 1090000
60 GE 60ES GE 60ES-2RS 1.1 60 90 44 36 80 1 1 6 3 65.5 66.5 84.5 79 282000 1690000
70 GE 70ES GE 70ES-2RS 1.54 70 105 49 40 92 1 1 6 4 75.5 77.5 99.5 91 361000 2170000
80 GE 80ES GE 80ES-2RS 2.29 80 120 55 45 105 1 1 6 4 85.5 89 114.5 103 463000 2780000
90 GE 90ES GE 90ES-2RS 2.82 90 130 60 50 115 1 1 5 3 95.5 98 124.5 112 564000 3380000
100 GE 100ES GE 100ES-2RS 4.43 100 150 70 55 130 1 1 7 5 105.5 109.5 144.5 127 701000 4210000
110 GE 110ES GE 110ES-2RS 4.94 110 160 70 55 140 1 1 6 4 115.5 121 154.5 138 755000 4530000
120 GE 120ES GE 120ES-2RS 8.12 120 180 85 70 160 1 1 6 4 125.5 135.5 174.5 154 1100000 6590000
140 GE 140ES GE 140ES-2RS 11.4 140 210 90 70 180 1 1 7 5 145.5 155.5 204.5 176 1240000 7410000
160 GE 160ES GE 160ES-2RS 14.4 160 230 105 80 200 1 1 8 6 165.5 170 224.5 198 1570000 9410000
180 GE 180ES GE 180ES-2RS 18.9 180 260 105 80 225 1.1 1.1 6 5 187 199 253 221 1770000 10600000
200 GE 200ES GE 200ES-2RS 28.1 200 290 130 100 250 1.1 1.1 7 6 207 213.5 283 244 2450000 14700000
220 GE 220ES GE 220ES-2RS 36.1 220 320 135 100 275 1.1 1.1 8 6 227 239.5 313 269 2700000 16200000
240 GE 240ES GE 240ES-2RS 40.4 240 340 140 100 300 1.1 1.1 8 6 247 265 333 296 2940000 17700000
260 GE 260ES GE 260ES-2RS 52 260 370 150 110 325 1.1 1.1 7 6 267 288 363 320 3510000 21000000
280 GE 280ES GE 280ES-2RS 66 280 400 155 120 350 1.1 1.1 6 5 287 313.5 393 345 4120000 24700000
300 GE 300ES GE 300ES-2RS 76 300 430 165 120 375 1.1 1.1 7 6 307 336.5 423 371 4410000 26500000
6 GE 6G – 0.01 6 16 9 5 13 0.3 0.3 21 – 8.5 9 13.5 13 6370 38200
8 GE 8G – 0.015 8 19 11 6 16 0.3 0.3 21 – 10.5 11.5 16.5 15.5 9410 56500
4 GE 10G – 0.022 10 22 12 7 18 0.3 0.3 18 – 12.5 13 19.5 17 12400 74100
12 GE 12G – 0.041 12 26 15 9 22 0.3 0.3 18 – 14.5 16 23.5 21 19400 117000
15 GE 15GS GE 15GS-2RS 0.059 15 30 16 10 25 0.3 0.3 16 13 17.5 19 27.5 26 24500 147000
17 GE 17GS GE 17GS-2RS 0.083 17 35 20 12 29 0.3 0.3 19 16 19.5 21 32.5 30.5 34100 205000
20 GE 20GS GE 20GS-2RS 0.155 20 42 25 16 35.5 0.3 0.6 17 16 22.5 25 37.5 37 55700 334000
25 GE 25GS GE 25GS-2RS 0.215 25 47 28 18 40.7 0.6 0.6 17 15 29.5 29.5 42.5 41.5 71800 431000
30 GE 30GS GE 30GS-2RS 0.33 30 55 32 20 47 0.6 1 17 16 34 34 49.5 48 92200 553000
35 GE 35GS GE 35GS-2RS 0.4 35 62 35 22 53 0.6 1 16 15 39.5 39.5 56.5 54.5 114000 686000
40 GE 40GS GE 40GS-2RS 0.515 40 68 40 25 60 0.6 1 17 14 44.5 44.5 62.5 60 147000 883000
45 GE 45GS GE 45GS-2RS 0.66 45 75 43 28 66 0.6 1 15 13 49.5 50 69.5 66 181000 1090000
50 GE 50GS GE 50GS-2RS 1.5 50 90 56 36 80 0.6 1 17 16 54.5 57 84.5 79 282000 1690000
60 GE 60GS GE 60GS-2RS 2.05 60 105 63 40 92 1 1 17 15 65.5 67 99.5 91 361000 2170000
70 GE 70GS GE 70GS-2RS 3 70 120 70 45 105 1 1 16 14 75.5 78 114.5 103 463000 2780000
80 GE 80GS GE 80GS-2RS 3.6 80 130 75 50 115 1 1 14 13 85.5 87 124.5 112 564000 3380000
90 GE 90GS GE 90GS-2RS 5.41 90 150 85 55 130 1 1 15 14 95.5 98 144.5 127 701000 4210000
100 GE 100GS GE 100GS-2RS 6.15 100 160 85 55 140 1 1 14 12 105.5 111 154.5 138 755000 4530000
110 GE 110GS GE 110GS-2RS 9.7 110 180 100 70 160 1 1 12 14 115.5 124.5 174.5 154 1100000 6590000
120 GE 120GS GE 120GS-2RS 15.5 120 210 115 70 180 1 1 16 15 125.5 138.5 204.5 176 1240000 7410000
140 GE 140GS GE 140GS-2RS 19.2 140 230 130 80 200 1 1 16 15 145.5 152 224.5 195 1570000 9410000
160 GE 160GS GE 160GS-2RS 25.4 160 260 135 80 225 1 1.1 16 14 165.5 180 253 221 1770000 10600000
180 GE 180GS GE 180GS-2RS 34.7 180 290 155 100 250 1.1 1.1 15 13 187 196 283 244 2450000 14700000
200 GE 200GS GE 200GS-2RS 43.8 200 320 165 100 275 1.1 1.1 15 14 207 220 313 269 2700000 16200000
220 GE 220GS GE 220GS-2RS 51.3 220 340 175 100 300 1.1 1.1 15 14 227 243.5 333 296 2940000 17700000
240 GE 240GS GE 240GS-2RS 66.1 240 370 190 110 325 1.1 1.1 15 14 247 263.5 363 320 3510000 21000000
260 GE 260GS GE 260GS-2RS 81.8 260 400 205 120 350 1.1 1.1 15 14 267 283.5 393 345 4120000 24700000
280 GE 280GS GE 280GS-2RS 97.4 280 430 210 120 375 1.1 1.1 15 14 287 310.5 423 371 4410000 26500000
15 GE 15EC – 0.032 15 26 12 9 22 0.3 0.3 8 – 17.5 18 23.5 21.5 19400 48500
17 GE 17EC – 0.049 17 30 14 10 25 0.3 0.3 10 – 19.5 20.5 27.5 24.5 24500 61300
20 GE 20EC – 0.065 20 35 16 12 29 0.3 0.3 9 – 22.5 24 32.5 28 34100 85000
25 GE 25EC – 0.115 25 42 20 16 35.5 0.6 0.6 7 – 29 29 37.5 34 55700 139000
30 GE 30EC GE 30EC-2RS 0.16 30 47 22 18 40.7 0.6 0.6 6 4 34 34 42.5 41.5 71800 180000
35 – GE 35EC-2RS 0.258 35 55 25 20 47 0.6 1 6 4 39.5 39.5 49.5 48 92200 230000
40 – GE 40EC-2RS 0.315 40 62 28 22 53 0.6 1 6 4 44.5 44.5 56.5 54.5 114000 286000
45 – GE 45EC-2RS 0.413 45 68 32 25 60 0.6 1 7 4 49.5 50.5 62.5 60 147000 368000
50 – GE 50EC-2RS 0.56 50 75 35 28 66 0.6 1 6 4 54.5 56 69.5 66 181000 453000
60 – GE 60EC-2RS 1.1 60 90 44 36 80 1 1 6 3 65.5 66.5 84.5 79 282000 706000
70 – GE 70EC-2RS 1.54 70 105 49 40 92 1 1 – 4 75.5 77.5 99.5 91 361000 902000
