The HSAC GHH-CA (Flange Type, Medium Load) and GHH-HA (Flange Type, Heavy Load) series represent high-assembly, four-row ball-type linear guideways designed for applications requiring high rigidity, heavy load capacity, and precise motion.
These guideways utilize a 45° contact angle in an O-arrangement, allowing them to handle extremely high loads in all four primary directions (radial, reverse radial, and both lateral directions) with minimal friction. (Hiwin Interchangable)

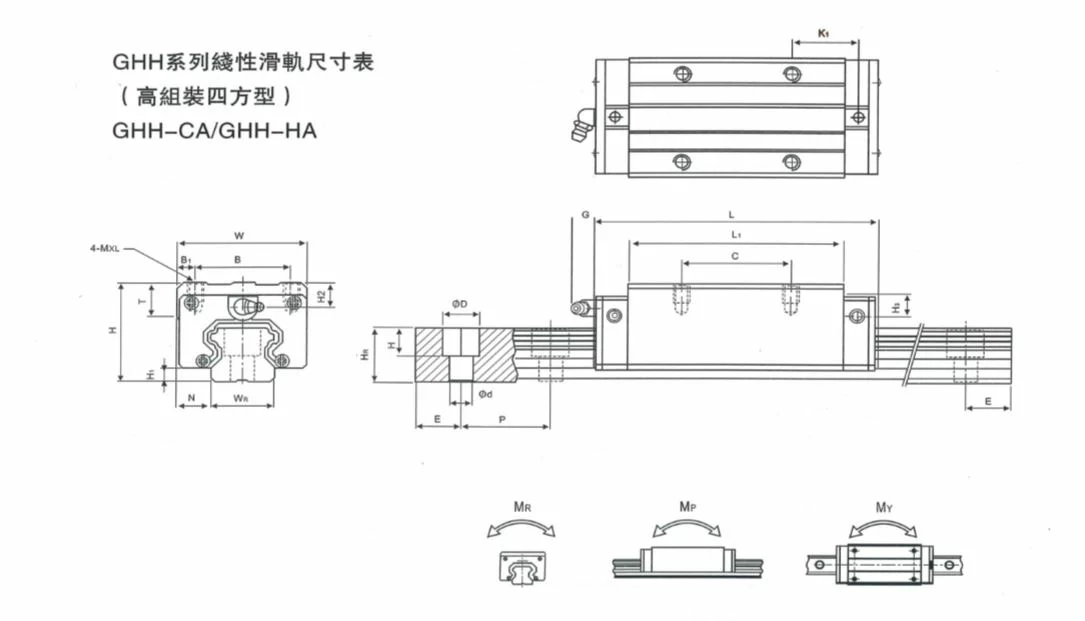

| Model | Component Size (mm) | Slider Size (mm) | SLIDE RAIL SIZE (MM) | Fixed Screw Of Slide Rail Bolt (mm) | Basic Dynamic Rating C(KN) | Basic Static Rating Co(KN) | Allowable Static Moment | WEIGHT | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | H1 | N | W | B | B1 | C | L1 | L | K1 | G | 4-MXL | T2 | H2 | H3 | WR | HR | D | h | d | P | E | MR kN-m | MP kN-m | MY kN-m | Slider kg | Slide kg/m | ||||
| GHH15CA | 28 | 4.3 | 9.5 | 34 | 26 | 4 | 26 | 39.4 | 61.4 | 10 | 5.3 | M4X5 | 6 | 7.95 | 7.7 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4X16 | 11.38 | 25.31 | 0.17 | 0.15 | 0.15 | 0.18 | 1.45 |
| GHH20CA | 30 | 4.6 | 12 | 44 | 32 | 6 | 36 | 50.5 | 77.5 | 12.25 | 12 | M5X6 | 8 | 6 | 7 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5X16 | 17.75 | 37.84 | 0.38 | 0.27 | 0.27 | 0.3 | 2.21 |
| GHH20HA | 30 | 4.6 | 12 | 44 | 32 | 6 | 50 | 65.2 | 92.2 | 12.6 | 12 | M5X6 | 8 | 6 | 7 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5X16 | 21.18 | 48.84 | 0.48 | 0.47 | 0.47 | 0.39 | 2.21 |
| GHH25CA | 40 | 5.5 | 12.5 | 48 | 35 | 6.5 | 35 | 58 | 64 | 16.8 | 12 | M6X8 | 8 | 10 | 13 | 23 | 22 | 11 | 9 | 7 | 60 | 20 | M6X20 | 26.48 | 56.19 | 0.64 | 0.51 | 0.51 | 0.51 | 3.21 |
| GHH25HA | 40 | 5.5 | 12.5 | 48 | 35 | 6.5 | 50 | 78.6 | 104.6 | 19.6 | 12 | M6X8 | 8 | 10 | 13 | 23 | 22 | 11 | 9 | 7 | 60 | 20 | M6X20 | 32.75 | 76 | 0.87 | 0.88 | 0.88 | 0.69 | 3.21 |
| GHH30CA | 45 | 6 | 16 | 60 | 40 | 10 | 40 | 70 | 97.4 | 20.25 | 12 | M8X10 | 8.5 | 9.5 | 13.8 | 28 | 26 | 14 | 12 | 9 | 80 | 20 | M8X25 | 38.74 | 83.06 | 1.06 | 0.85 | 0.85 | 0.88 | 4.47 |
| GHH30HA | 45 | 6 | 16 | 60 | 40 | 10 | 60 | 93 | 120.4 | 21.75 | 12 | M8X10 | 8.5 | 9.5 | 13.8 | 28 | 26 | 14 | 12 | 9 | 80 | 20 | M8X25 | 47.27 | 110.13 | 1.4 | 1.47 | 1.47 | 1.16 | 4.47 |
| GHH35CA | 55 | 7.5 | 18 | 70 | 50 | 10 | 50 | 80 | 112.4 | 20.6 | 12 | M8X12 | 10.2 | 16 | 19.6 | 34 | 29 | 14 | 12 | 9 | 80 | 20 | M8X25 | 49.52 | 102.87 | 1.73 | 1.2 | 1.2 | 1.45 | 6.3 |
| GHH35HA | 55 | 7.5 | 18 | 70 | 50 | 10 | 72 | 105.8 | 138.2 | 22.5 | 12 | M8X12 | 10.2 | 16 | 19.6 | 34 | 29 | 14 | 12 | 9 | 80 | 20 | M8X25 | 60.21 | 136.31 | 2.29 | 2.08 | 2.08 | 1.92 | 6.3 |
| GHH45CA | 70 | 9.5 | 20.5 | 86 | 60 | 13 | 60 | 97 | 139.4 | 23 | 12.9 | M8X17 | 16 | 18.5 | 30.5 | 45 | 38 | 20 | 17 | 14 | 105 | 22.5 | M12X35 | 77.57 | 155.93 | 3.01 | 2.35 | 2.35 | 2.73 | 10.41 |
| GHH45HA | 70 | 9.5 | 20.5 | 86 | 60 | 13 | 80 | 128.8 | 171.2 | 28.9 | 12.9 | M8X17 | 16 | 18.5 | 30.5 | 45 | 38 | 20 | 17 | 14 | 105 | 22.5 | M12X35 | 94.54 | 207.12 | 4 | 4.07 | 4.07 | 3.61 | 10.41 |
