The KGBAL GIHR-K…DO series rod end is a self-aligning bearing specifically designed for use in hydraulic cylinders and linkages where high dynamic and static loads are present. This rod end requires maintenance (relubrication) to ensure optimal performance and long service life.

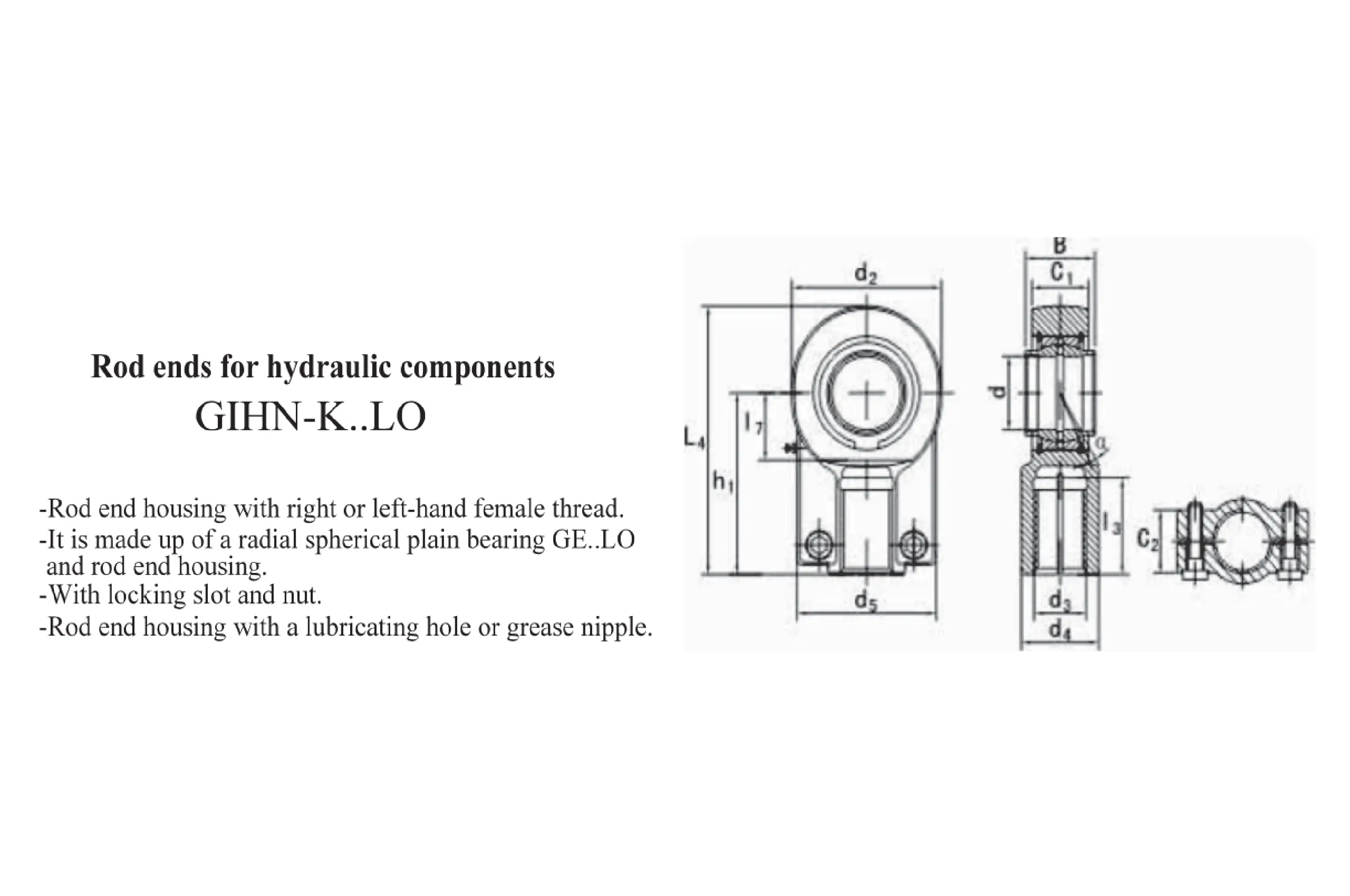

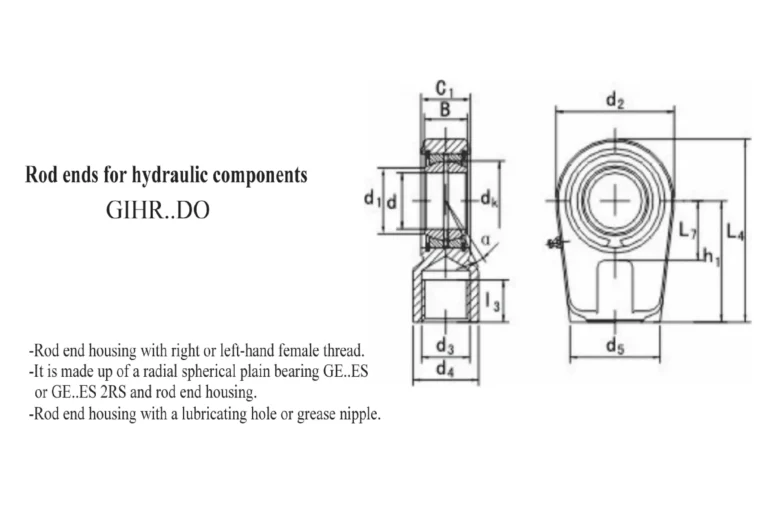

Description of the dimensions 1
| Part NO | d (mm) | D3 6H (mm) | d4​ (mm) | L3​ (mm) | B (mm) | C1​ (mm) | d2​ (mm) | L7​ (mm) | h1​ (mm) | L4 (mm) | d5 (mm) | d1 (mm) | dk (mm) | α (mm) | Load Rating kN dyn C | Load Rating kN stat C0​ | Weight kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GIHR20DO | 20 | M16x1.5 | 25 | 17 | 16 | 19 | 56 | 25 | 50 | 80 | 46 | 24.2 | 29 | 9 | 30 | 72 | 0.43 |
| GIHR25DO | 25 | M16x1.5 | 25 | 17 | 20 | 23 | 56 | 28 | 50 | 80 | 46 | 29.3 | 35.5 | 7 | 48 | 72 | 0.48 |
| GIHR30DO | 30 | M22x1.5 | 32 | 23 | 22 | 28 | 64 | 30 | 60 | 94 | 50 | 34.2 | 40.7 | 6 | 62 | 106 | 0.74 |
| GIHR35DO | 35 | M28x1.5 | 40 | 29 | 25 | 30 | 78 | 38 | 70 | 112 | 66 | 39.8 | 47 | 6 | 80 | 153 | 1.2 |
| GIHR40DO | 40 | M35x1.5 | 49 | 36 | 28 | 35 | 94 | 45 | 85 | 135 | 76 | 45 | 53 | 7 | 100 | 250 | 2 |
| GIHR50DO | 50 | M45x1.5 | 61 | 46 | 35 | 40 | 116 | 55 | 105 | 168 | 90 | 55.9 | 66 | 6 | 156 | 365 | 3.8 |
| GIHR60DO | 60 | M58x1.5 | 75 | 59 | 44 | 50 | 130 | 65 | 130 | 200 | 120 | 66.8 | 80 | 6 | 245 | 400 | 5.4 |
| GIHR70DO | 70 | M65x1.5 | 86 | 66 | 49 | 55 | 154 | 75 | 150 | 232 | 130 | 77.9 | 92 | 6 | 315 | 540 | 8.5 |
| GIHR80DO | 80 | M80x2.0 | 105 | 81 | 55 | 60 | 176 | 80 | 170 | 265 | 160 | 89.4 | 105 | 6 | 400 | 670 | 12 |
| GIHR90DO | 90 | M100x2.0 | 124 | 101 | 60 | 65 | 206 | 90 | 210 | 323 | 180 | 98.1 | 115 | 5 | 490 | 980 | 21.5 |
| GIHR100DO | 100 | M110x2.0 | 138 | 111 | 70 | 70 | 231 | 105 | 235 | 360 | 200 | 109.5 | 130 | 7 | 610 | 1120 | 27.5 |
| GIHR110DO | 110 | M120x3.0 | 152 | 125 | 70 | 80 | 266 | 115 | 265 | 407.5 | 220 | 121.2 | 140 | 6 | 655 | 1700 | 40.5 |
| GIHR120DO | 120 | M130x3.0 | 172 | 135 | 85 | 90 | 340 | 140 | 310 | 490 | 257 | 135.5 | 160 | 6 | 950 | 2900 | 76 |
