The KOLMB LM L Linear Bush Bearing (Long Type) is a high-precision linear motion system designed for superior performance and extended travel in industrial machinery. These bearings are specifically engineered for applications requiring a longer stroke and increased moment load capacity compared to the standard type.

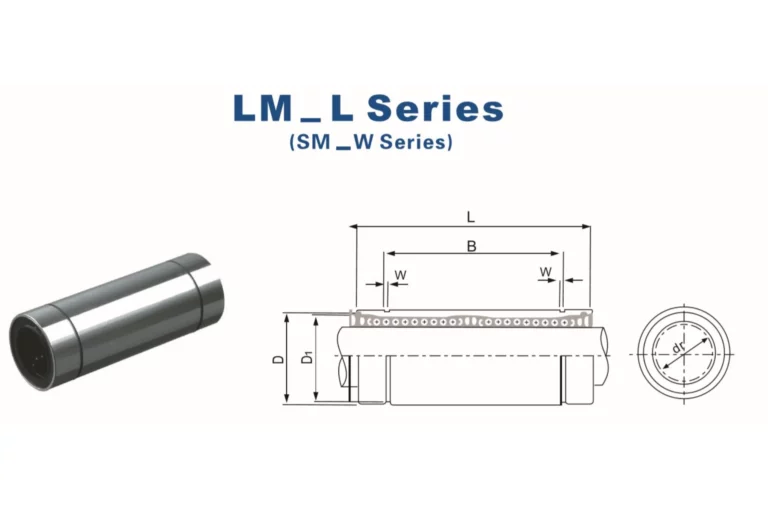

Description of the dimensions 1
Get a Quote
| Seal Type | dr (mm) | D (mm) | L (mm) | B (mm) | W (mm) | DI (mm) | Basic Load Rating C N | Basic Load Rating Co N | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| LM6LUU | 6 | 12 | 35 | 27 | 1.1 | 11.5 | 323 | 530 | 16 |
| LM8 LUU | 8 | 15 | 45 | 35 | 1.1 | 14.3 | 431 | 784 | 31 |
| LM10LUU | 10 | 19 | 55 | 44 | 1.3 | 18 | 588 | 1100 | 62 |
| LM12LUU | 12 | 21 | 57 | 46 | 1.3 | 20 | 813 | 1570 | 80 |
| LM13LUU | 13 | 23 | 61 | 46 | 1.3 | 22 | 813 | 1570 | 90 |
| LM16LUU | 16 | 28 | 70 | 53 | 1.6 | 27 | 1230 | 2350 | 145 |
| LM20LUU | 20 | 32 | 80 | 61 | 1.6 | 30.5 | 1400 | 2740 | 180 |
| LM25LUU | 25 | 40 | 112 | 82 | 1.85 | 38 | 1560 | 3140 | 440 |
| LM30LUU | 30 | 45 | 123 | 89 | 1.85 | 43 | 2490 | 5490 | 580 |
| LM35LUU | 35 | 52 | 135 | 99 | 2.1 | 49 | 2650 | 6270 | 795 |
| LM40LUU | 40 | 60 | 151 | 121 | 2.1 | 57 | 3430 | 8040 | 1170 |
| LM5OLUU | 50 | 80 | 192 | 148 | 2.6 | 76.5 | 6080 | 15900 | 3100 |
| LM60LUU | 60 | 90 | 209 | 170 | 3.15 | 86.5 | 7550 | 20000 | 3500 |
